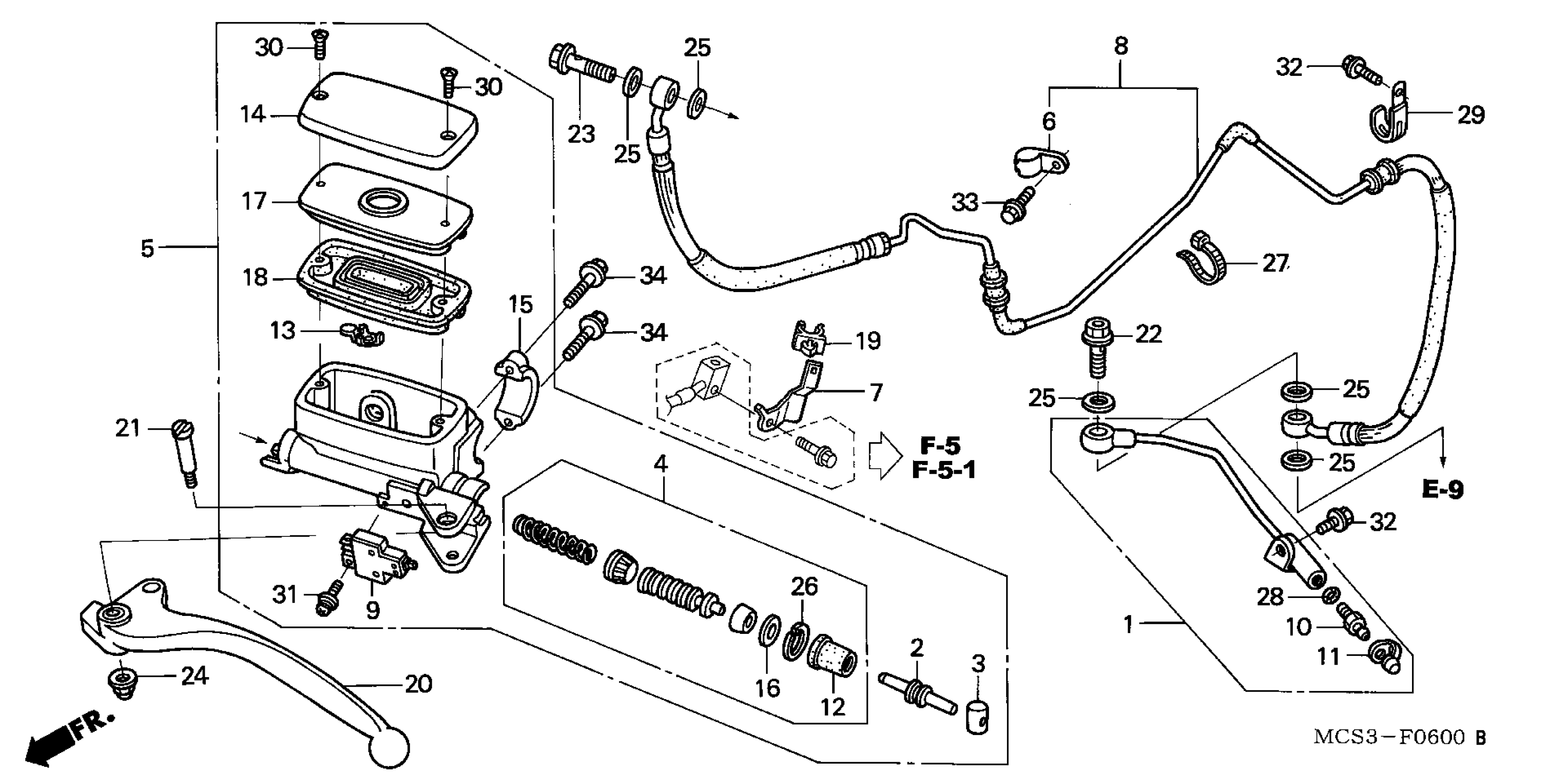

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

PIPE ASSY., BLEEDER

22865-MCS-G00

$58.51

2

ROD, PUSH

22884-MB0-006

$18.97

3

BUSH

22885-MB0-006

$11.88

4

PISTON SET, MASTER

22886-MCS-G01

$58.71

5

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

22890-MCS-305

$363.62

5

MASTER CYLINDER SUB-ASSY., CLUTCH (COO) This part replaces 22890-MCS-761.

22890-MCS-305

$363.62

6

CLAMP A, CLUTCH PIPE

22891-MCS-G00

$3.74

7

CLAMP C, CLUTCH PIPE

22893-MCS-G01

$9.76

8

PIPE, CLUTCH

22900-MCS-G02

Unavailable

9

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

10

SCREW, BLEEDER

43352-MG9-006

$5.03

11

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

Unavailable

11

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

Unavailable

11

CAP, BLEEDER

43353-461-771

Unavailable

12

BOOT

45504-410-003

$11.17

13

PROTECTOR

45512-MA6-006

$4.09

14

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$28.10

15

HOLDER, MASTER CYLINDER

45517-MCS-761

$10.54

16

PLATE, STOPPER

45518-MB0-006

$1.79

17

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

18

DIAPHRAGM

45520-MM5-006

$13.87

19

CLIP, THROTTLE WIRE

17938-SE0-941

Unavailable

20

LEVER, L. HANDLE (COO) This part replaces 53178-MCS-G01.

53178-MCS-305

$27.21

20

LEVER, L. HANDLE (COO)

53178-MCS-305

$27.21

21

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

22

BOLT, OIL (10X34)

90145-MR8-014

$6.72

23

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

24

NUT, CAP (6MM)

90201-415-000

Unavailable

25

WASHER, OIL BOLT

90545-300-000

$5.79

26

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

27

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

28

O-RING

91355-MG9-006

$3.00

29

CLIP, CORD

91405-943-000

$3.15

30

SCREW, FLAT

90158-MT7-000

$1.99

31

SCREW-WASHER (4X12)

93893-04012-07

$1.32

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

32

BOLT, FLANGE (6X10)

96001-06010-00

$1.60

33

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

34

BOLT, FLANGE (6X22) This part replaces 90010-GHB-660.

96001-06022-00

$1.15

34

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
