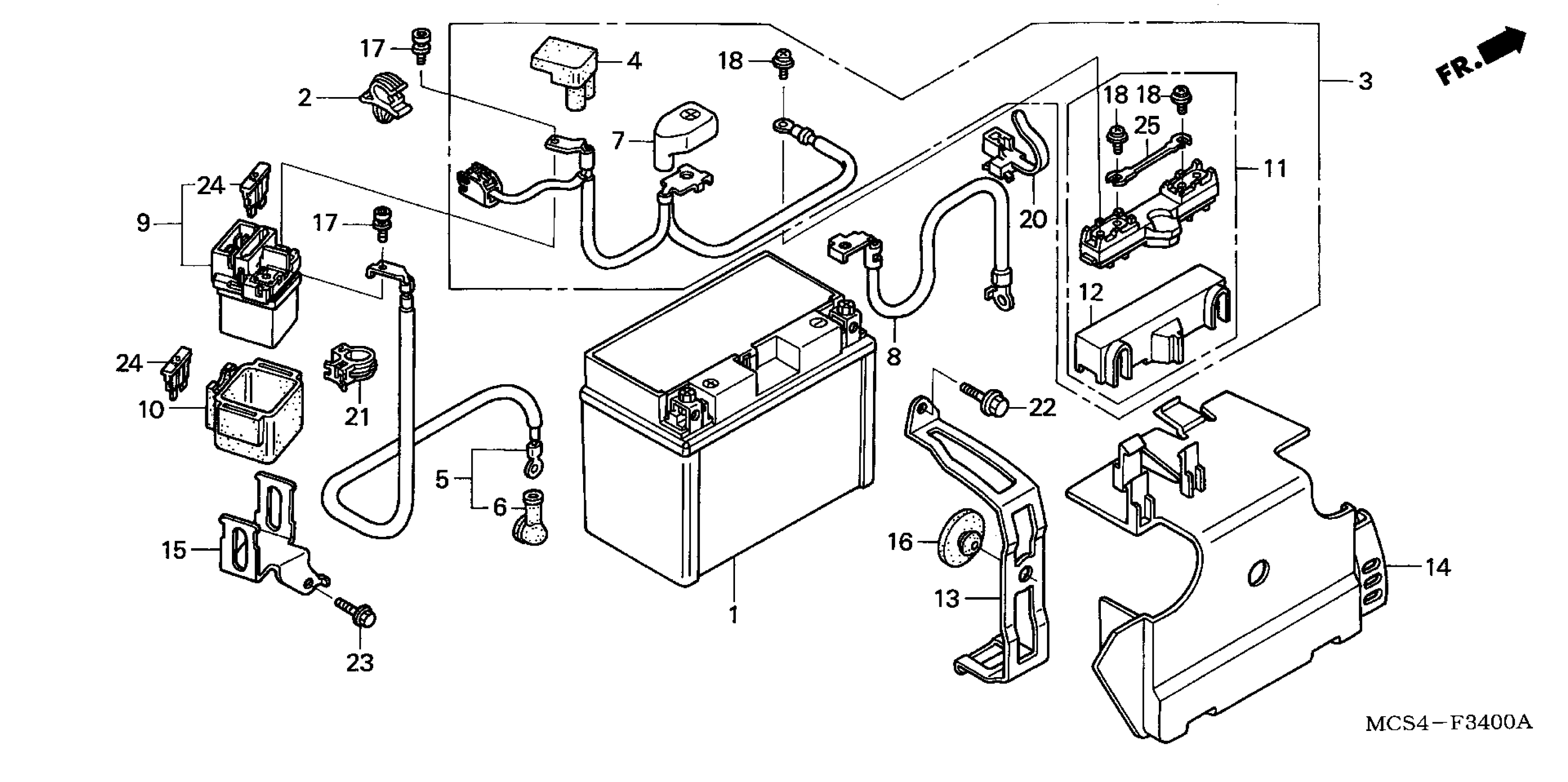

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 BATTERY Diagram

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$196.34

CLIP B, HARNESS

32172-GJ1-003

$3.73

CABLE, STARTER BATTERY

32401-MCS-640

Unavailable

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$6.39

COVER, STARTER MAGNETIC TERMINAL

32406-MT4-010

$6.39

CABLE, STARTER MOTOR

32410-MCS-G00

$33.15

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY TERMINAL

32414-MCF-000

$6.48

CABLE, BATTERY GROUND

32601-MCS-G00

$23.43

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$78.00

RUBBER, SHOCK

35856-MBG-003

$9.11

BOX ASSY., REVERSE FUSE

38260-MN5-003

$26.62

COVER, FUSE BOX

38265-MN5-003

$6.34

BAND, BATTERY

50320-MCS-G00

$9.00

COVER, BATTERY

80108-MCS-G00

Unavailable

BRACKET, STARTER MAGNETIC SWITCH

80114-MCS-G00

$5.36

RUBBER, BATTERY BOX

83618-323-000

$2.47

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

FUSE, BLADE (30A)

98200-33000

$1.49

FUSE (65A)

98200-66500

$2.30
