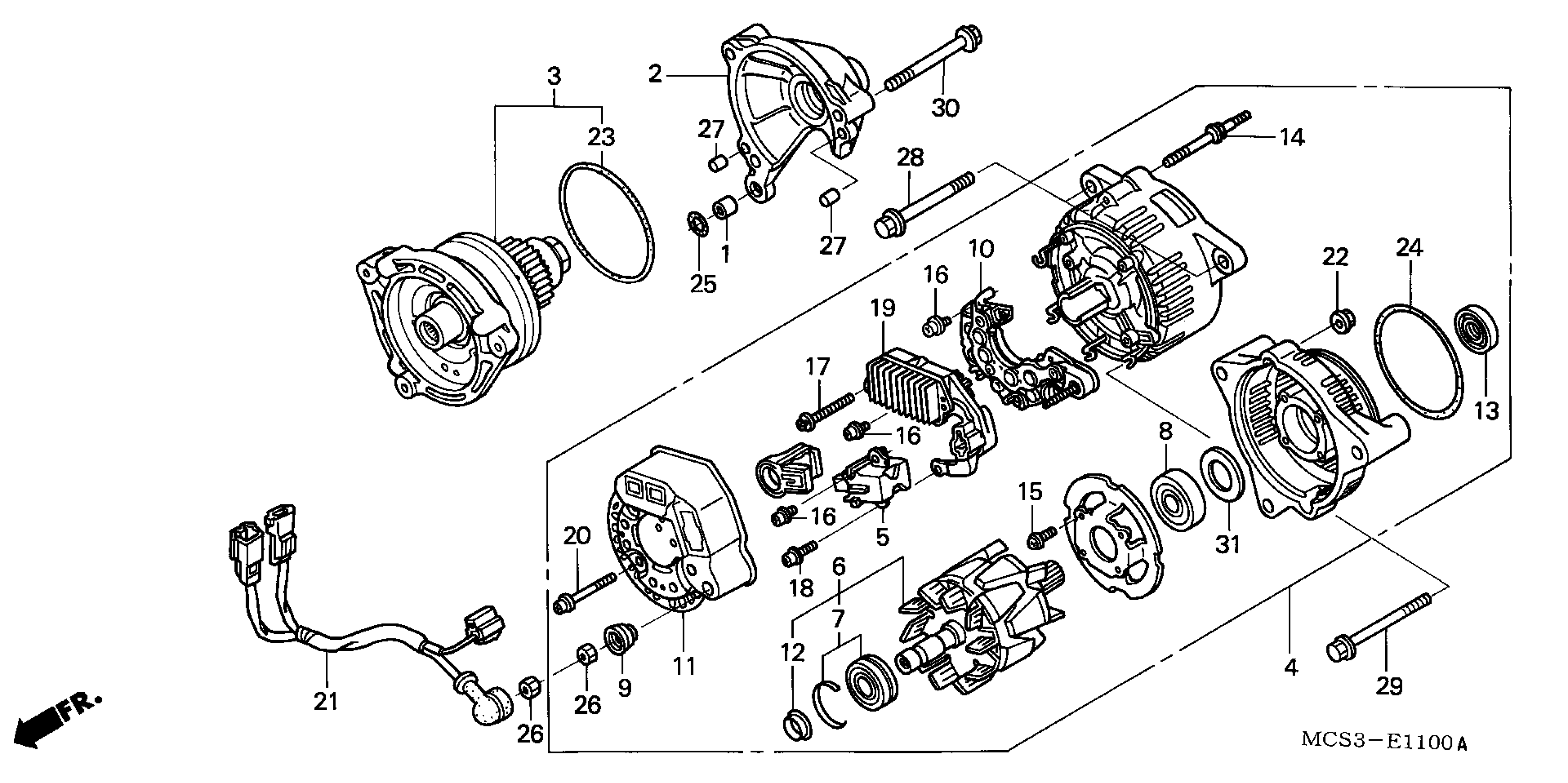

Honda ST1300A (06) ST1300, JPN, VIN# JH2SC510-6M400001 ALTERNATOR Diagram

#

Description
Price

1

ORIFICE (1.2MM)

11104-MCS-000

$2.21

2

HOLDER, ALTERNATOR BEARING

11203-MCS-000

$75.97

3

GEAR ASSY., ALTERNATOR DRIVEN

13430-MCS-020

$407.46

4

ALTERNATOR ASSY. This part replaces 31100-MCS-003.

31100-MCS-013

$876.81

4

ALTERNATOR ASSY.

31100-MCS-013

$876.81

5

HOLDER ASSY., BRUSH

31105-MAJ-G41

$38.85

6

ROTOR ASSY.

31110-MCS-003

$376.10

7

BEARING, RR.

31111-MAJ-G41

$26.78

8

BEARING, FR. This part replaces 31114-MCS-003.

31114-MCS-013

$10.78

8

BEARING, FR.

31114-MCS-013

$10.78

9

BUSH, INSULATION

31119-MAJ-G41

$6.72

10

RECTIFIER ASSY.

31127-MCS-003

$205.50

11

COVER, RR. END

31135-MAJ-G41

$22.49

12

COVER, BEARING

31138-PD1-004

$9.68

13

OIL SEAL

31141-MCS-003

$5.99

14

BOLT, STUD

31145-PE9-941

$5.78

15

SCREW

31146-MAJ-G41

$2.96

16

SCREW-WASHER

31147-PT0-003

$3.81

17

SCREW-WASHER (4X25)

31148-PD1-004

$3.16

18

SCREW

31149-PZ1-003

$1.79

19

REGULATOR ASSY.

31150-PZ3-003

$303.15

20

BOLT

31153-PZ1-003

$1.94

21

SUB-HARNESS, ALTERNATOR

32130-MCS-000

$22.38

22

NUT-WASHER (5MM)

90231-PD1-014

$2.56

23

O-RING (95.5X2.4)

91303-MCS-003

$5.35

24

O-RING

91304-MAJ-G41

$6.31

25

O-RING (9.8X2.4)

91305-422-000

$2.40

26

NUT, HEX. (6MM)

94001-06080-0S

$1.21

27

PIN B, DOWEL (8X10)

94302-08100

$2.62

28

BOLT, FLANGE (8X65)

95701-08065-00

$1.59

29

BOLT, FLANGE (8X85)

95701-08085-00

$2.41

30

BOLT, FLANGE (8X90)

95701-08090-00

$3.79

31

COVER, BEARING

31116-MCS-003

$9.90
