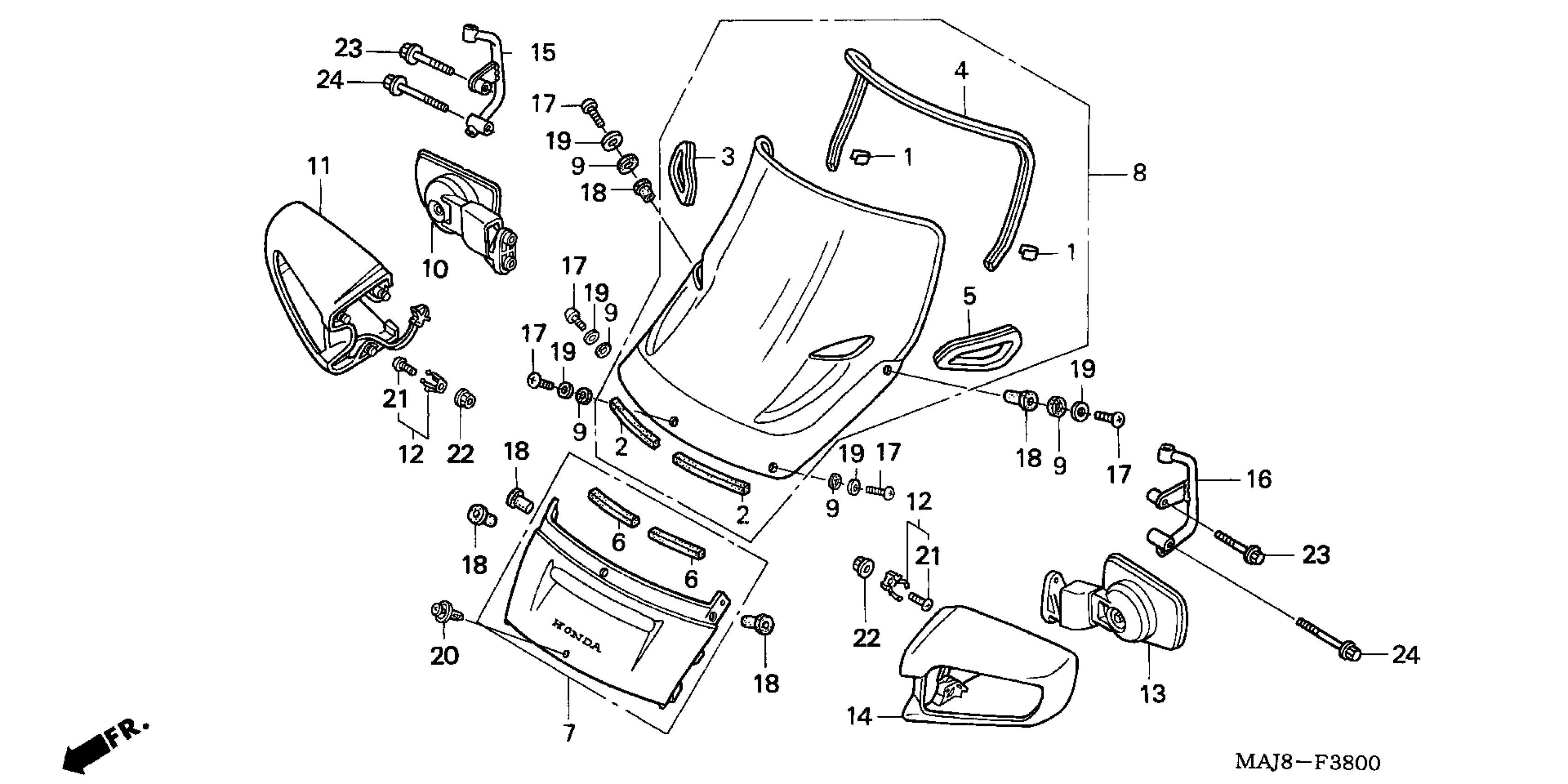

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 WINDSCREEN Diagram

#

Description
Price

1

CLIP, SCREEN MOLDING

64102-MJ0-000

$5.01

2

RUBBER, WINDSCREEN

64102-MT3-300

Unavailable

3

MOLDING, R. SCREEN AIR IN.

64105-MAJ-G00

Unavailable

4

MOLDING, WINDSCREEN

64106-MAJ-G00

Unavailable

5

MOLDING, L. SCREEN AIR IN.

64115-MAJ-G00

$22.28

6

MAT, SCREEN GARNISH

64121-MY3-300

Unavailable

7

GARNISH SET, SCREEN (TYPE2) (WL)

64125-MZ9-950ZA

Unavailable

8

WINDSCREEN SET

64150-MAJ-A00

Unavailable

9

WASHER, SCREEN SETTING

64205-166-610

$2.21

10

MIRROR ASSY., R. BACK

88110-MAJ-G01

$183.18

11

COVER, R. MIRROR *NH138* (SHASTA WHITE)

88111-MT3-003ZJ

Unavailable

12

WASHER, MIRROR SETTING SPRING

88115-MT3-000

$6.82

13

MIRROR ASSY., L. BACK

88120-MAJ-G01

$183.18

14

COVER, L. MIRROR *NH138* (SHASTA WHITE)

88121-MT3-003ZJ

Unavailable

15

STAY, R. FR. PATROL

88800-MZ9-900

Unavailable

16

STAY, L. FR. PATROL

88900-MZ9-900

Unavailable

17

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

18

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

19

WASHER, THRUST (5MM)

90504-964-000

$1.90

20

CLIP (Honda Code 3488079)

90651-MT3-000

$2.87

21

SCREW, PAN (5X12)

93500-05012-0A

$1.49

22

NUT, FLANGE (5MM)

94050-05000

$1.49

23

BOLT, FLANGE (6X45)

95801-06045-08

$2.06

24

BOLT, FLANGE (6X65)

95801-06065-08

Unavailable
