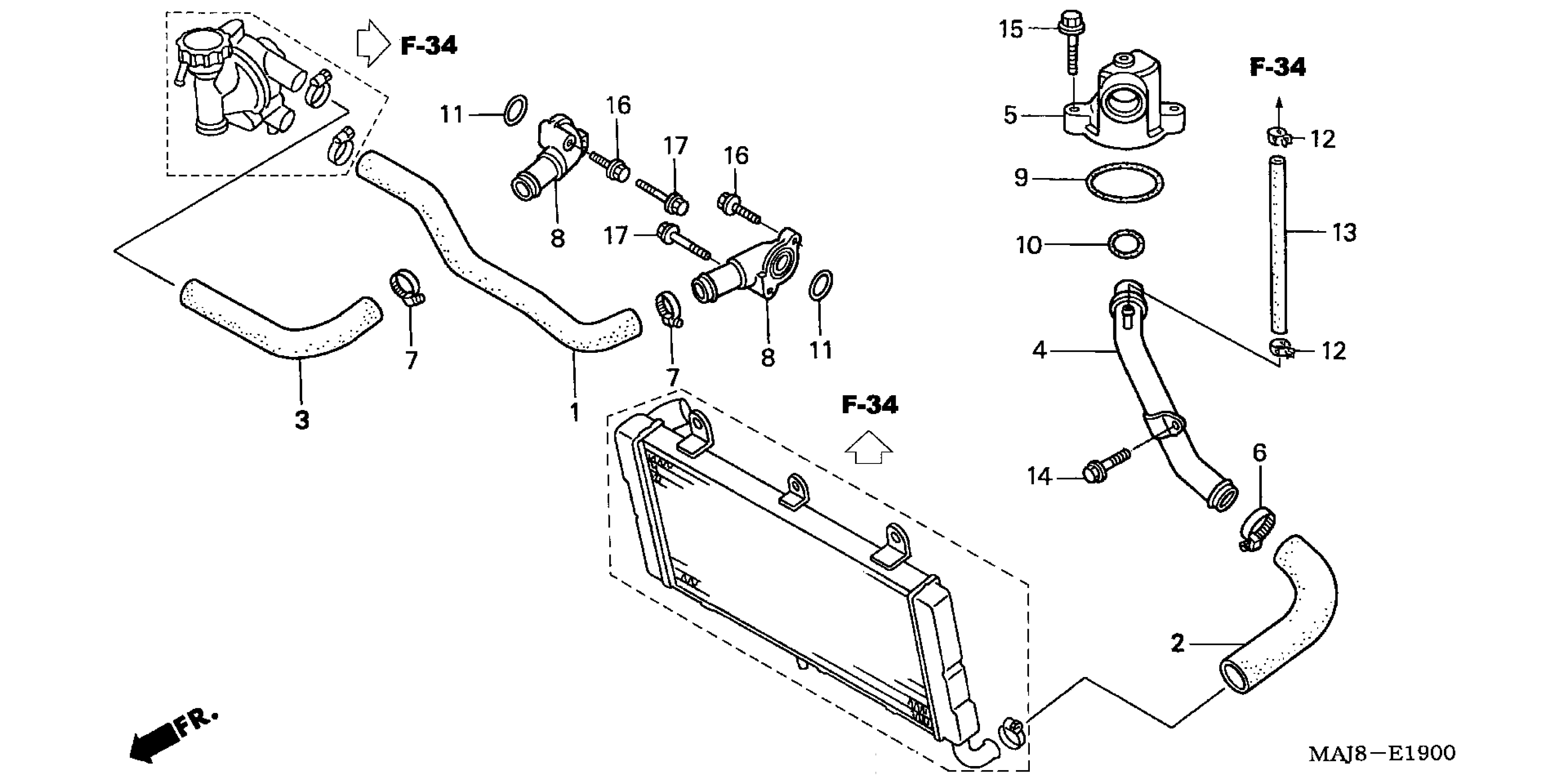

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 WATER PIPE Diagram

HOSE, L. THERMOSTAT

19504-MT3-000

$32.56

HOSE B, WATER

19505-MT3-000

$21.58

HOSE, R. THERMOSTAT

19506-MT3-000

$27.33

PIPE, WATER

19510-MAJ-G20

$73.85

COVER, WATER

19514-MT3-000

Unavailable

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

JOINT, WATER

19523-MT3-000

$13.84

O-RING (47.5X2)

91311-KE8-000

$2.39

SEAL, WATER PIPE

91315-MT3-003

$4.26

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

CLAMP, TUBE (D10)

95002-41000-08

$2.41

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
