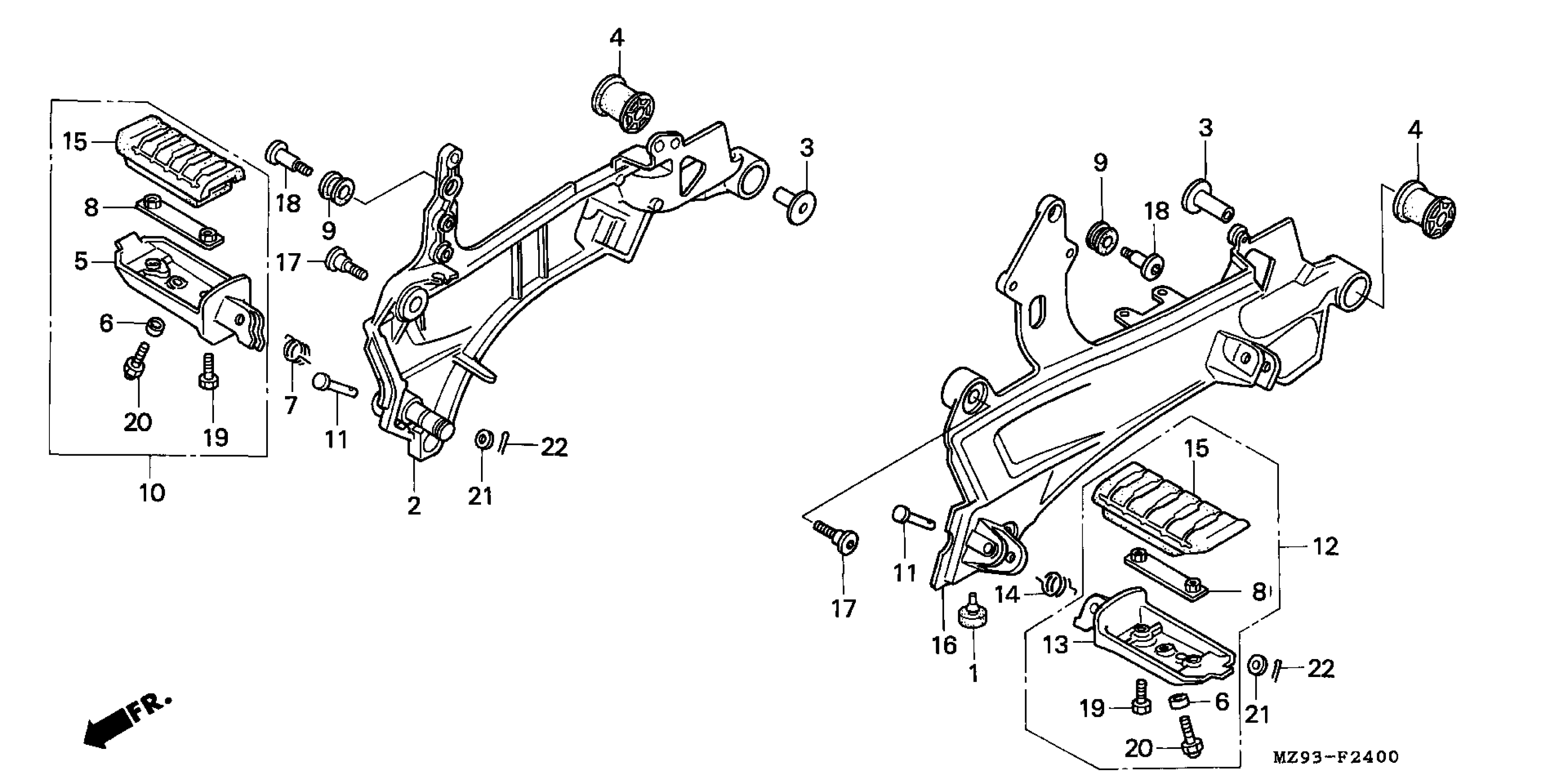

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 STEP Diagram

#

Description
Price

1

RUBBER, STAND STOPPER

50505-MT3-010

Unavailable

2

HOLDER, R. STEP

50600-MY3-010

$222.42

3

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.20

4

RUBBER, MUFFLER MOUNTING

50608-KV0-000

$5.80

5

ARM, R. STEP (COO) This part replaces 50612-MT3-000.

50612-MT3-305

$40.84

6

COLLAR (5.0)

50613-MT3-000

$2.71

7

SPRING, R. STEP RETURN

50617-MM5-000

$4.47

8

PLATE, STEP SETTING

50619-MT3-000

$10.87

9

RUBBER, STEP HOLDER

50622-MM5-000

$4.03

10

BAR ASSY., R. STEP (NOT AVAILABLE)

50630-MT3-000

Unavailable

11

PIN, STEP BAR

50639-ML0-010

Unavailable

12

BAR ASSY., L. STEP (NOT AVAILABLE)

50640-MT3-000

Unavailable

13

ARM, L. STEP (COO) This part replaces 50642-MT3-000.

50642-MT3-305

$40.84

14

SPRING, L. STEP RETURN

50644-MM5-000

$4.47

15

RUBBER, STEP (COO) This part replaces 50661-MT3-000.

50661-MT3-305

$6.74

16

HOLDER, L. STEP

50700-MAJ-G21

$232.75

17

BOLT, SPECIAL (10X36)

90104-MT3-000

$9.77

18

BOLT, SPECIAL (8X10)

90115-MM5-000

$11.16

19

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.46

20

BOLT, CAP (8X16)

92501-08016-0A

$2.38

21

WASHER, PLAIN (8MM)

94101-08000

$0.75

22

PIN, COTTER (2.0X15)

94201-20150

$0.94
