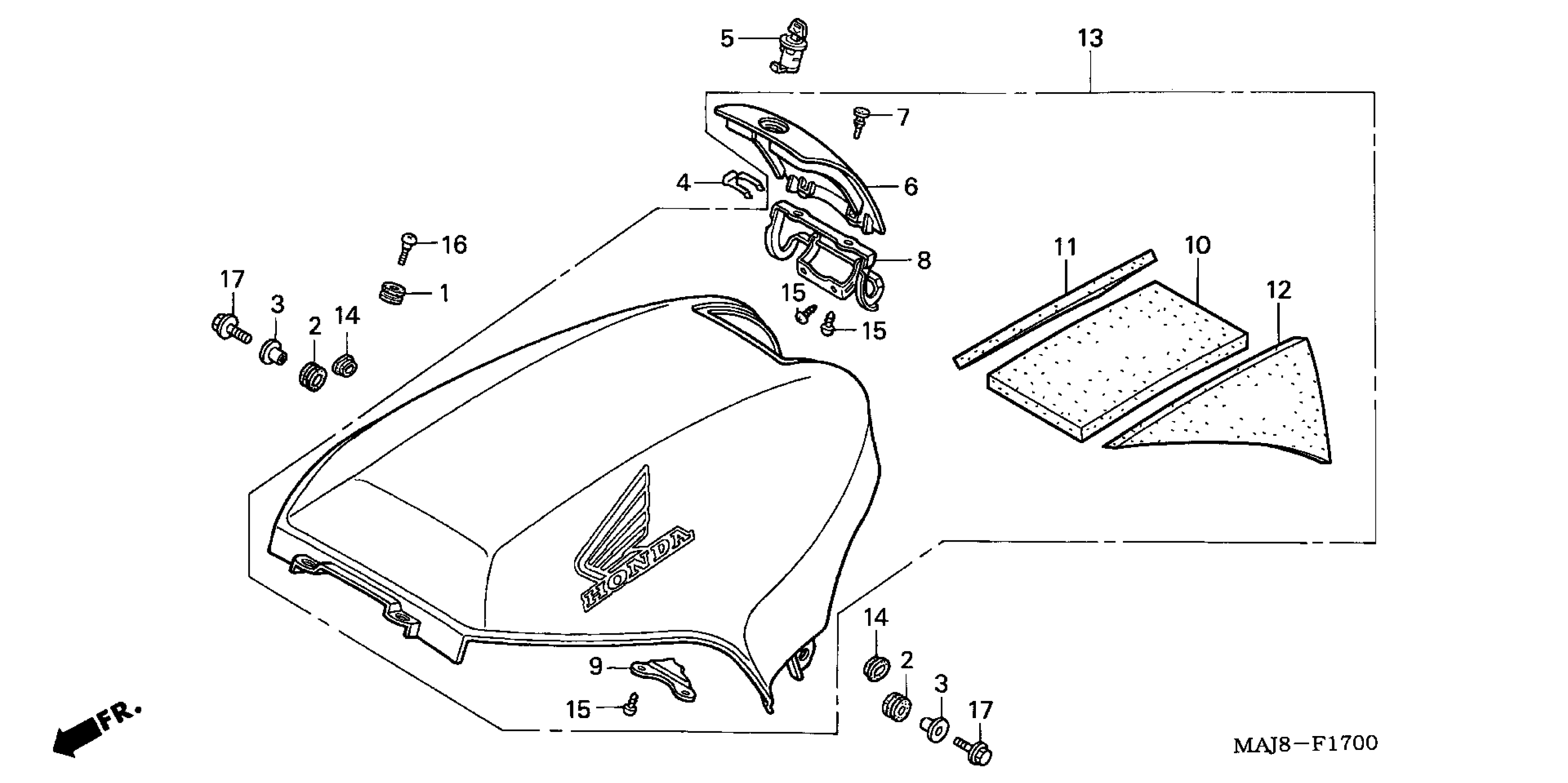

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 SHELTER Diagram

#

Description
Price

1

RUBBER, AIR CLEANER MOUNTING

17227-GS3-000

$2.91

2

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.13

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

4

SPRING, LOCK KEY SETTING

75581-673-000

$6.43

5

LOCK ASSY., FUEL LID

77232-GBL-772

Unavailable

6

LID, SHELTER *NH138* (SHASTA WHITE)

83131-MT3-000ZP

$46.26

7

RUBBER, SHELTER LID

83132-MN5-000

$2.21

8

HINGE, SHELTER

83140-MT3-000

Unavailable

9

PLATE, LOCK

83143-MT3-000

Unavailable

10

MAT A, SHELTER

83151-MAJ-G00

Unavailable

11

MAT B, R. SHELTER

83152-MAJ-G00

$8.81

12

MAT B, L. SHELTER

83153-MAJ-G00

$8.81

13

SHELTER ASSY., TOP (TYPE12) (WL)

83160-MAJ-B00ZA

$806.85

14

GROMMET, SIDE COVER

83551-MA6-000

$3.19

15

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$0.90

15

SCREW, TAPPING (4X12) (PO) SCREW, PAN (4X8)

93913-14280

$0.90

16

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.53

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.79
