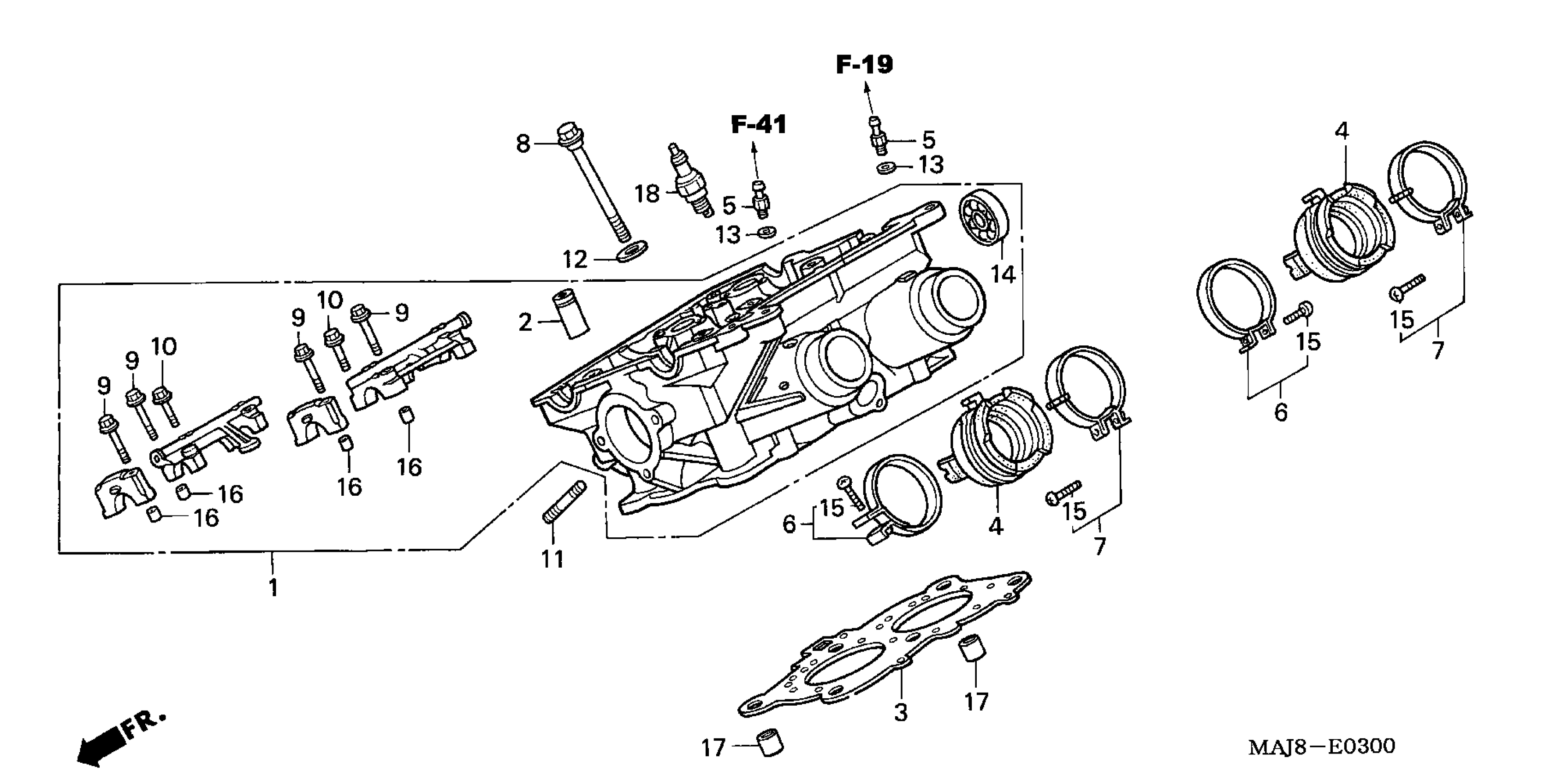

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 RIGHT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., R.

12010-MT3-731

$1,291.08

2

GUIDE, VALVE (OVER SIZE)

12204-MT4-305

$23.95

3

GASKET, CYLINDER HEAD

12251-MT3-004

Unavailable

4

INSULATOR, CARBURETOR

16211-MT3-000

$16.09

5

JOINT, BOOSTER

16214-MB0-000

$4.76

6

BAND, INSULATOR

16219-ML7-690

$10.31

7

BAND, INSULATOR

16219-MT3-000

$11.75

8

BOLT, FLANGE (10X87)

90003-MT3-003

$11.89

9

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

10

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

11

BOLT, STUD (8X24)

90035-MM5-000

$5.12

12

WASHER (10MM)

90441-MT3-000

$9.84

13

WASHER, SEALING (5MM)

90452-323-000

$1.59

14

BEARING, RADIAL BALL (6904)

91007-MT3-000

$24.48

15

SCREW, PAN (5X18)

93500-05018-0G

$1.49

16

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

17

PIN A, DOWEL (12X20)

94301-12200

$2.29

18

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$8.09

18

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$8.09

18

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

18

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

18

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
