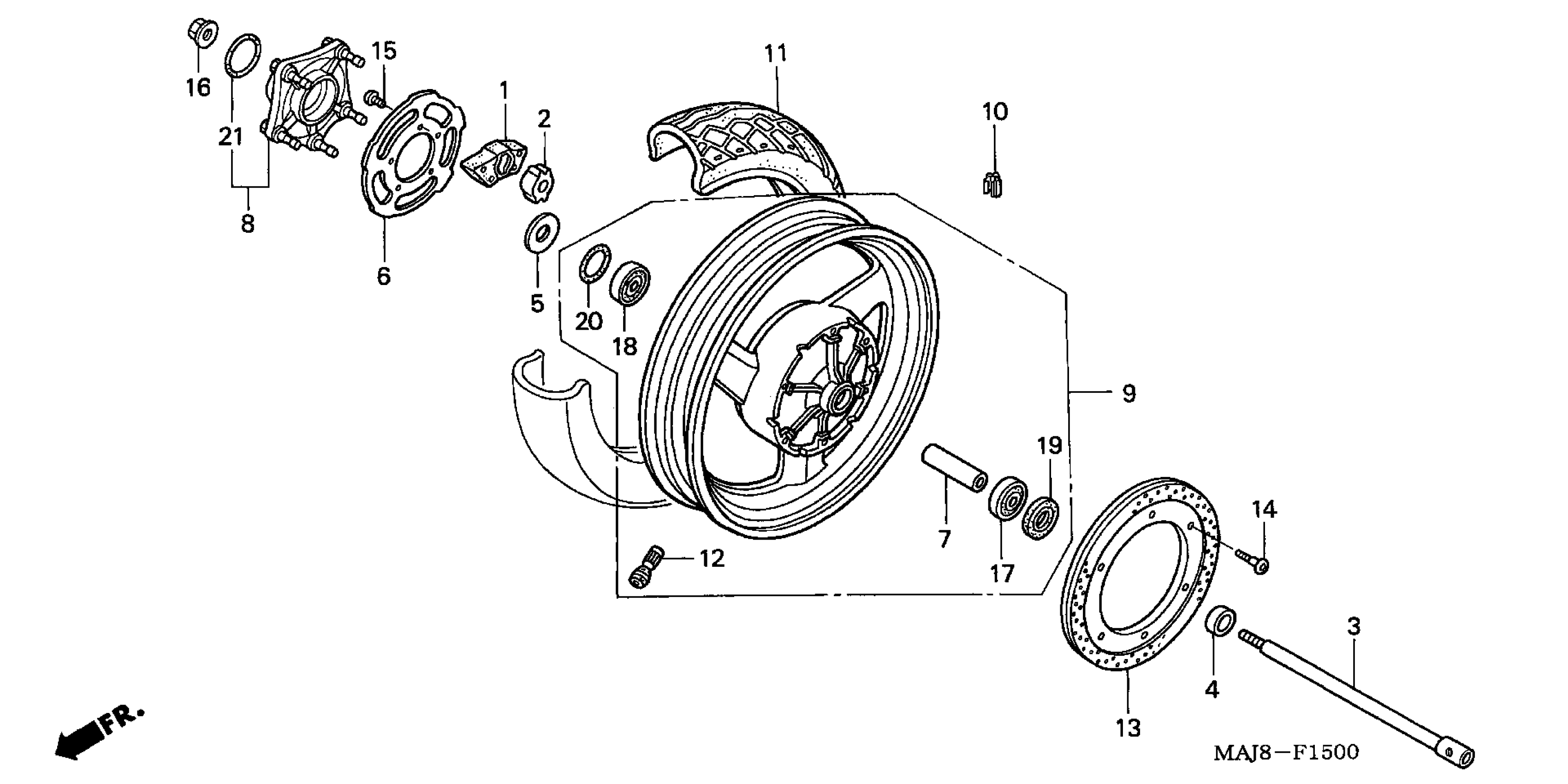

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 REAR WHEEL Diagram

#

Description
Price

1

RUBBER, RR. WHEEL DAMPER

41241-MT3-003

$24.68

2

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

3

AXLE, RR. WHEEL

42301-MM8-000

Unavailable

4

COLLAR, RR. BRAKE SIDE

42312-MAE-010

$22.45

5

WASHER, THRUST

42616-MAJ-G20

$7.32

6

HOLDER, DAMPER

42617-MT3-000

$38.36

7

COLLAR, RR. AXLE DISTANCE

42620-MT3-000

$22.56

8

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

9

WHEEL SET, RR.

42650-MY3-315

$1,128.85

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

11

TIRE, RR. (160/70V17) (M/C) (BS)

42711-MT3-616

$290.03

12

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

13

DISK, RR. BRAKE

43251-MT8-000

$494.08

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

16

NUT, FLANGE (18MM)

90306-MN5-003

$29.23

17

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

18

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

19

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

19

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

20

O-RING (61X2)

91302-MA6-003

$5.17

21

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76
