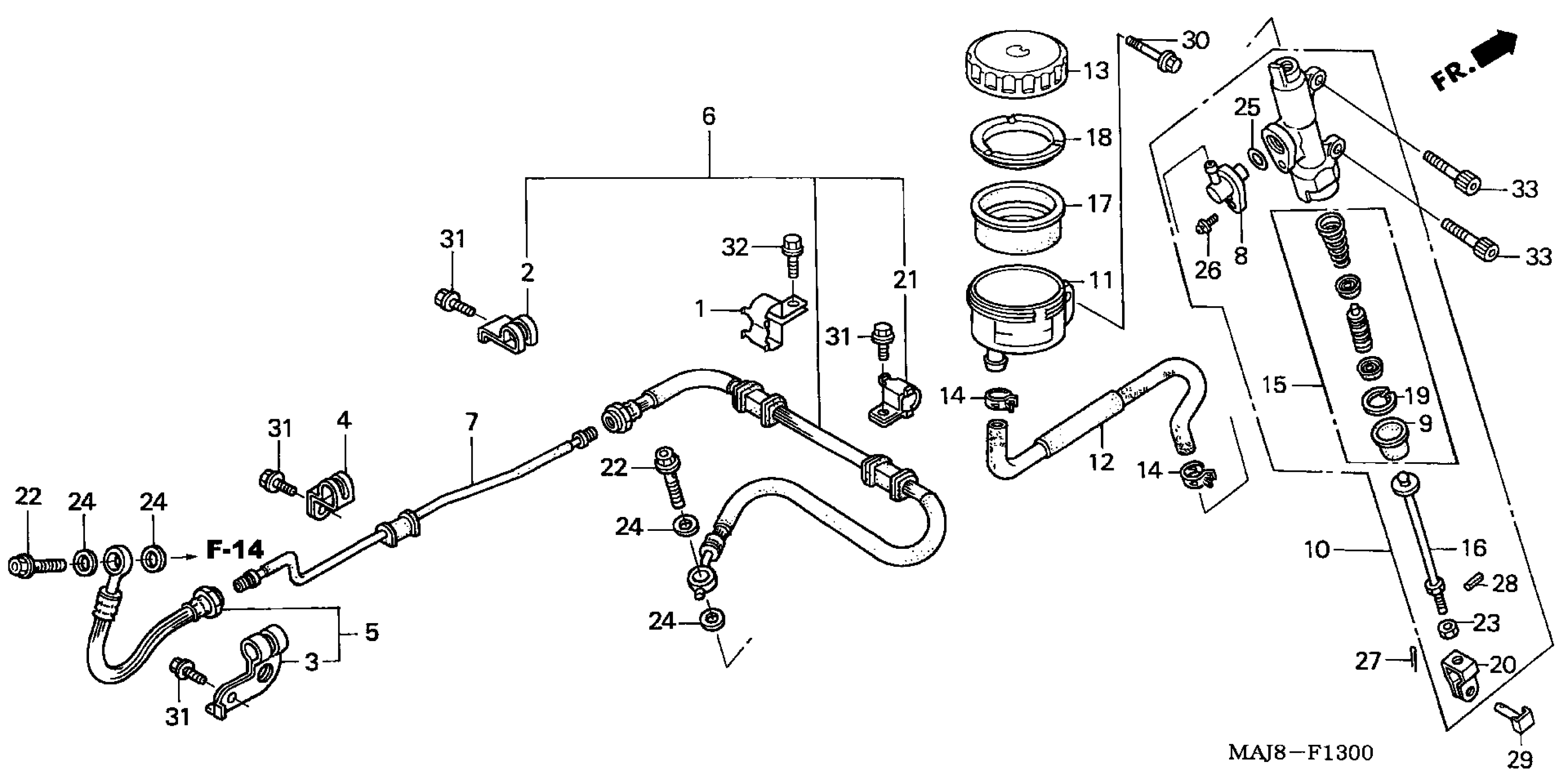

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP A, RR. BRAKE HOSE

43155-MAJ-G40

Unavailable

2

CLAMP, RR. BRAKE HOSE (A)

43156-MN5-000

Unavailable

3

CLAMP, RR. BRAKE HOSE (B)

43157-MT3-000

Unavailable

4

CLAMP, RR. BRAKE PIPE

43158-MT3-000

$6.35

5

HOSE A, RR. BRAKE

43310-MAJ-831

$36.96

6

HOSE B, RR. BRAKE

43313-MAJ-831

$62.80

7

PIPE, RR. BRAKE

43314-MT3-000

Unavailable

8

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

9

BOOT

43504-MB2-006

$9.01

10

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MT3-305

Unavailable

11

CUP, MASTER CYLINDER OIL

43511-MT3-006

$32.22

12

HOSE, MASTER CYLINDER

43512-MT3-006

Unavailable

13

CAP, OIL CUP

43513-MY1-006

$26.39

14

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

15

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

15

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

16

ROD, PUSH

43530-MT3-036

Unavailable

17

DIAPHRAGM

45520-300-000

$8.13

18

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

19

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.46

20

JOINT, BRAKE ROD

46504-MAH-671

$13.01

21

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

22

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

23

NUT, HEX. (8MM)

90305-MAH-671

$2.99

24

WASHER, OIL BOLT

90545-300-000

$3.72

25

O-RING (14.8X2.4)

91212-422-006

Unavailable

26

SCREW-WASHER (4X12)

93893-04012-07

$1.22

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

27

PIN, COTTER (2.0X15)

94201-20150

$0.94

28

PIN, SPRING (2X10)

94305-20102

$0.80

29

PIN D, JOINT

95015-54000

$3.95

30

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

31

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

32

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable

33

BOLT, SOCKET (6X16)

96600-06016-08

$1.58
