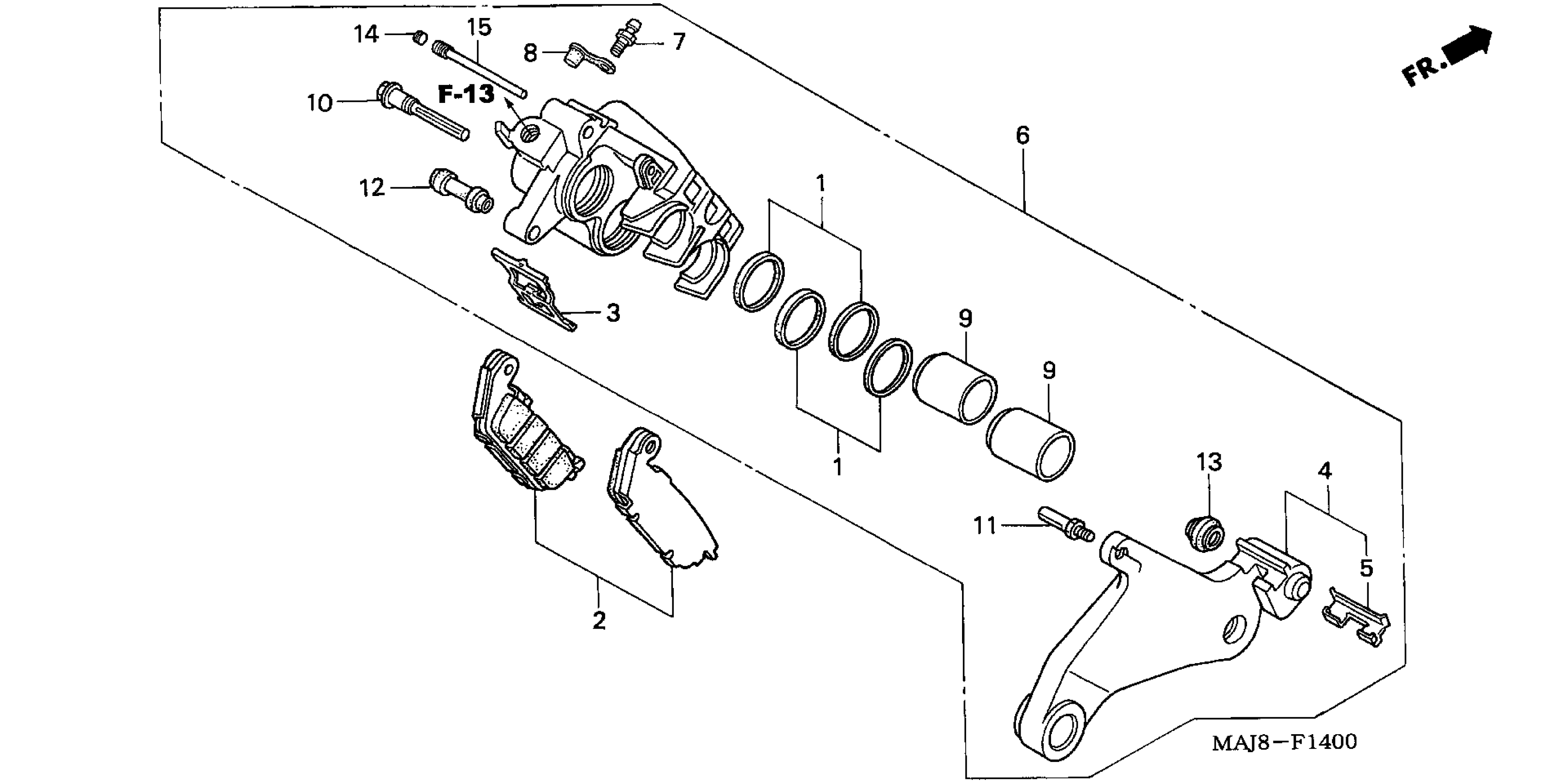

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

2

PAD SET, RR. BRAKE

06435-MT3-405

$51.88

3

SPRING, PAD

43108-MT3-006

$8.99

4

BRACKET, RR.

43110-MAJ-G01

Unavailable

5

RETAINER

43112-MT3-006

$6.67

6

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MAJ-G01

$446.50

7

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

8

CAP, BLEEDER

43353-461-771

Unavailable

9

PISTON (NISSIN)

45107-ML4-006

$34.77

10

PIN, BOLT

45131-MA3-006

$16.14

11

BOLT, PIN

45131-166-016

$7.28

12

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

13

BOOT B

45133-MA3-006

$5.21

14

PLUG, PIN

45203-MG3-016

$4.88

15

PIN, HANGER

45215-HE0-016

$9.61
