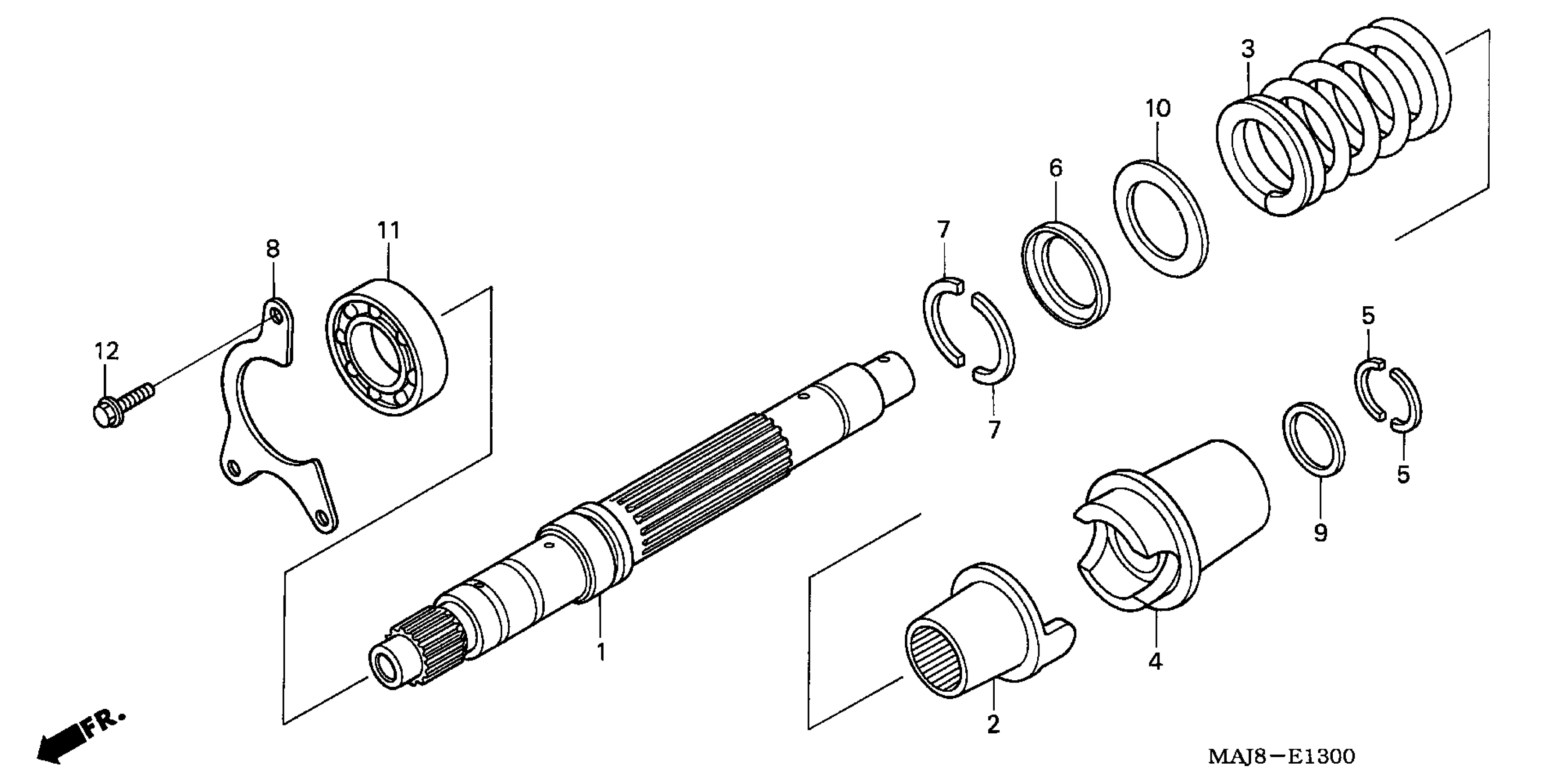

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 PRIMARY SHAFT Diagram

#

Description
Price

1

SHAFT, PRIMARY

23111-MT3-000

$273.11

2

LIFTER, PRIMARY DAMPER

23112-MT3-000

Unavailable

3

SPRING, PRIMARY DAMPER

23113-MZ9-910

$24.38

4

CAM, PRIMARY DAMPER

23114-MT3-000

Unavailable

5

WASHER, SPRING STOPPER

23117-MT3-000

Unavailable

6

RETAINER, PRIMARY SPRING

23118-MT3-000

Unavailable

7

COTTER, PRIMARY SPRING

23119-MT3-000

Unavailable

8

PLATE, PRIMARY BEARING SETTING

23215-MT3-000

Unavailable

9

WASHER (24X28X1)

90403-MT3-000

Unavailable

10

WASHER (35X54X3.2)

90407-MT3-000

$13.26

11

BEARING, RADIAL BALL (62/28)

91008-MT3-004

$30.16

12

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
