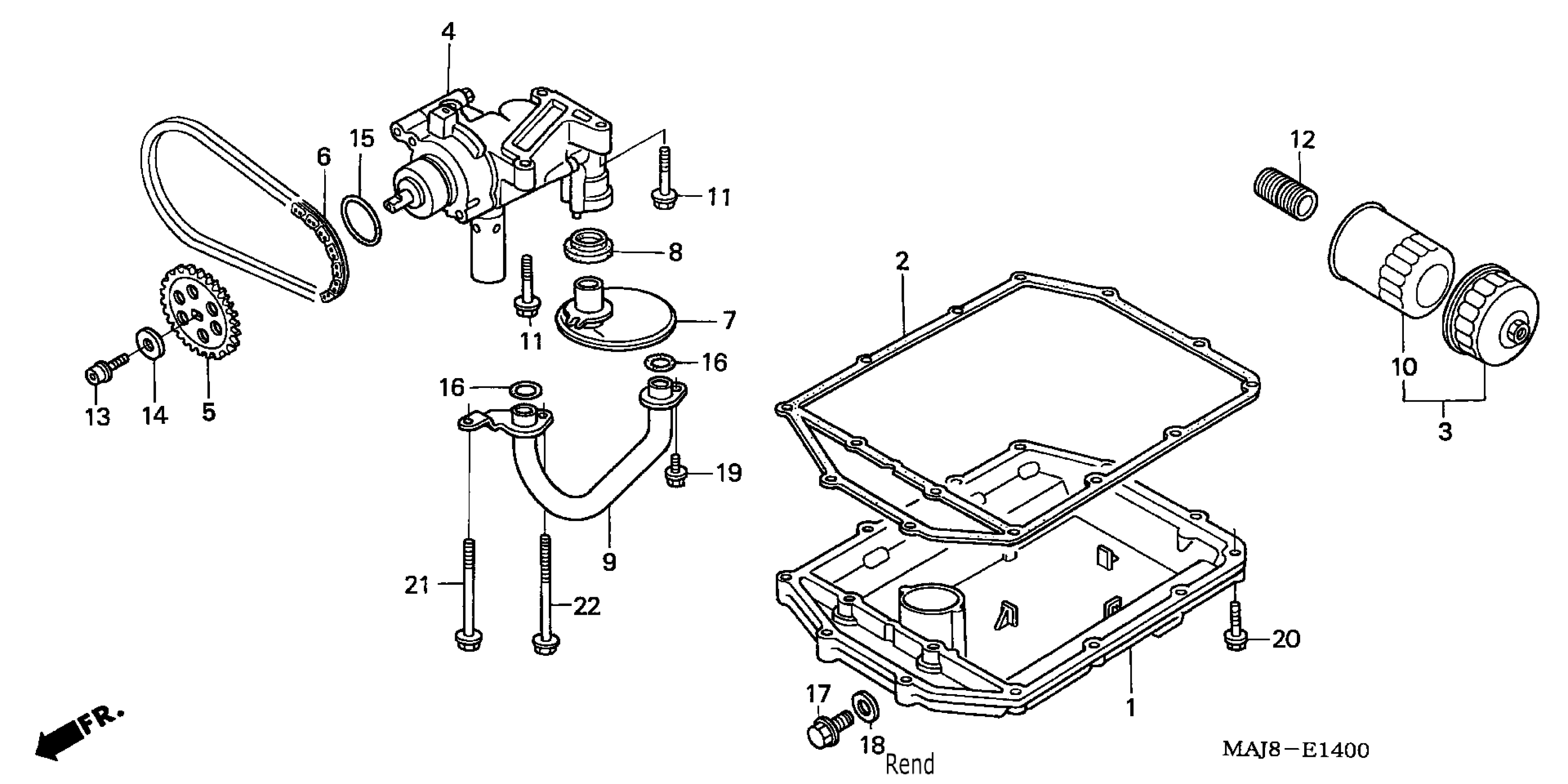

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11211-MT3-000

$252.31

2

GASKET, OIL PAN

11214-MY3-000

$15.90

3

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

4

PUMP ASSY., OIL

15100-MT3-000

$260.84

5

SPROCKET, OIL PUMP DRIVEN (27T)

15134-MR1-000

$43.49

6

CHAIN, OIL PUMP DRIVE (58L) (BORG WARNER)

15140-MT3-003

Unavailable

7

STRAINER, OIL

15153-MT3-000

$36.69

8

GASKET, OIL STRAINER

15154-MM5-000

$6.60

9

PIPE, OIL

15313-MT3-000

$55.52

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

11

BOLT, KNOCK (6X30)

90014-ME5-000

$6.64

12

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

13

BOLT, SOCKET (6X14)

90091-KV3-700

$3.13

14

WASHER (6X2.3)

90488-MB0-000

$4.37

15

O-RING (31X2.5)

91301-PJ7-000

$4.16

16

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

16

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

17

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

20

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

21

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

22

BOLT, FLANGE (6X90) (Honda Code 2533842)

95701-06090-00

$1.92
