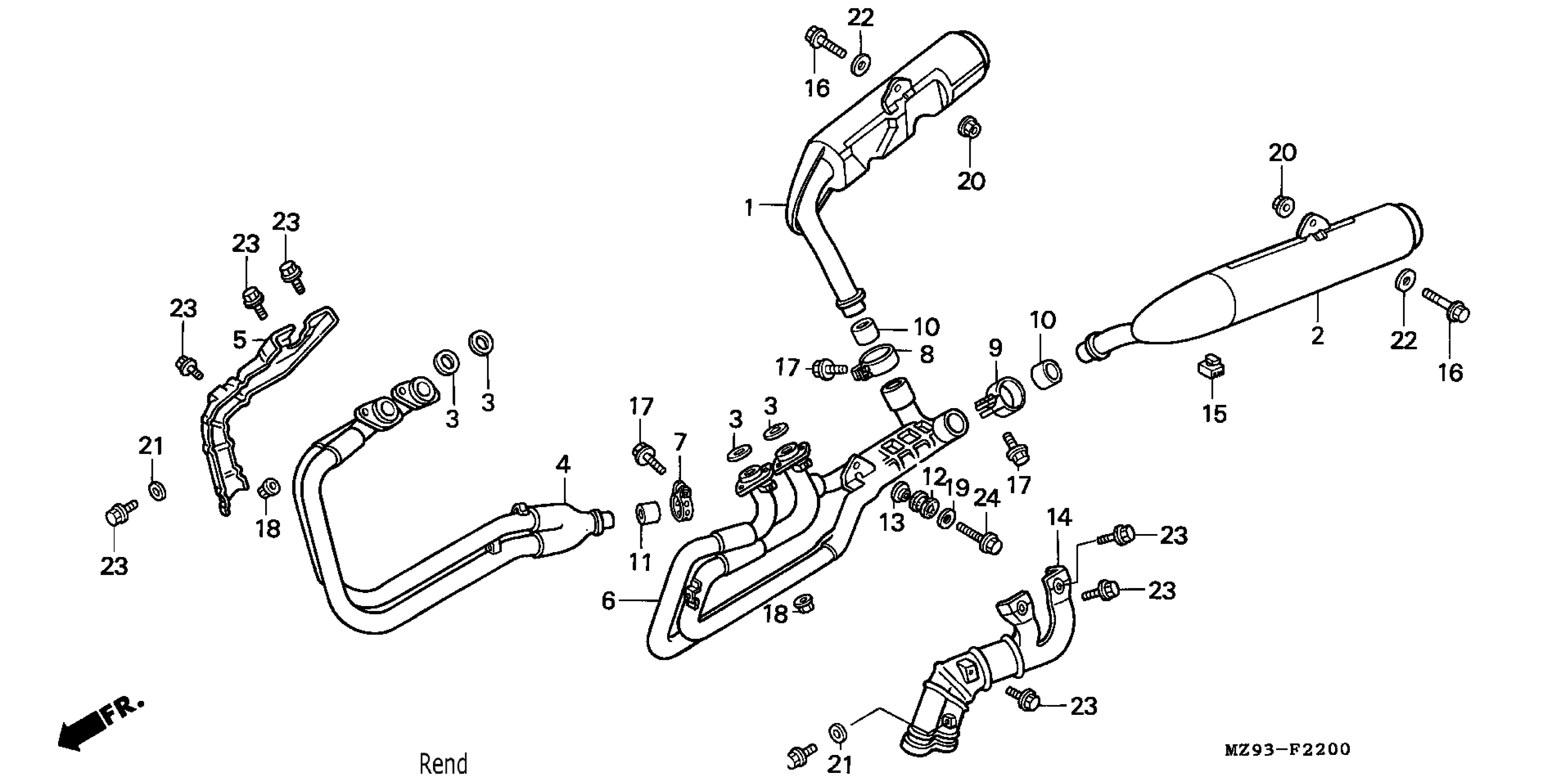

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., R.

18100-MT3-671

Unavailable

2

MUFFLER ASSY., L.

18200-MT3-671

Unavailable

3

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, EX. PIPE This part replaces 18291-MT3-000.

18291-MN4-920

$5.31

4

PIPE, R. EX. This part replaces 18320-MY3-000.

18320-MY3-740

$514.26

4

PIPE, R. EX.

18320-MY3-740

$514.26

5

COVER, R. EX. PIPE

18325-MY3-000

$89.26

6

PIPE, L. EX. This part replaces 18370-MY3-000.

18370-MY3-740

Unavailable

7

BAND, L. MUFFLER This part replaces 18371-ML7-000.

18374-KE8-000

$29.26

7

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$29.26

7

BAND, L. MUFFLER

18374-KE8-000

$29.26

8

BAND, R. MUFFLER

18376-MT3-000

$30.80

9

BAND, L. MUFFLER

18377-MT3-000

$30.80

10

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

13

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

14

COVER, L. EX. PIPE

18425-MY3-000

$80.25

15

RUBBER A, STAND STOPPER

50524-KR0-000

Unavailable

16

BOLT, FLANGE (8X50)

90108-MB2-000

$5.23

17

BOLT, FLANGE (8X40)

90113-MT3-000

$8.48

18

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

19

WASHER (8.5X26)

90504-MM5-000

Unavailable

20

NUT, FLANGE (8MM)

94050-08070

$1.49

21

WASHER, PLAIN (6MM)

94103-06400

$1.49

22

WASHER, PLAIN (8MM)

94103-08200

$1.49

23

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

24

BOLT, FLANGE (8X45)

95801-08045-07

$2.28
