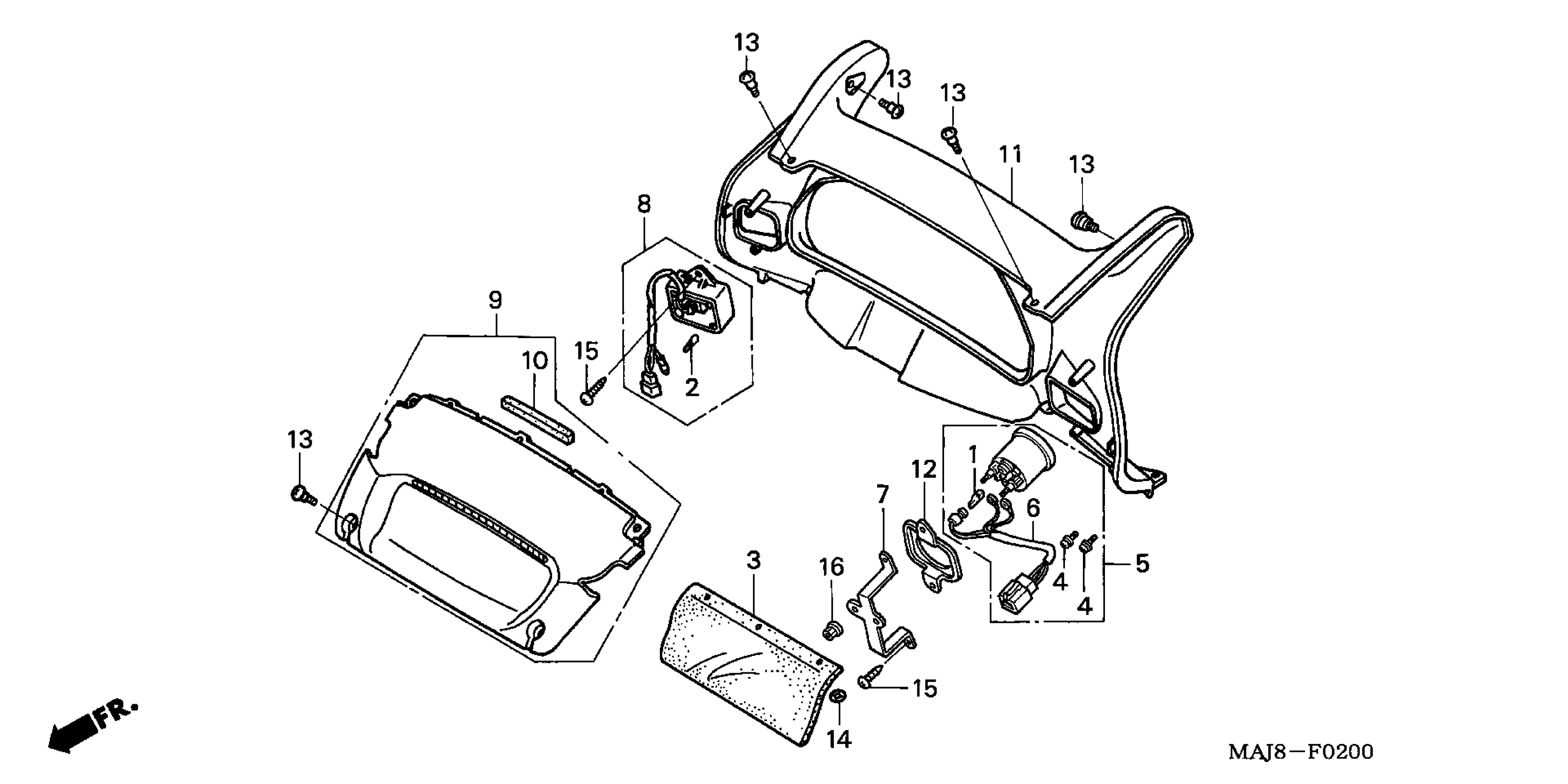

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 METER PANEL Diagram

BULB, WEDGE BASE (12V 1.7W) BULB, WEDGE BASE (12V1.4W)

34908-MG9-951

$2.33

BULB, WEDGE BASE (T-5 1.4W)

34908-MT3-003

Unavailable

PROTECTOR, METER

37104-MAJ-G00

Unavailable

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

VOLTMETER ASSY.

37420-MAJ-T11

$113.85

WIRE

37424-MZ9-901

$12.95

STAY, VOLTMETER

37425-MZ9-900

$14.79

CLOCK ASSY.

37460-MT3-003

Unavailable

SCREEN (INNER) *NH285* (GUSTO GRAY)

64111-MAJ-G20ZA

Unavailable

MAT, SCREEN GARNISH

64121-MY3-300

Unavailable

PANEL, METER *NH285* (GUSTO GRAY)

64240-MAJ-G00ZA

Unavailable

PANEL, VOLTMETER

64241-MZ9-900

Unavailable

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

NUT, PUSH (3MM)

90301-ST0-003

$3.25

NUT, PUSH (3MM) This part replaces 90310-SB2-003.

90301-ST0-003

$3.25

SCREW, TAPPING (4X16)

93903-24420

$1.49

NUT, HEX. (5MM)

94002-05000-0S

$1.49
