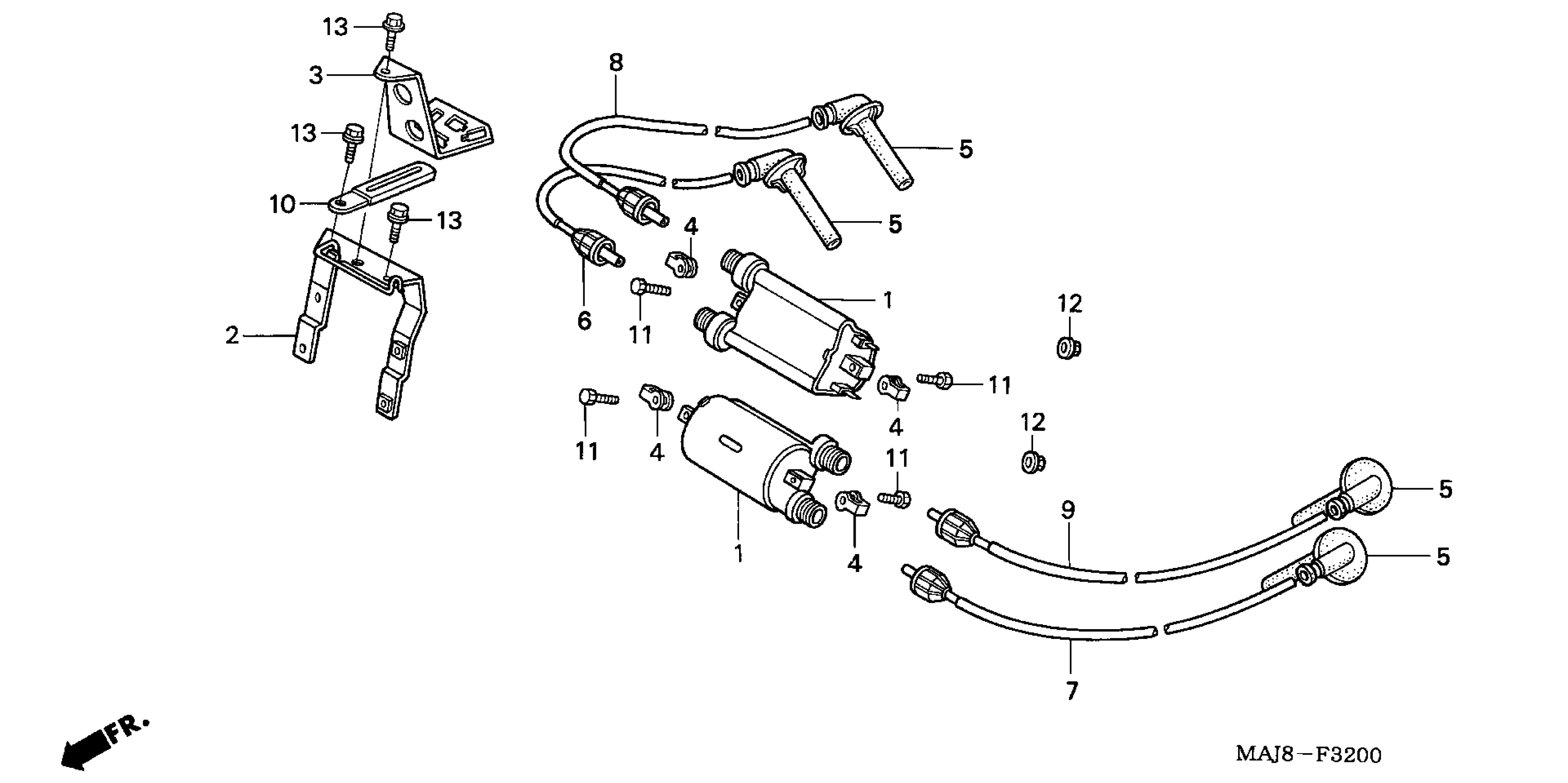

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 IGNITION COIL Diagram

COIL, IGNITION

30510-KT7-023

$142.15

STAY, IGNITION COIL

30515-MT3-000

Unavailable

HOLDER, CONNECTOR

30516-MT3-000

Unavailable

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY,NOISE SU This part replaces 30700-KAF-010.

30700-KAF-003

$37.16

WIRE, IGNITION (1) This part replaces 30731-MT3-610.

30731-MT3-505

Unavailable

WIRE, IGNITION (1) This part replaces 30732-MT3-610.

30731-MT3-505

Unavailable

WIRE, IGNITION (1) This part replaces 30733-MT3-610.

30733-MT3-505

Unavailable

WIRE, IGNITION (1) This part replaces 30734-MT3-610.

30733-MT3-505

Unavailable

CLIP, WIRE HARNESS

91406-657-671

$9.42

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
