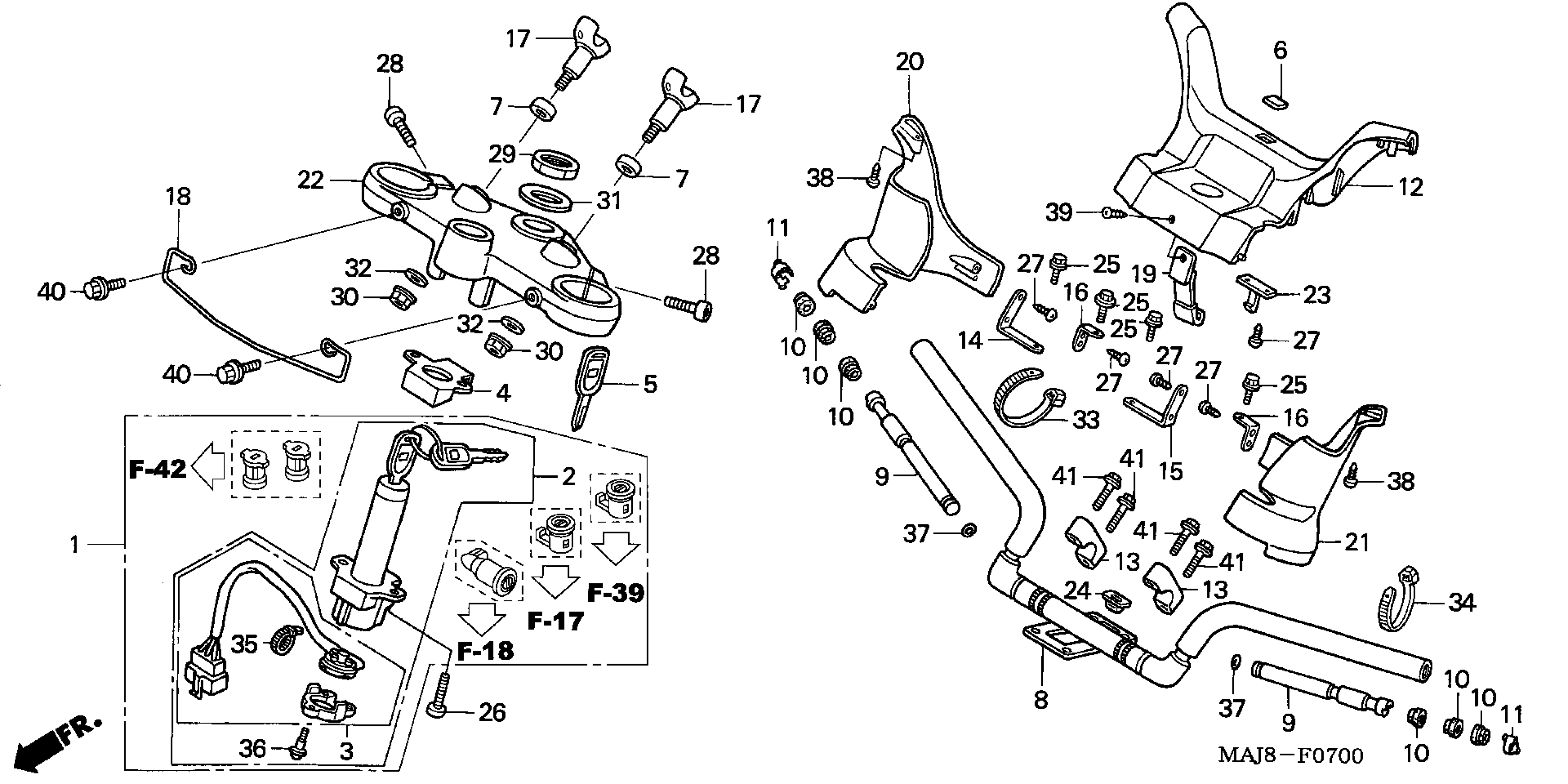

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

LOCK SET

35010-MAJ-830

$220.24

2

SWITCH ASSY. This part replaces 35100-MAJ-830.

35100-MAJ-831

$110.90

2

SWITCH ASSY.

35100-MAJ-831

$110.90

3

BASE, CONTACT

35101-MT3-601

Unavailable

4

COVER, COMBINATION SWITCH

35106-MB2-610

$9.46

5

KEY, BLANK (NO.1)

35121-MZ9-960

$18.22

5

KEY, BLANK (NO.2)

35122-MZ9-960

$19.01

6

EMBLEM, METER VISOR

37115-MT6-000

Unavailable

7

COLLAR, RR. BRAKE PANEL SIDE

42313-GE2-000

$8.82

8

HANDLEBAR

53100-MZ9-950

Unavailable

9

WEIGHT B, HANDLE

53106-MAJ-G00

$24.47

10

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

11

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

12

COVER, HANDLE (UPPER) *NH285* (GUSTO GRAY)

53130-MT3-000ZA

Unavailable

13

HOLDER, HANDLE (UPPER)

53131-HB6-000

$19.44

14

STAY, R. FR. HANDLE COVER

53131-MT3-010

Unavailable

15

STAY, L. FR. HANDLE COVER

53132-MT3-010

$4.50

16

STAY, RR. HANDLE COVER

53133-MT3-000

$4.24

17

HOLDER, HANDLE (LOWER)

53134-MZ9-900

$36.21

18

GUIDE, CABLE

53135-MT3-000

Unavailable

19

STAY, HANDLE COVER (UPPER)

53137-MZ9-900

Unavailable

20

COVER, R. HANDLE (LOWER) *NH285* (GUSTO GRAY)

53150-MT3-010ZA

Unavailable

21

COVER, L. HANDLE (LOWER) *NH285* (GUSTO GRAY)

53160-MT3-000ZA

Unavailable

22

BRIDGE, FORK TOP

53240-MT3-000

$312.01

23

STRIKER, MAINTENANCE LID

64296-MR5-003

Unavailable

24

LATCH, SIDE COVER

64297-MR5-003

$2.62

25

BOLT, FLANGE (5X10)

90002-892-000

$1.31

26

BOLT, COMBINATION SWITCH SETTING

90105-KE1-722

$4.72

27

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$0.90

27

SCREW, TAPPING (4X12) (PO) SCREW, PAN (4X8)

93913-14280

$0.90

28

BOLT, SOCKET (8X30)

90112-KM4-000

$3.87

29

NUT, STEERING STEM

90304-425-000

$8.93

30

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

30

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

31

WASHER, STEERING STEM

90503-425-000

$4.01

32

WASHER, HANDLE CUSHION

90535-KB9-000

$5.86

33

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$5.40

34

BAND, WIRE HARNESS

90651-MA6-720

$5.46

35

BAND, SELF-LOCK

91058-MG9-681

$2.04

36

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

37

O-RING (11.5X2)

91304-216-000

$1.96

38

SCREW, TAPPING (4X12)

93901-24320

$0.90

39

SCREW, TAPPING (5X10)

93903-35180

$0.82

40

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

41

BOLT, FLANGE (8X35)

95801-08035-08

$2.96
