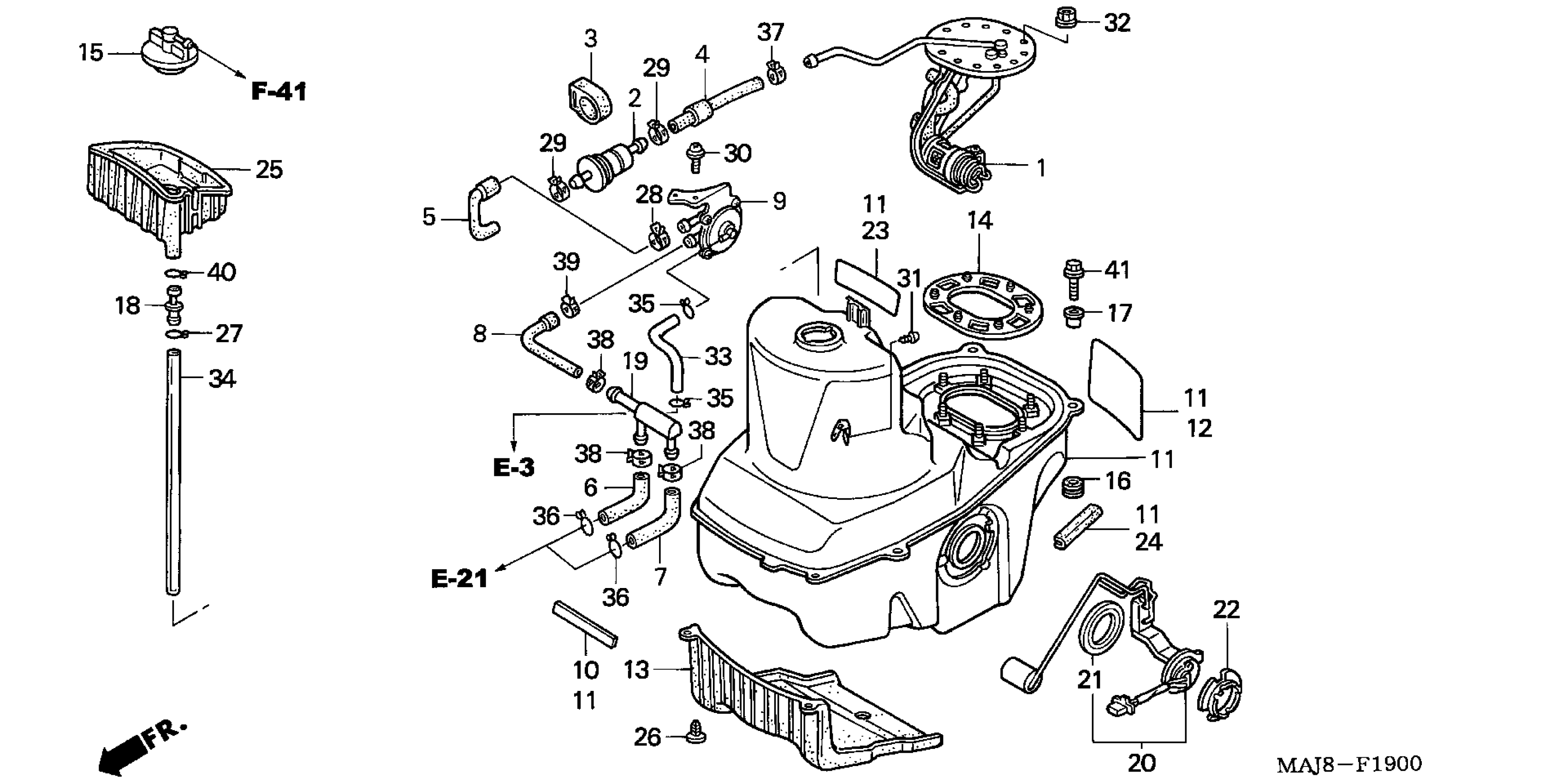

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16700-MT3-010

$757.52

2

FILTER, FUEL

16900-MG8-003

$23.49

3

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

4

TUBE B, FUEL

16954-MT3-000

$16.28

5

TUBE C, FUEL

16955-MT3-000

$18.69

6

TUBE, R. FUEL

16956-MT3-000

$11.34

7

TUBE, L. FUEL

16957-MT3-000

Unavailable

8

TUBE D, FUEL

16958-MT3-000

Unavailable

9

PETCOCK ASSY., AUTO This part replaces 16970-MT3-000.

16970-MT3-013

$253.67

9

PETCOCK ASSY., AUTO This part replaces 16970-MT3-003.

16970-MT3-013

$253.67

9

PETCOCK ASSY., AUTO

16970-MT3-013

$253.67

10

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.48

11

TANK, FUEL

17510-MY3-010

Unavailable

12

TAPE, FUEL TANK PROTECTOR

17539-MT3-310

Unavailable

13

PROTECTOR, FUEL TANK HEAT

17570-MT3-000

Unavailable

14

GASKET, BASE

17574-MN5-000

$10.10

15

CAP, FUEL FILLER

17670-MT3-003

Unavailable

16

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

17

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

18

JOINT, TUBE

19102-KT8-000

$6.61

19

JOINT (THREE-WAY) (D)

19525-MT8-000

$10.20

20

FUEL UNIT

37800-MY3-781

Unavailable

21

GASKET, BASE

37801-689-000

$4.90

22

RETAINER, FUEL UNIT

37802-SD2-000

Unavailable

22

RETAINER, FUEL UNIT This part replaces 37802-689-000.

37802-SD2-000

Unavailable

23

TAPE, PROTECTOR

81229-MR5-000

$8.36

24

RUBBER, PROTECTOR

83171-MT3-300

$4.15

25

TRAY, FUEL TANK

83502-MT3-000

Unavailable

26

CLIP (Honda Code 3488079)

90651-MT3-000

$2.87

27

CLAMP, TUBE (12.5MM) (B)

90661-GHB-610

$1.62

28

CLIP, FUEL HOSE

90678-MN5-000

$2.59

29

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

30

SCREW-WASHER (5X16)

93891-05016-07

$1.49

31

SCREW, TAPPING (4X6)

93901-24020

$1.49

32

NUT, FLANGE (6MM)

94050-06080

$1.49

33

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)

95001-35003-60M

$20.85

34

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$103.82

35

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

36

CLIP, TUBE (B12.5)

95002-02130

$1.49

37

CLAMP, TUBE (D12)

95002-41200-04

$2.34

38

CLAMP, TUBE (D12)

95002-41200-08

$2.34

39

CLAMP, TUBE (D13)

95002-41300-08

$2.92

40

CLIP, TUBE (C12)

95002-80000

$1.49

41

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
