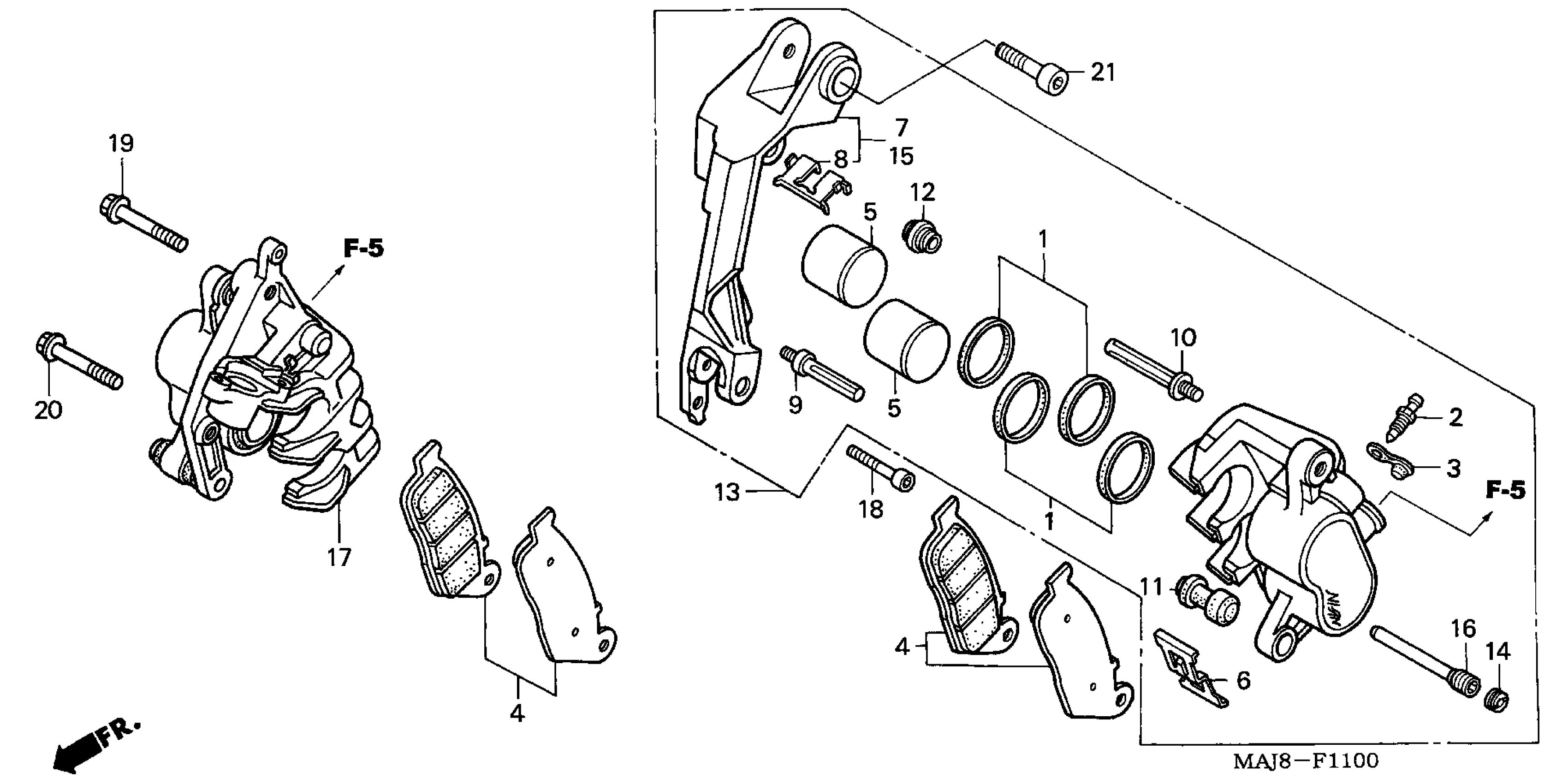

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PAD SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK)

45105-ML7-405

$50.51

PISTON (NISSIN)

45107-ML4-006

$34.77

SPRING, PAD (NISSIN)

45108-ML7-922

$5.90

BRACKET, L. FR. CALIPER (NISSIN)

45110-MT3-006

Unavailable

RETAINER

45112-ML7-921

$5.21

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOLT, PIN

45131-166-016

$7.28

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MT3-305

$407.10

PLUG, PIN

45203-MG3-016

$4.88

BRACKET, R. FR. (NISSIN)

45210-MY3-781

$86.19

PIN, HANGER (NISSIN)

45215-ML7-922

$9.79

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MY3-306

$243.74

BOLT, SOCKET (6X25)

90105-MJ1-000

Unavailable

BOLT, FLANGE (8X32)

90107-MT3-003

Unavailable

BOLT, FLANGE (8X35)

90107-MY3-780

$7.49

BOLT, SOCKET (8X36)

90131-ML7-000

$5.20
