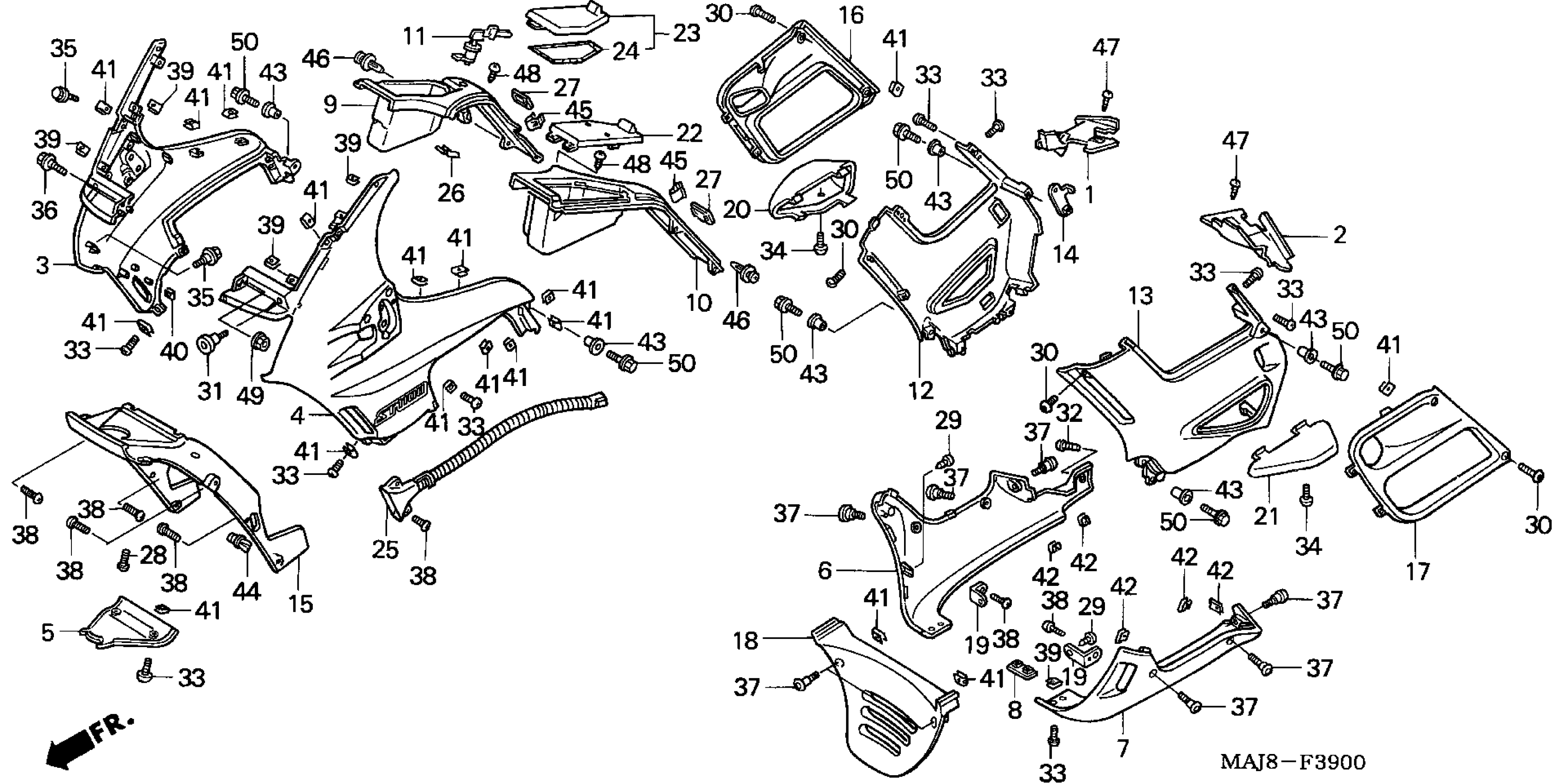

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 COWL Diagram

#

Description
Price

1

GUARD, R. FR. AIR

19070-MT3-000

Unavailable

2

GUARD, L. FR. AIR

19170-MT3-000

$46.90

3

COWL SET, R. (UPPER) (TYPE1) (WL)

64200-MAJ-830ZA

Unavailable

4

COWL SET, L. (UPPER) (TYPE1) (WL)

64201-MAJ-830ZA

$356.43

5

COVER, HEADLIGHT (LOWER) *NH1* (BLACK)

64215-MY3-000ZB

Unavailable

6

COWL, R. (LOWER) *NH285* (GUSTO GRAY)

64220-MT3-000ZA

$189.69

7

COWL, L. (LOWER) *NH285* (GUSTO GRAY)

64221-MT3-000ZA

$189.69

8

PLATE, COWL SETTING (LOWER)

64222-MT3-000

$4.66

9

POCKET, R. COWL *NH285* (GUSTO GRAY)

64225-MAJ-G00ZA

$196.25

10

POCKET, L. COWL *NH285* (GUSTO GRAY)

64226-MAJ-G10ZA

Unavailable

11

LOCK ASSY., POCKET LID

64228-MT3-003

$32.39

12

COWL, R. MIDDLE *NH138* (SHASTA WHITE)

64230-MAJ-G50ZE

$519.05

13

COWL, L. MIDDLE *NH138* (SHASTA WHITE)

64231-MAJ-G50ZE

$519.05

14

STAY, MIDDLE COWL

64233-MT3-000

$8.34

15

COWL, MIDDLE (INNER) *NH138* (SHASTA WHITE)

64235-MT3-000ZJ

$136.93

16

COVER, R. MAINTENANCE *NH138* (SHASTA WHITE)

64245-MAJ-G50ZE

Unavailable

17

COVER, L. MAINTENANCE *NH138* (SHASTA WHITE)

64246-MAJ-A40ZE

$108.51

18

PANEL, FR. *NH285* (GUSTO GRAY)

64255-MT3-000ZA

$156.30

19

STAY, COWL (LOWER)

64256-MT3-000

$4.18

20

COVER, R. ENGINE GUARD *NH285* (GUSTO GRAY)

64260-MT3-000ZA

$54.21

21

COVER, L. ENGINE GUARD *NH285* (GUSTO GRAY)

64261-MT3-000ZA

$54.21

22

LID, L. COWL POCKET *NH285* (GUSTO GRAY)

64271-MT3-010ZA

$34.52

23

LID, R. COWL POCKET *NH285* (GUSTO GRAY)

64272-MAJ-G00ZA

Unavailable

24

SEAL, POCKET LID

64274-MT3-300

$6.79

25

DUCT, FRESH AIR IN.

64280-MT3-000

Unavailable

26

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

27

CAP, MAINTENANCE *NH285* (GUSTO GRAY)

77121-MT3-000ZA

$9.32

28

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.48

29

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

29

SCREW, TAPPING (4X12) (PO) SCREW, PAN (4X8)

93913-14280

$1.49

30

SCREW, TRUSS (5X16)

90103-MT3-000

$2.92

31

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

32

SCREW, PAN (6X11)

90106-KY2-701

$4.24

33

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

34

SCREW, TRUSS (5X16)

90111-MT3-000

$6.34

35

BOLT, FLANGE (6MM)

90111-162-000

$2.89

36

BOLT, FLANGE (6X16)

90113-MJ4-670

$4.41

37

SCREW, PAN (6X14)

90113-MM5-000

$3.10

38

SCREW, VISOR SETTING

90114-KW7-900

$2.92

39

NUT, PLATE (5MM)

90305-MN5-000

$6.02

40

NUT, CLIP (6MM)

90311-MT3-000

$5.78

41

NUT, CLIP (5MM)

90312-MT3-000

$4.57

42

NUT, SPRING (6MM)

90320-MM5-000

$2.84

43

WASHER (6X20) WASHER, CHAIN CASE SETTING

90512-KF9-900

$3.06

43

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

44

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

45

CLIP, SNAP FITTING

90666-SD4-003

$5.03

46

CLIP, BODY COVER

90683-GR1-003

$2.92

47

SCREW, TAPPING (5X8)

93903-25080

$1.49

48

SCREW, TAPPING (5X12)

93903-25280

$1.49

49

NUT, FLANGE (6MM)

94050-06000

$1.49

50

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
