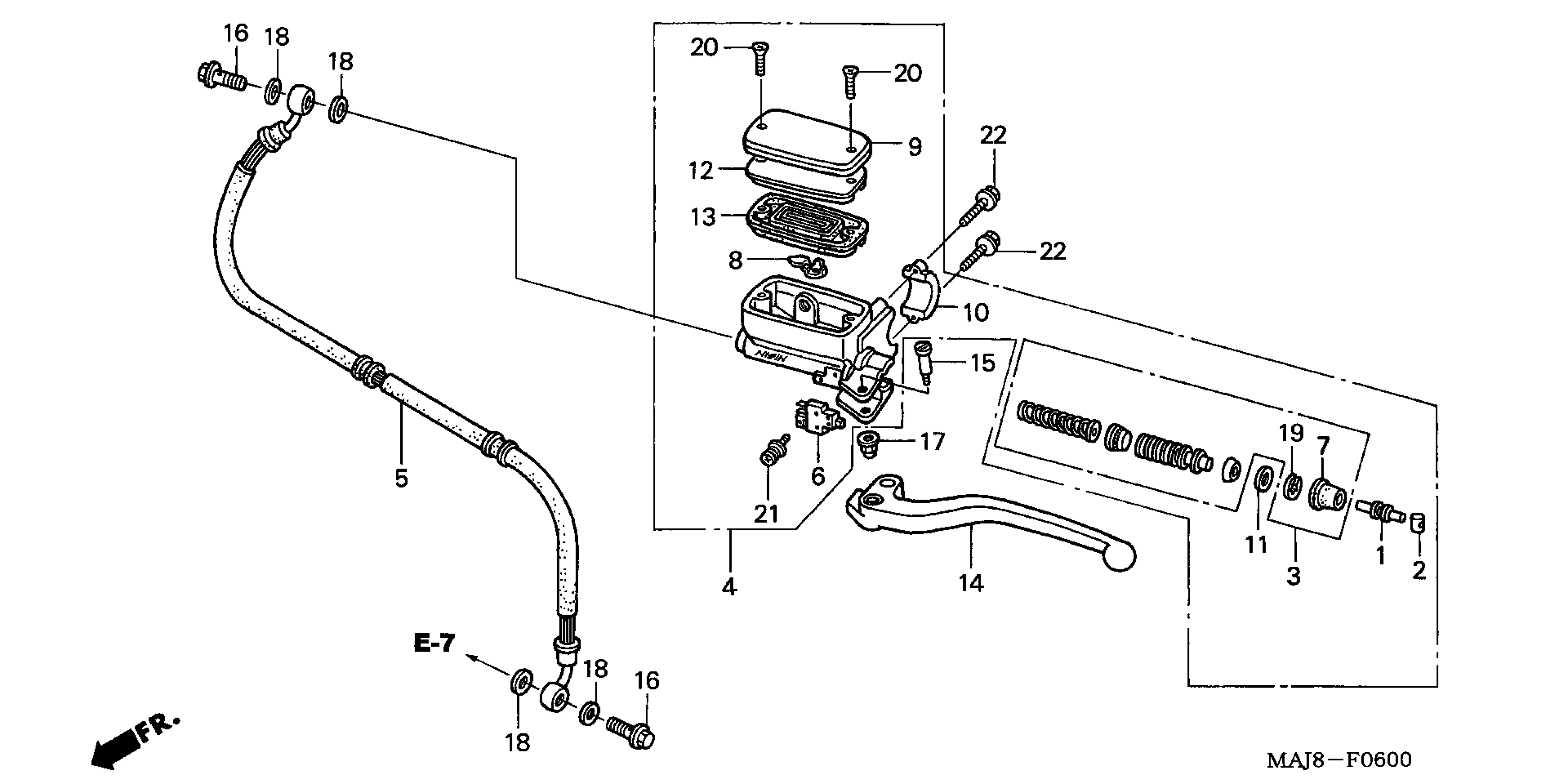

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$18.97

2

BUSH

22885-MB0-006

$11.88

3

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$68.24

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MZ2-305

Unavailable

5

HOSE, CLUTCH

22900-MAJ-830

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

7

BOOT

45504-410-003

$11.17

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.79

12

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

13

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

14

LEVER, L. HANDLEBAR

53178-KE8-006

$22.74

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

17

NUT, CAP (6MM)

90201-415-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

21

SCREW-WASHER (4X12)

93893-04012-07

$1.32

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
