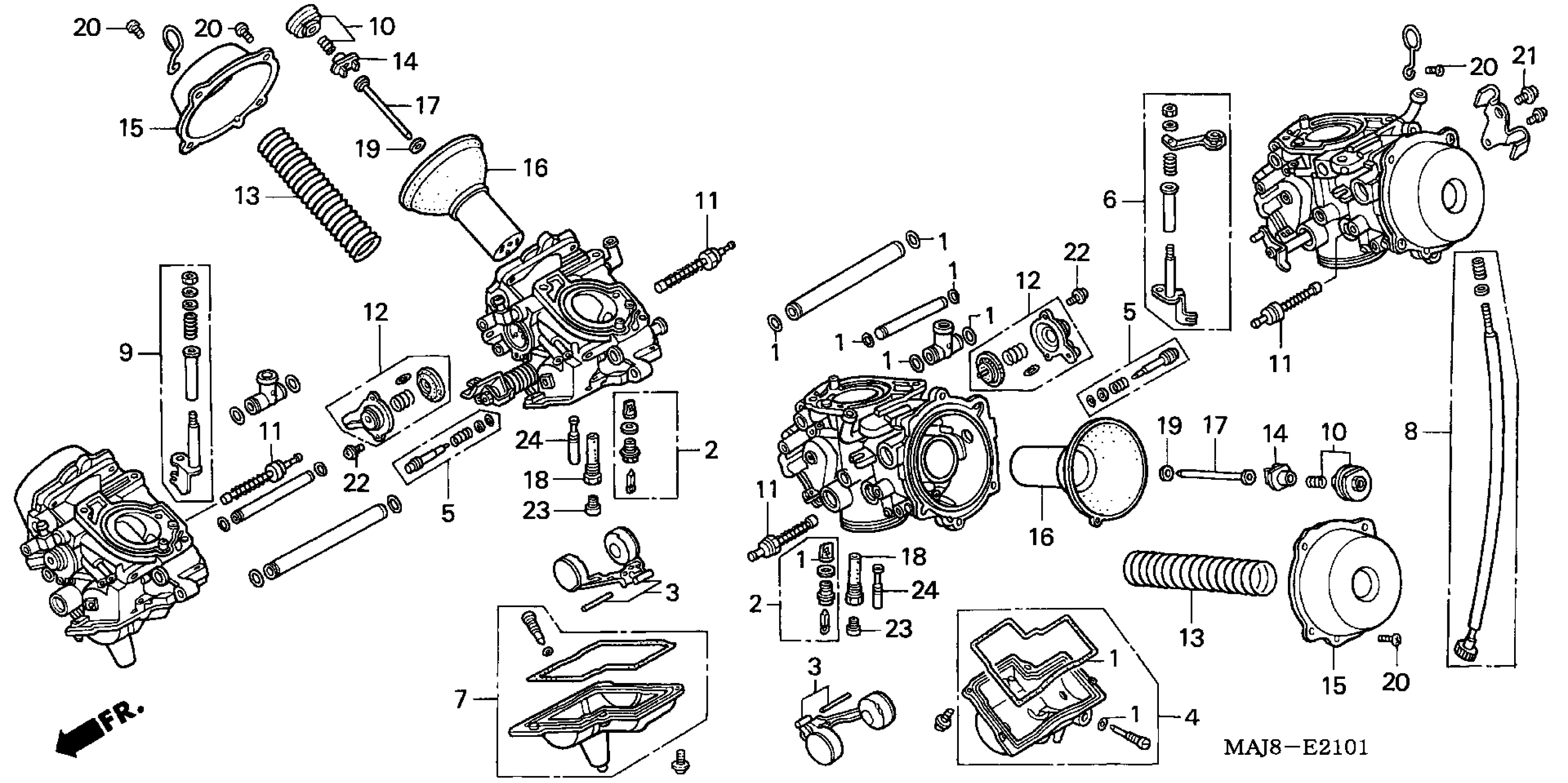

Honda ST1100PA (03) MOTORCYCLE, JPN, VIN# JH2SC026-3M300001 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET

16010-MAJ-D00

$43.03

1

GASKET SET This part replaces 16010-MT3-610.

16010-MAJ-D00

$43.03

2

VALVE SET, FLOAT

16011-MAJ-R00

$75.56

2

VALVE SET, FLOAT This part replaces 16011-MR5-672.

16011-MAJ-R00

$75.56

3

FLOAT SET

16013-MAH-000

$49.54

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT This part replaces 16015-MT3-610.

16015-MAJ-D00

Unavailable

5

SCREW SET

16016-MAJ-D00

Unavailable

5

SCREW SET This part replaces 16016-MT3-670.

16016-MAJ-D00

Unavailable

6

LINK B SET, STARTER

16018-MT3-610

Unavailable

7

CHAMBER SET, FLOAT

16023-MAJ-D00

$150.26

7

CHAMBER SET, FLOAT This part replaces 16023-MT3-610.

16023-MAJ-D00

$150.26

8

SCREW SET B This part replaces 16028-MT3-610.

16028-MAJ-R00

Unavailable

9

LINK B SET, STARTER

16031-ML7-921

$83.30

9

LINK B SET, STARTER This part replaces 16031-MR7-004.

16031-ML7-921

$83.30

10

PLATE SET

16037-MT3-610

Unavailable

11

VALVE SET, STARTER

16046-MG9-681

$69.54

12

VALVE SET, AIR CUT

16048-MM5-671

Unavailable

13

SPRING, VACUUM PISTON This part replaces 16050-KV0-721.

16050-KV0-671

Unavailable

14

COLLAR SET

16075-KAF-000

$11.98

15

TOP (NOT AVAILABLE)

16107-MT3-610

Unavailable

16

PISTON, VACUUM

16111-MT3-610

$183.15

17

NEEDLE, JET

16131-MT3-730

$33.54

18

HOLDER, NEEDLE JET

16165-MT3-610

Unavailable

19

WASHER, PLAIN

16178-MT3-610

$2.39

20

SCREW, PAN (4X10) SCREW, PAN (4X12)

93500-04010-0A

$1.49

20

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

21

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

21

SCREW, PAN (5X12)

93500-05012-0A

$1.49

21

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

21

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

22

SCREW-WASHER (4X8)

93892-04008-00

$1.49

22

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

23

JET, MAIN (#125) This part replaces 99101-GHB-1250.

99101-443-1250

$5.78

23

JET, MAIN (#125) This part replaces 99101-393-1250.

99101-443-1250

$5.78

23

JET, MAIN (#125)

99101-443-1250

$5.78

24

JET, SLOW (#38) This part replaces 99103-MT3-0380.

99103-MV9-0380

$11.73

24

JET, SLOW (#38)

99103-MV9-0380

$11.73
