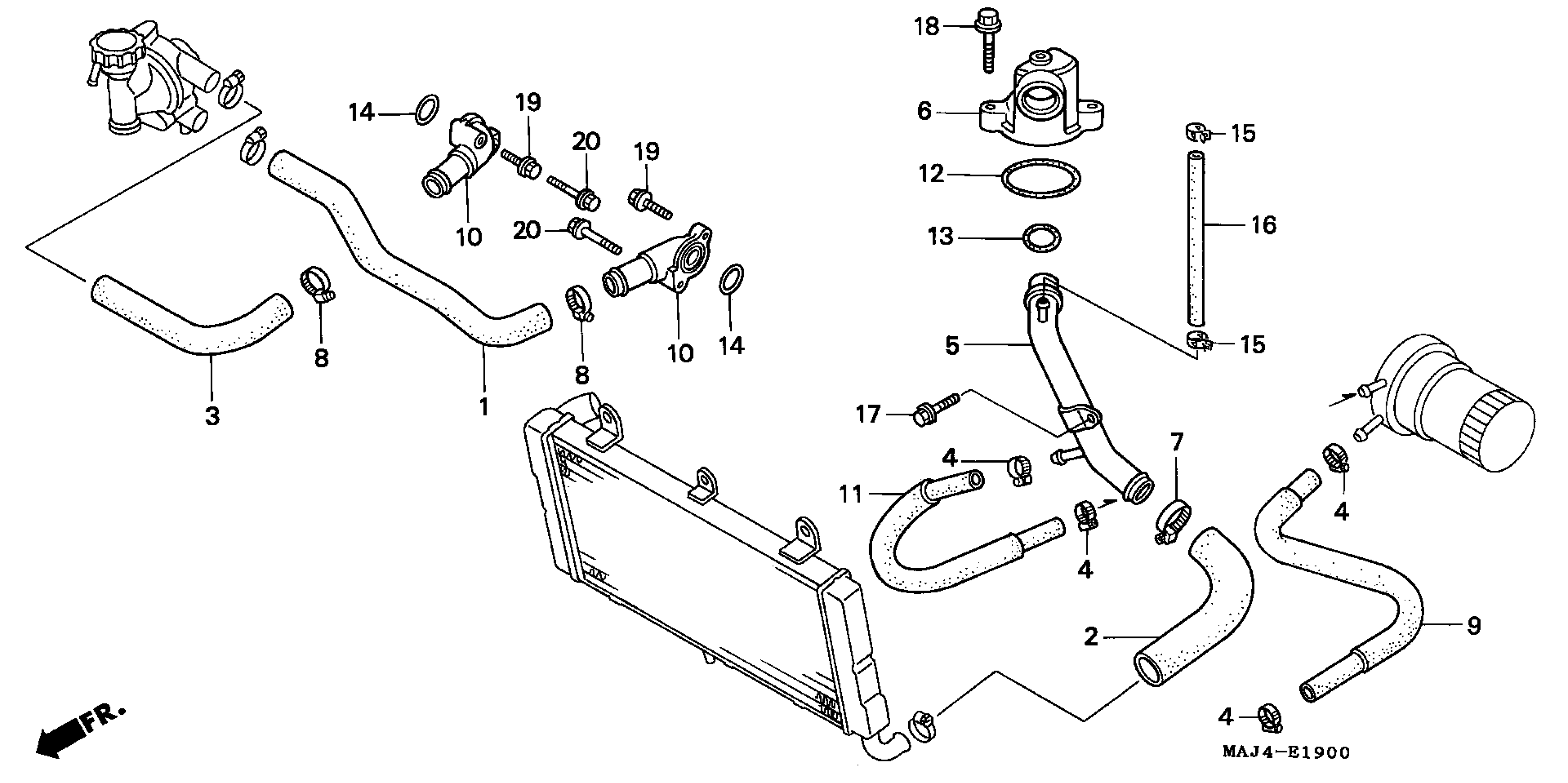

Honda ST1100AC (95) MOTORCYCLE, JPN, VIN# JH2SC261-SM500002 WATER PIPE Diagram

#

Description
Price

1

HOSE, L. THERMOSTAT

19504-MT3-000

$32.56

2

HOSE B, WATER

19505-MT3-000

$21.58

3

HOSE, R. THERMOSTAT

19506-MT3-000

$27.33

4

CLAMP, BREATHER HOSE

19507-MK4-620

$9.43

5

PIPE, WATER (NOT AVAILABLE)

19510-MT3-000

Unavailable

6

COVER, WATER

19514-MT3-000

Unavailable

7

CLAMP, WATER HOSE

19516-MB6-000

$14.41

8

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

9

HOSE, OIL COOLER (A) (NOT AVAILABLE)

19520-MT3-000

Unavailable

10

JOINT, WATER

19523-MT3-000

$13.84

11

HOSE, OIL COOLER (B) (NOT AVAILABLE)

19525-MT3-000

Unavailable

12

O-RING (47.5X2)

91311-KE8-000

$2.39

13

SEAL, WATER PIPE

91315-MT3-003

$4.26

14

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

15

CLAMP, TUBE (D10)

95002-41000-08

$2.41

16

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

17

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

20

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
