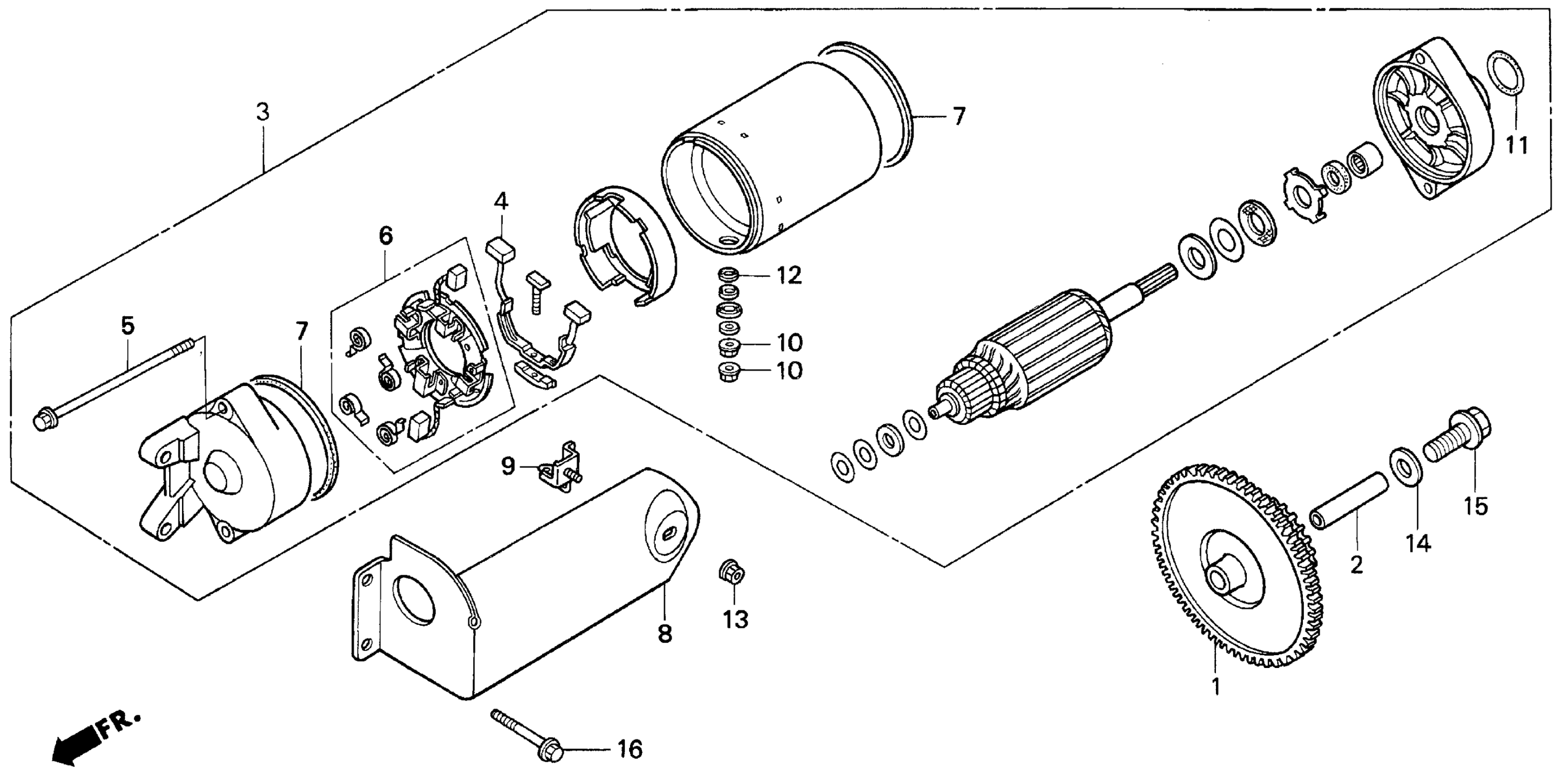

Honda ST1100AC (95) MOTORCYCLE, JPN, VIN# JH2SC261-SM500002 STARTER MOTOR Diagram

GEAR, STARTER REDUCTION (26T/93T)

28101-MT3-000

Unavailable

PIN (10X75)

28105-MT3-000

$13.57

MOTOR ASSY., STARTER (MITSUBA)

31200-MT3-003

$649.46

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING (Honda Code 2541985)

31207-KS5-901

$3.12

COVER, STARTER MOTOR (NOT AVAILABLE)

31207-MT3-000

Unavailable

STAY, HEAT GUARD

31209-MT3-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (12X30)

95701-12030-00

$2.24

BOLT, FLANGE (6X25)

95801-06025-00

$1.49
