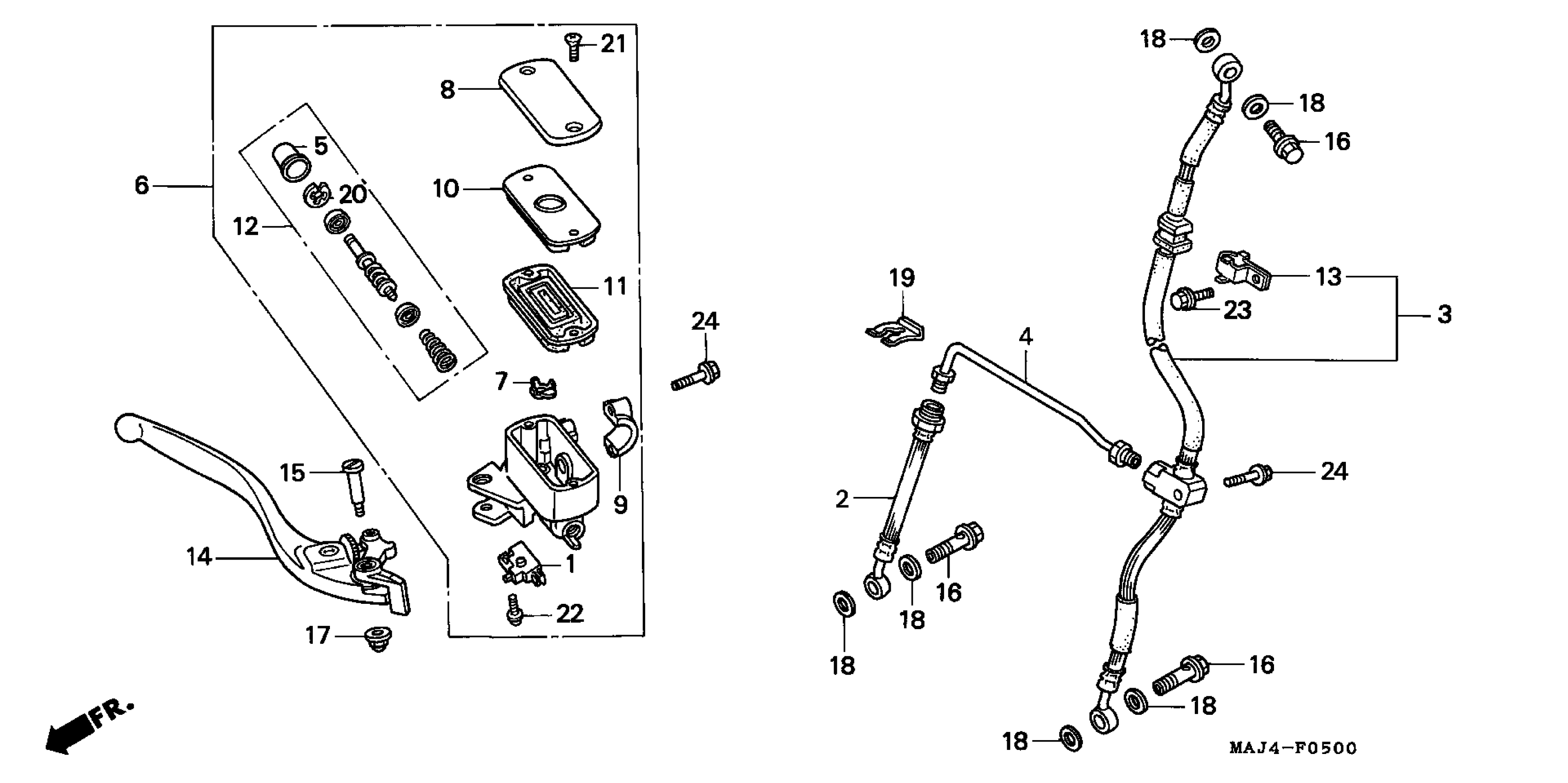

Honda ST1100AC (95) MOTORCYCLE, JPN, VIN# JH2SC261-SM500002 FR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45124-MT3-611

Unavailable

3

HOSE, FR. BRAKE (NOT AVAILABLE)

45125-MAJ-G01

Unavailable

4

PIPE, FR. BRAKE (NOT AVAILABLE)

45127-MT3-000

Unavailable

5

BOOT

45504-410-003

$11.17

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MAJ-G01

$281.56

7

PROTECTOR

45512-MA6-006

$4.09

8

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$20.57

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

9

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

10

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

11

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

12

MASTER CYLINDER SET

45530-MA4-671

$43.86

13

CLAMP, BRAKE HOSE

52115-ML8-670

$5.01

14

LEVER ASSY., R. HANDLE

53170-MZ1-831

Unavailable

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

16

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.99

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

17

NUT, CAP (6MM)

90201-415-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CLIP, BRAKE HOSE

90651-KV3-000

Unavailable

20

CIRCLIP

90651-MA5-671

$2.38

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

22

SCREW-WASHER (4X12)

93893-04012-07

$1.32

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

23

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

24

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
