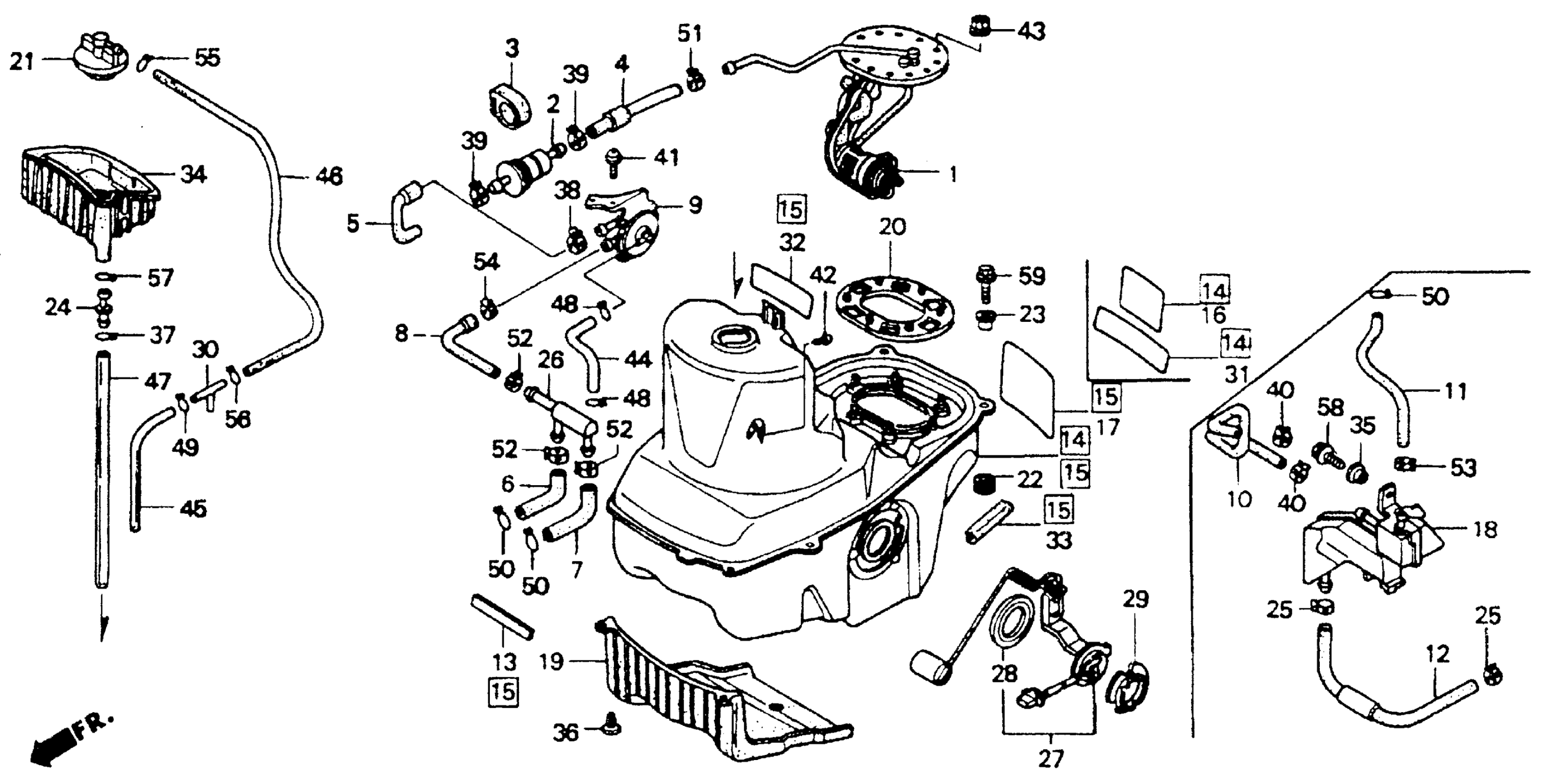

Honda ST1100AC (93) MOTORCYCLE, JPN, VIN# JH2SC261-PM300001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MT3-010

$757.52

1

PUMP ASSY., FUEL This part replaces 16700-MT3-000.

16700-MT3-010

$757.52

2

FILTER, FUEL

16900-MG8-003

$23.49

3

RUBBER, FUEL STRAINER

16905-MG7-000

$7.95

4

TUBE B, FUEL

16954-MT3-000

$16.28

5

TUBE C, FUEL

16955-MT3-000

$18.69

6

TUBE, R. FUEL

16956-MT3-000

$11.34

7

TUBE, L. FUEL

16957-MT3-000

Unavailable

8

TUBE D, FUEL

16958-MT3-000

Unavailable

9

PETCOCK ASSY., AUTO This part replaces 16970-MT3-000.

16970-MT3-013

$253.67

9

PETCOCK ASSY., AUTO This part replaces 16970-MT3-003.

16970-MT3-013

$253.67

13

RUBBER, BATTERY TRAY (A)

17509-MN5-000

$4.48

15

TANK, FUEL This part replaces 17510-MY3-000.

17510-MY3-010

Unavailable

15

TANK, FUEL

17510-MY3-010

Unavailable

17

TAPE, FUEL TANK PROTECTOR This part replaces 17539-MT3-300.

17539-MT3-310

Unavailable

17

TAPE, FUEL TANK PROTECTOR

17539-MT3-310

Unavailable

19

PROTECTOR, FUEL TANK HEAT

17570-MT3-000

Unavailable

20

GASKET, BASE

17574-MN5-000

$10.10

21

CAP, FUEL FILLER

17670-MT3-003

Unavailable

22

RUBBER, RADIATOR SETTING

19051-KA4-000

$3.80

23

COLLAR, RADIATOR SETTING

19052-MB0-000

$6.34

24

JOINT, TUBE

19102-KT8-000

$6.61

26

JOINT (THREE-WAY) (D)

19525-MT8-000

$10.20

27

FUEL UNIT

37800-MY3-781

Unavailable

28

GASKET, BASE

37801-689-000

$4.90

29

RETAINER, FUEL UNIT

37802-SD2-000

Unavailable

29

RETAINER, FUEL UNIT This part replaces 37802-689-000.

37802-SD2-000

Unavailable

32

TAPE, PROTECTOR

81229-MR5-000

$8.36

33

RUBBER, PROTECTOR

83171-MT3-300

$4.15

34

TRAY, FUEL TANK

83502-MT3-000

Unavailable

36

CLIP

90651-MT3-000

$2.87

37

CLAMP, TUBE (12.5MM) (B)

90661-GHB-610

$1.62

38

CLIP, FUEL HOSE

90678-MN5-000

$2.59

39

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

41

SCREW-WASHER (5X16)

93891-05016-07

$1.49

42

SCREW, TAPPING (4X6)

93901-24020

$1.49

43

NUT, FLANGE (6MM)

94050-06080

$1.49

44

BULK HOSE, FUEL (3.5X3000) (3.5X220)

95001-35003-60M

$20.85

47

BULK HOSE, FUEL (7.5X8000) (7.3X725)

95001-75008-60M

$103.82

48

CLIP, TUBE (B7)

95002-02070

$1.80

50

CLIP, TUBE (B12.5)

95002-02130

$1.49

51

CLIP, TUBE (D12)

95002-41200-04

$2.34

52

CLIP, TUBE (D12)

95002-41200-08

$2.34

54

CLIP, TUBE (D13)

95002-41300-08

$2.92

57

CLIP, TUBE (C12)

95002-80000

$1.49

59

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
