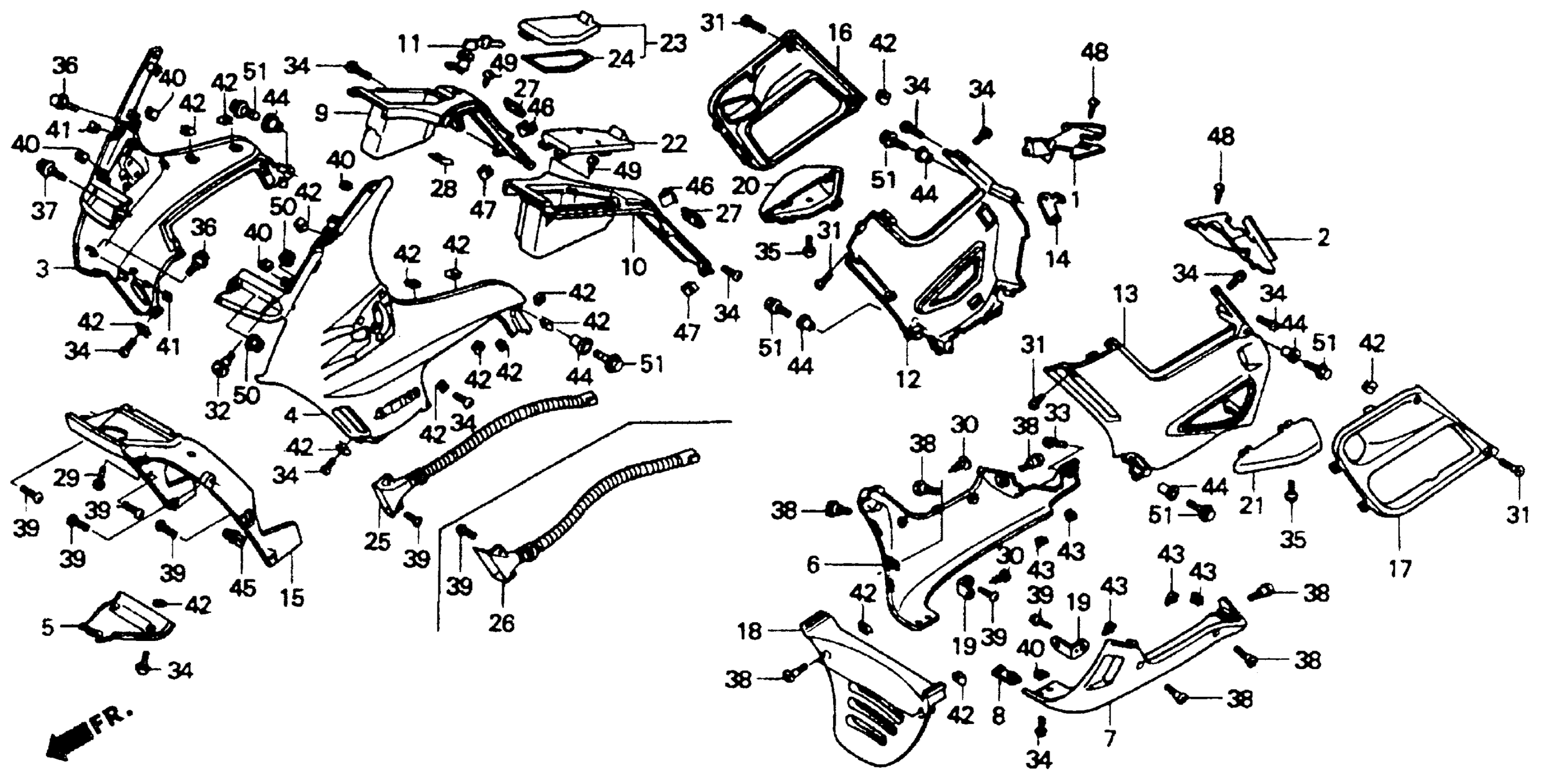

Honda ST1100AC (91) MOTORCYCLE, JPN, VIN# JH2SC261-MM100005 TO JH2SC261-MM100390 COWL Diagram

GUARD, R. FR. AIR

19070-MT3-000

Unavailable

GUARD, L. FR. AIR

19170-MT3-000

$46.90

COWL SET, R. (UPPER) *NH1* (BLACK) This part replaces 64200-MT3-670ZA.

64200-MT3-670ZF

Unavailable

COWL SET, R. (UPPER) *NH295M* (TYPE5) (SPARKLING SILVER METALLIC) This part replaces 64200-MT3-670ZC.

64200-MT3-670ZG

Unavailable

COWL SET, R. (UPPER) *NH295M* (TYPE5) (SPARKLING SILVER METALLIC) This part replaces 64200-MT3-670ZD.

64200-MT3-670ZG

Unavailable

COWL SET, R. (UPPER) *NH1* (BLACK) This part replaces 64200-MT3-670ZE.

64200-MT3-670ZF

Unavailable

COWL SET, R. (UPPER) *NH1* (BLACK)

64200-MT3-670ZF

Unavailable

COWL SET, R. (UPPER) *NH295M* (TYPE5) (SPARKLING SILVER METALLIC)

64200-MT3-670ZG

Unavailable

COWL SET, L. (UPPER) *NH1* (BLACK) This part replaces 64201-MT3-670ZA.

64201-MT3-670ZF

Unavailable

COWL SET *NH295M* This part replaces 64201-MT3-670ZC.

64201-MT3-670ZG

Unavailable

COWL SET, L. (UPPER) *NH1* (BLACK)

64201-MT3-670ZF

Unavailable

COVER, HEADLIGHT (LOWER) *NH1* (BLACK)

64215-MT3-000ZA

Unavailable

COVER, HEADLIGHT (LOWER) *NH1* (BLACK) This part replaces 64215-MT3-000ZC.

64215-MY3-000ZB

Unavailable

COWL, R. (LOWER) *NH285* (GUSTO GRAY)

64220-MT3-000ZA

$189.69

COWL, L. (LOWER) *NH285* (GUSTO GRAY)

64221-MT3-000ZA

$189.69

PLATE, COWL SETTING (LOWER)

64222-MT3-000

$4.66

POCKET, R. COWL *NH285* (GUSTO GRAY)

64225-MAJ-G00ZA

$196.25

POCKET, R. COWL *NH285* (GUSTO GRAY) This part replaces 64225-MT3-000ZA.

64225-MAJ-G00ZA

$196.25

POCKET, L. COWL *NH285* (GUSTO GRAY) This part replaces 64226-MT3-000ZA.

64226-MAJ-G00ZA

Unavailable

POCKET, L. COWL *NH285* (GUSTO GRAY)

64226-MAJ-G00ZA

Unavailable

POCKET, L. COWL *NH285* (GUSTO GRAY) This part replaces 64226-MT3-010ZA.

64226-MAJ-G00ZA

Unavailable

LOCK ASSY., POCKET LID

64228-MT3-003

$32.39

COWL, R. MIDDLE *NH1* (BLACK)

64230-MAJ-G50ZG

Unavailable

COWL, R. MIDDLE *NH295M* (SPARKLING SILVER METALLIC)

64230-MAJ-G50ZJ

Unavailable

COWL, R. MIDDLE *NH1* (BLACK) This part replaces 64230-MT3-000ZA.

64230-MAJ-G50ZG

Unavailable

COWL, R. MIDDLE *NH295M* (SPARKLING SILVER METALLIC) This part replaces 64230-MT3-000ZC.

64230-MAJ-G50ZJ

Unavailable

COWL, L. MIDDLE *NH1* (BLACK)

64231-MAJ-G50ZG

Unavailable

COWL, L. MIDDLE *NH295M* (SPARKLING SILVER METALLIC)

64231-MAJ-G50ZJ

Unavailable

COWL, L. MIDDLE *NH1* (BLACK) This part replaces 64231-MT3-000ZA.

64231-MAJ-G50ZG

Unavailable

COWL, L. MIDDLE *NH295M* (SPARKLING SILVER METALLIC) This part replaces 64231-MT3-000ZC.

64231-MAJ-G50ZJ

Unavailable

STAY, MIDDLE COWL

64233-MT3-000

$8.34

COWL, MIDDLE (INNER) *NH1* (BLACK)

64235-MT3-000ZA

Unavailable

COWL, MIDDLE (INNER) *NH295M* (SPARKLING SILVER METALLIC)

64235-MT3-000ZC

Unavailable

COVER, R. MAINTENANCE *NH295M* (SPARKLING SILVER METALLIC)

64245-MAJ-G50ZJ

Unavailable

COVER,R.MAIN*NH1* This part replaces 64245-MT3-000ZA.

64245-MAJ-G50ZG

$193.69

COVER, R. MAINTENANCE *NH295M* (SPARKLING SILVER METALLIC) This part replaces 64245-MT3-000ZC.

64245-MAJ-G50ZJ

Unavailable

COVER, L. MAINTENANCE *NH1* (BLACK)

64246-MAJ-A40ZG

Unavailable

COVER, L. MAINTENANCE *NH295M* (SPARKLING SILVER METALLIC)

64246-MAJ-A40ZJ

Unavailable

COVER, L. MAINTENANCE *NH1* (BLACK) This part replaces 64246-MT3-670ZA.

64246-MAJ-A40ZG

Unavailable

COVER, L. MAINTENANCE *NH295M* (SPARKLING SILVER METALLIC) This part replaces 64246-MT3-670ZC.

64246-MAJ-A40ZJ

Unavailable

PANEL, FR. *NH285* (GUSTO GRAY)

64255-MT3-000ZA

$156.30

STAY, COWL (LOWER)

64256-MT3-000

$4.18

COVER, R. ENGINE GUARD *NH285* (GUSTO GRAY)

64260-MT3-000ZA

$54.21

COVER, L. ENGINE GUARD *NH285* (GUSTO GRAY)

64261-MT3-000ZA

$54.21

LID, L. COWL POCKET *NH285* (GUSTO GRAY)

64271-MT3-010ZA

$34.52

LID, R. COWL POCKET *NH285* (GUSTO GRAY)

64272-MAJ-G00ZA

Unavailable

LID, R. COWL POCKET *NH285* (GUSTO GRAY) This part replaces 64272-MT3-000ZA.

64272-MAJ-G00ZA

Unavailable

SEAL, POCKET LID

64274-MT3-300

$6.79

DUCT, FRESH AIR IN.

64280-MT3-000

Unavailable

DUCT, FRESH AIR IN. | Use up to Frame SN MM100245

64280-MT3-000

Unavailable

CAP, MAINTENANCE *NH285* (GUSTO GRAY)

77121-MT3-000ZA

$9.32

SPRING, LOCK SETTING

77211-ME4-000

$7.16

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.48

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

SCREW, TAPPING (4X16)

93913-14280

$1.49

SCREW, TRUSS (5X16)

90103-MT3-000

$2.92

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

SCREW, PAN (6X11)

90106-KY2-701

$4.24

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

SCREW, TRUSS (5X16) | Use up to Frame SN MM100245

90109-SB6-000

$4.51

SCREW, TRUSS (5X16) | Use from Frame SN MM100246

90111-MT3-000

$6.34

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, FLANGE (6X16)

90113-MJ4-670

$4.41

SCREW, PAN (6X14)

90113-MM5-000

$3.10

SCREW, VISOR SETTING | Use up to Frame SN MM100245

90114-KW7-900

$2.92

SCREW, VISOR SETTING | Use from Frame SN MM100246

90114-KW7-900

$2.92

NUT, PLATE (5MM)

90305-MN5-000

$6.02

NUT, CLIP (6MM)

90311-MT3-000

$5.78

NUT, CLIP (5MM)

90312-MT3-000

$4.57

NUT, SPRING (6MM)

90320-MM5-000

$2.84

WASHER (6X20)

90512-KF9-900

$3.06

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

CLIP, SPLASH

90657-SB0-003

$5.26

CLIP, SNAP FITTING

90666-SD4-003

$5.03

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW, TAPPING (5X8)

93903-25080

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
