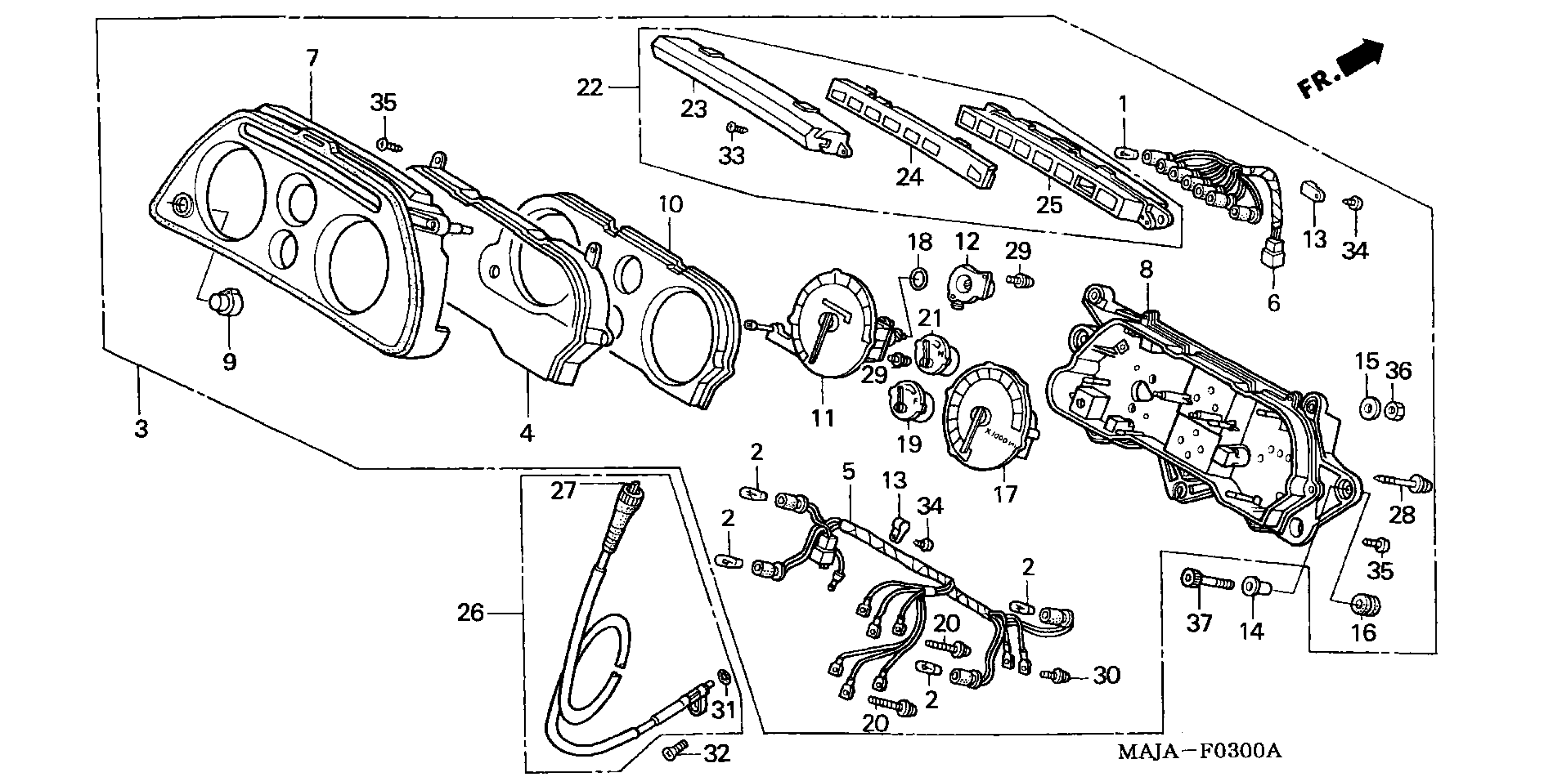

Honda ST1100AC (02) MOTORCYCLE, JPN, VIN# JH2SC261-2M200001 SPEEDOMETER (1) Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

3

METER ASSY., COMBINATION

37100-MAJ-A21

Unavailable

4

LENS ASSY., METER

37102-MS2-601

Unavailable

5

SOCKET

37105-MT3-003

$61.00

6

SOCKET, PILOT BOX

37106-MT3-003

Unavailable

7

VISOR ASSY.

37110-MY3-601

Unavailable

8

CASE ASSY.

37111-MT3-003

$95.07

9

KNOB

37112-MT3-003

Unavailable

10

PLATE, REFLECTING

37130-MM5-008

Unavailable

11

SPEEDOMETER ASSY. This part replaces 37200-MT3-672.

37200-MAJ-A31

Unavailable

12

BOSS, ELBOW

37211-MR7-008

Unavailable

13

CLAMP

37215-MB6-831

$2.65

14

COLLAR, SPEEDOMETER MOUNTING This part replaces 37243-KB7-960.

37243-KV3-830

$6.15

14

COLLAR, SPEEDOMETER MOUNTING

37243-KV3-830

$6.15

15

WASHER, PLAIN

37244-MA6-008

$2.15

16

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

17

TACHOMETER ASSY. (RPM) This part replaces 37250-MT3-672.

37250-MT3-602

Unavailable

18

SEAL

37264-MR7-008

$3.49

19

METER ASSY., FUEL

37300-MAJ-G21

$65.02

20

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

21

METER ASSY., TEMPERATURE

37400-MAJ-G21

$58.43

22

BOX ASSY., PILOT

37600-MAJ-A21

Unavailable

23

LENS, SMOKE

37601-MY3-781

Unavailable

24

PANEL

37602-MT3-003

Unavailable

25

CASE ASSY. (LOWER)

37603-MAJ-A21

Unavailable

26

CABLE ASSY., SPEEDOMETER

44830-MT3-000

$33.74

27

CABLE (INNER) This part replaces 44831-443-720.

44831-MM5-000

Unavailable

28

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

29

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

30

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

31

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

31

O-RING (6.8X1.9) O-RING B (6.8X1.9)

91306-PJ4-000

$3.01

31

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

32

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

33

SCREW, TAPPING (4X16)

93901-24410

$1.49

34

SCREW, TAPPING (4X12)

93913-24320

$1.49

35

SCREW, TAPPING (4X20)

93903-24520

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

BOLT, SOCKET (6X25)

96600-06025-00

$1.89
