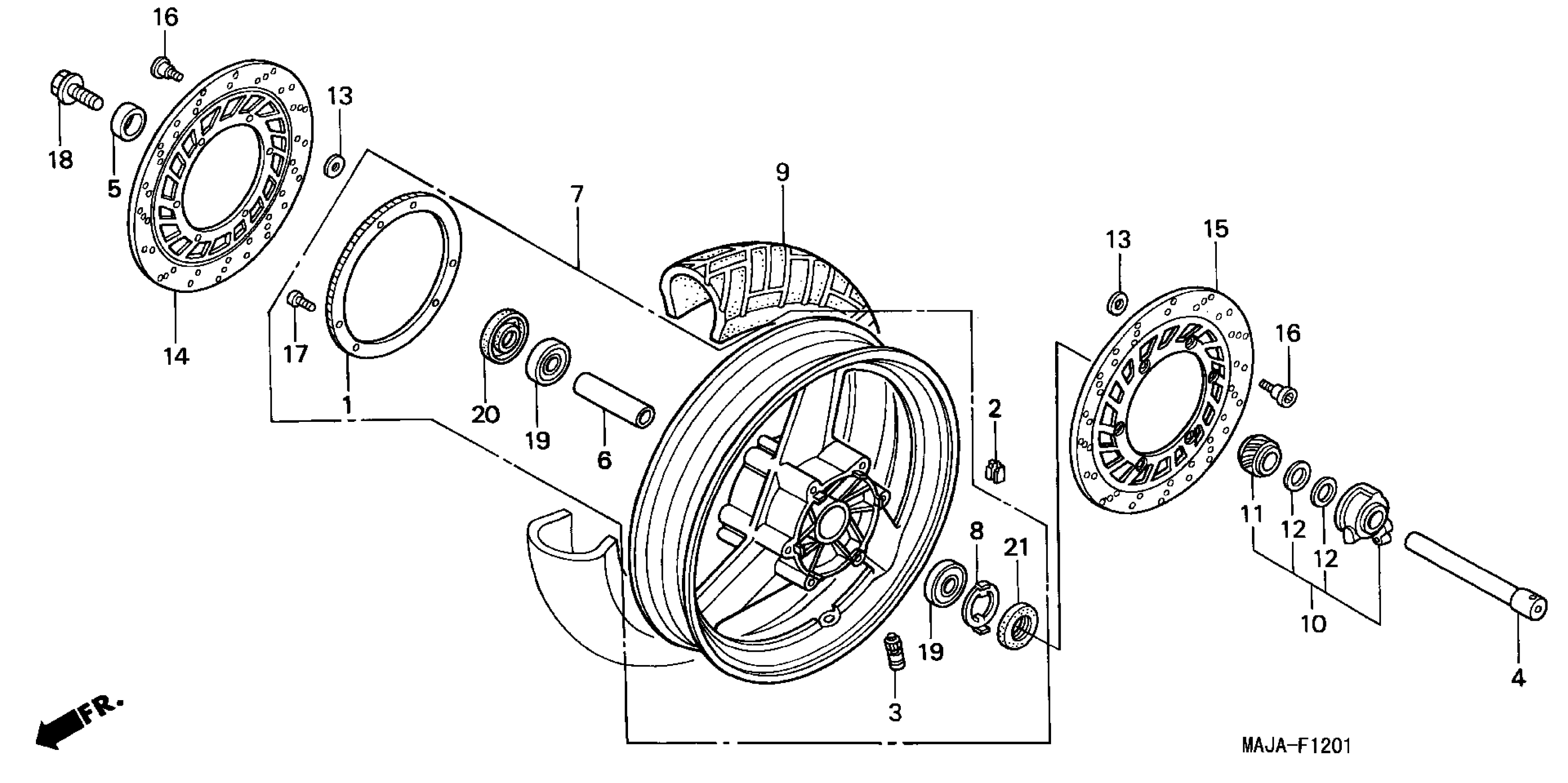

Honda ST1100AAC (01) MOTORCYCLE, JPN, VIN# JH2SC264-1M100001 FRONT WHEEL (2) Diagram

RING, PULSER (NOT AVAILABLE)

42515-MY3-780

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MT3-000

$109.34

COLLAR, FR. WHEEL SIDE This part replaces 44312-KV3-700.

44312-MZ1-610

$11.31

COLLAR, FR. WHEEL SIDE

44312-MZ1-610

$11.31

COLLAR, FR. WHEEL DISTANCE

44620-MZ5-E00

Unavailable

WHEEL SET, FR. (SOURCE: VINTAGE PARTS INC.) This part replaces 44650-MAJ-G41.

44650-MAJ-G42

Unavailable

WHEEL SET, FR. (SOURCE: VINTAGE PARTS INC.)

44650-MAJ-G42

Unavailable

RETAINER, GEAR BOX

44680-ML7-000

$5.08

TIRE, FR. (120/70ZR17) (BS) (NOT AVAILABLE)

44711-MAJ-G43

Unavailable

TIRE (120/70ZR17) This part replaces 44711-MAJ-G44.

44711-MAJ-G46

Unavailable

BOX ASSY., SPEEDOMETER GEAR

44800-ML7-691

Unavailable

GEAR, SPEEDOMETER

44806-ML7-691

Unavailable

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

SHIM, DAMPING

45128-ME2-003

$4.13

DISK, R. FR. BRAKE

45251-MS2-010

Unavailable

DISK, FR. BRAKE

45351-MS8-020

Unavailable

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, TORX (5X14)

90131-MY3-781

$2.89

BOLT, FR. AXLE This part replaces 90305-KT8-000.

90305-ML7-000

$10.50

BOLT, FR. AXLE

90305-ML7-000

$10.50

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MZ2-A21.

91052-MAE-004

$27.50

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
