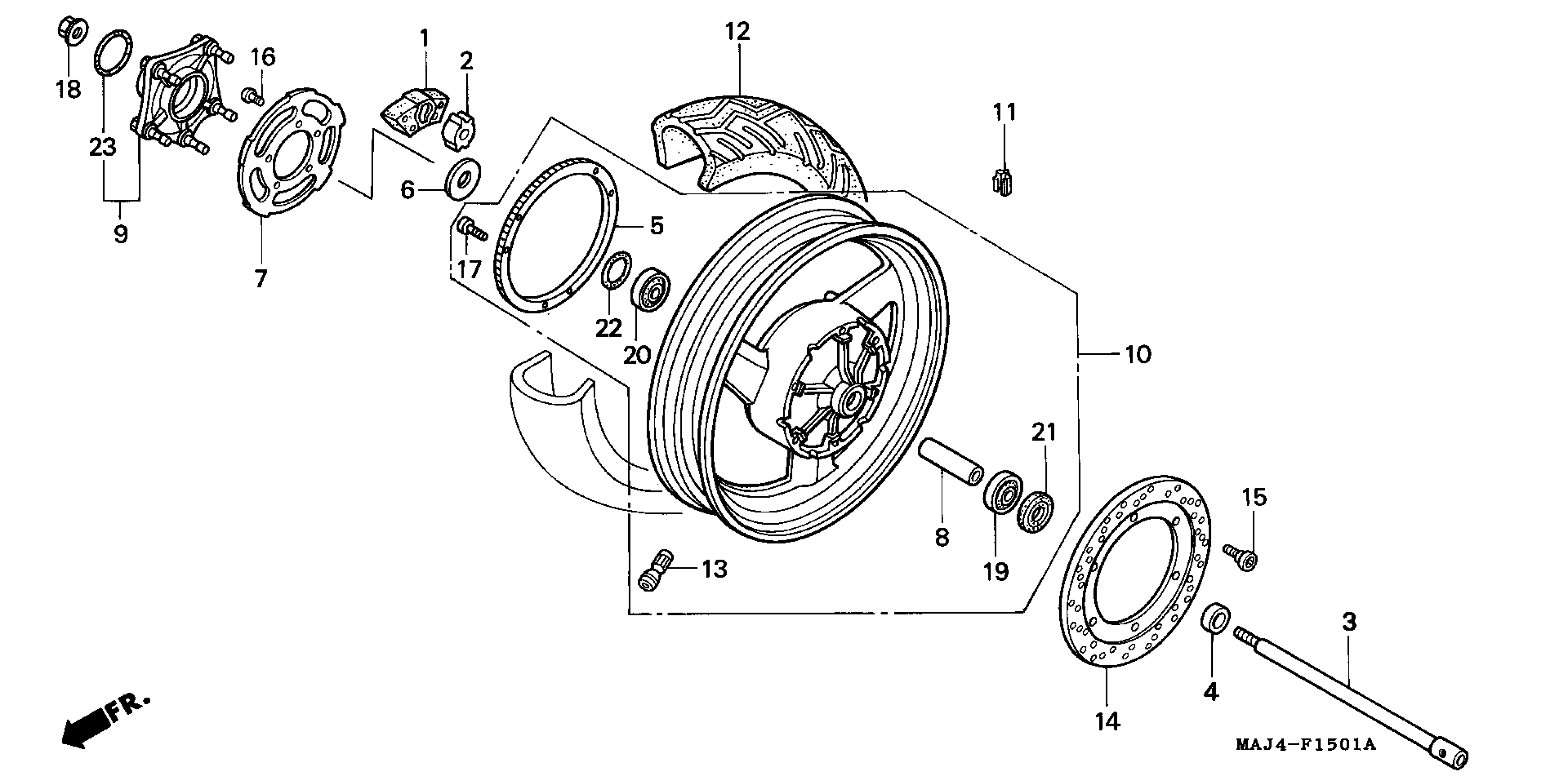

Honda ST1100AA (98) MOTORCYCLE, JPN, VIN# JH2SC263-WM400001 REAR WHEEL Diagram

RUBBER, RR. WHEEL DAMPER

41241-MT3-003

$24.68

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

AXLE, RR. WHEEL

42301-MM8-000

Unavailable

COLLAR, RR. BRAKE SIDE

42312-MAE-010

$22.45

RING, PULSER (NOT AVAILABLE)

42515-MY3-780

Unavailable

WASHER, THRUST

42616-MAJ-G20

$7.32

HOLDER, DAMPER

42617-MT3-000

$38.36

COLLAR, RR. AXLE DISTANCE

42620-MT3-000

$22.56

FLANGE SET, FINAL DRIVEN

42630-MT8-305

$309.64

WHEEL SET, RR. (SOURCE: VINTAGE PARTS INC.) This part replaces 42650-MAJ-G40.

42650-MAJ-G41

Unavailable

WHEEL SET, RR. (SOURCE: VINTAGE PARTS INC.)

42650-MAJ-G41

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

TIRE, RR. (160/70ZR17) (BS) (NOT AVAILABLE)

42711-MAJ-G43

Unavailable

TIRE, RR. (160/70ZR17) (DUNLOP) (NOT AVAILABLE)

42711-MAJ-G44

Unavailable

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

DISK, RR. BRAKE

43351-MAJ-G40

Unavailable

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, DISK (6X17) (SAGA)

90106-MT3-003

$3.80

BOLT, TORX (5X14)

90131-MY3-781

$2.89

NUT, FLANGE (18MM)

90306-MN5-003

$29.23

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76
