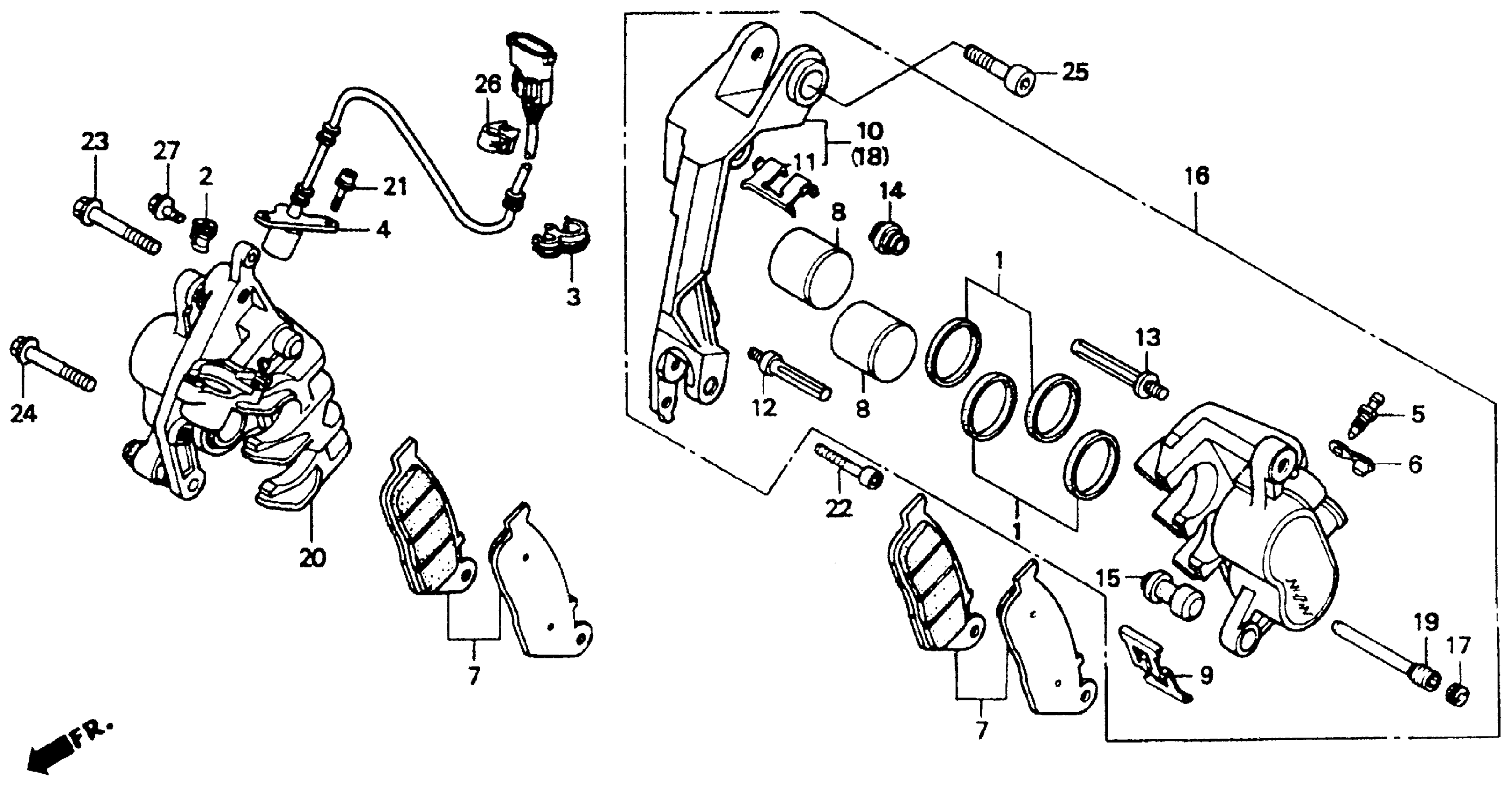

Honda ST1100AA (95) MOTORCYCLE, JPN, VIN# JH2SC263-SM100001 FR. BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

CLIP B, TUBE

16106-KW7-900

$2.92

3

CLAMP, PIPE

17368-KV7-671

$2.22

4

SENSOR, FR. WHEEL SPEED (NOT AVAILABLE)

38520-MAJ-781

Unavailable

5

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

6

CAP, BLEEDER

43353-461-771

$5.05

7

PAD SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK)

45105-ML7-405

$56.67

8

PISTON (NISSIN)

45107-ML4-006

$37.87

9

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

10

BRACKET, L. FR. (NISSIN) (NOT AVAILABLE)

45110-MY3-691

Unavailable

11

RETAINER

45112-ML7-921

$5.46

12

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

13

BOLT, PIN

45131-166-016

$7.63

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

16

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN) (NOT AVAILABLE)

45150-MY3-305

Unavailable

17

PLUG, PIN

45203-MG3-016

$5.12

18

BRACKET, R. FR. (NISSIN) (SOURCE: VINTAGE PARTS INC.)

45210-MY3-691

Unavailable

19

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

20

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN) (NOT AVAILABLE)

45250-MY3-305

Unavailable

21

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.99

22

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

23

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49

24

BOLT, FLANGE (8X35)

90107-MY3-780

$8.10

25

BOLT, SOCKET (8X36)

90131-ML7-000

$5.44

26

CLIP, CABLE STUD

91501-SH4-003

$5.28

27

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
