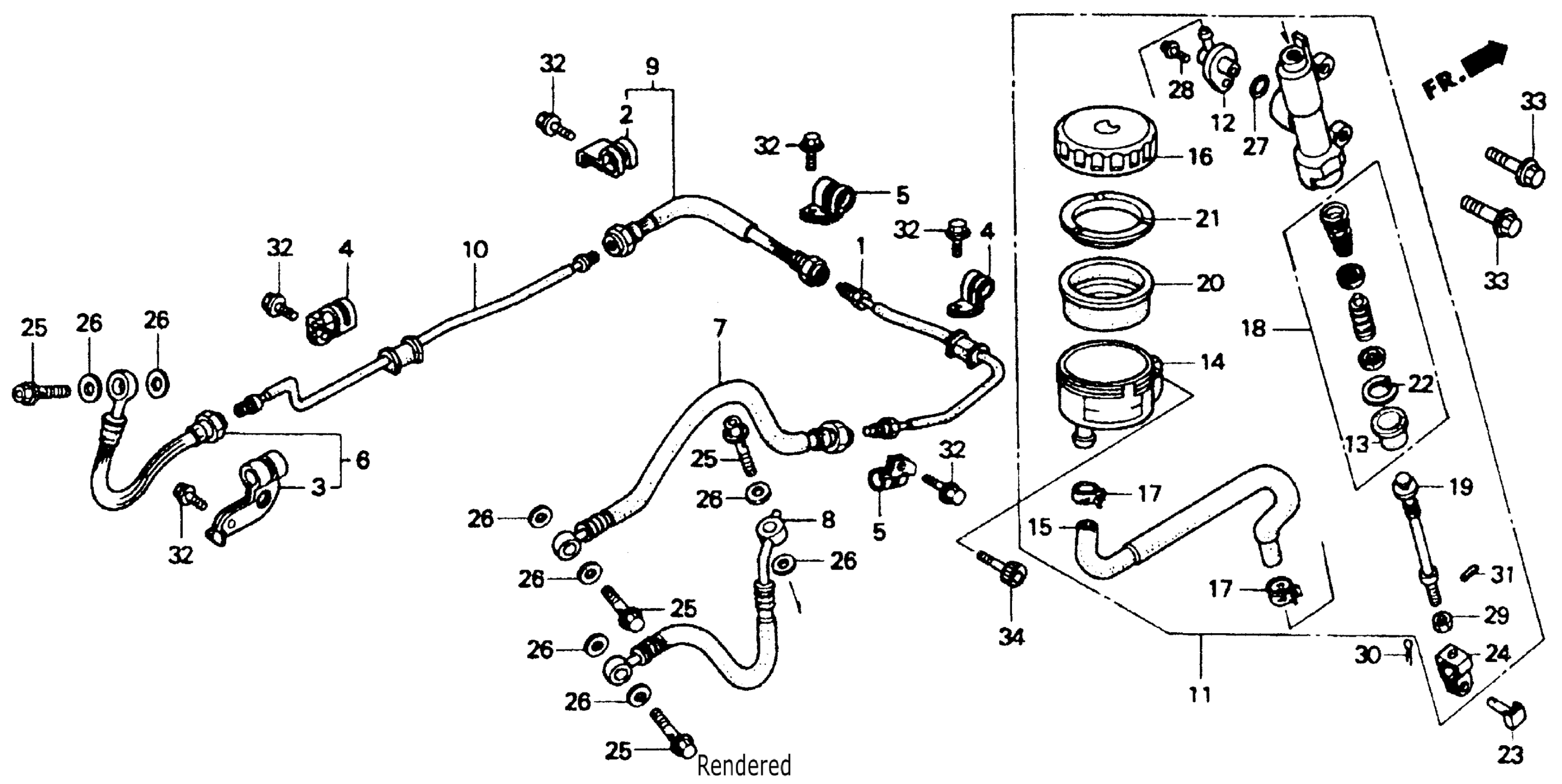

Honda ST1100AA (94) ABS-TCS, JPN, VIN# JH2SC263-RM400001 REAR BRAKE MASTER CYLINDER 1100A Diagram

#

Description
Price

1

PIPE B, RR. BRAKE

43115-MY3-780

Unavailable

2

CLAMP, RR. BRAKE HOSE (A)

43156-MN5-000

Unavailable

3

CLAMP, RR. BRAKE HOSE

43157-MT3-000

Unavailable

4

CLAMP, RR. BRAKE PIPE

43158-MT3-000

$6.35

5

CLAMP, RR. BRAKE HOSE (C)

43159-MY3-780

Unavailable

6

HOSE, RR. BRAKE (A)

43310-MT3-003

Unavailable

7

HOSE A, RR. BRAKE

43311-MY3-781

Unavailable

8

HOSE C, RR. BRAKE

43312-MY3-781

Unavailable

9

HOSE B, RR. BRAKE

43313-MY3-781

Unavailable

10

PIPE, RR. BRAKE

43314-MT3-000

Unavailable

11

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-MY3-781

Unavailable

12

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

13

BOOT

43504-MB2-006

$9.01

14

CUP, MASTER CYLINDER OIL

43511-MT3-006

$32.22

15

HOSE, MASTER CYLINDER

43512-MY3-781

Unavailable

16

CAP, OIL CUP

43513-MB4-672

Unavailable

17

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

18

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

19

ROD, PUSH (NISSIN)

43530-MY3-781

Unavailable

20

DIAPHRAGM

45520-300-000

$8.13

21

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

22

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.46

23

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$3.95

23

PIN D, JOINT

95015-54000

$3.95

24

JOINT, BRAKE ROD

46504-MT8-006

$8.25

25

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

25

BOLT, OIL (10X22)

90145-MS9-612

$6.82

26

WASHER, OIL BOLT

90545-300-000

$3.72

27

O-RING (14.8X2.4)

91212-422-006

Unavailable

28

SCREW-WASHER (4X12)

93893-04012-08

$1.22

28

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

29

NUT, HEX. (8MM)

94002-08000-0S

$1.19

30

PIN, COTTER (2.0X15)

94201-20150

$0.94

31

PIN, SPRING (2X10)

94305-20102

$0.80

32

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

33

BOLT, FLANGE (6X25)

95701-06025-08

$1.64

34

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
