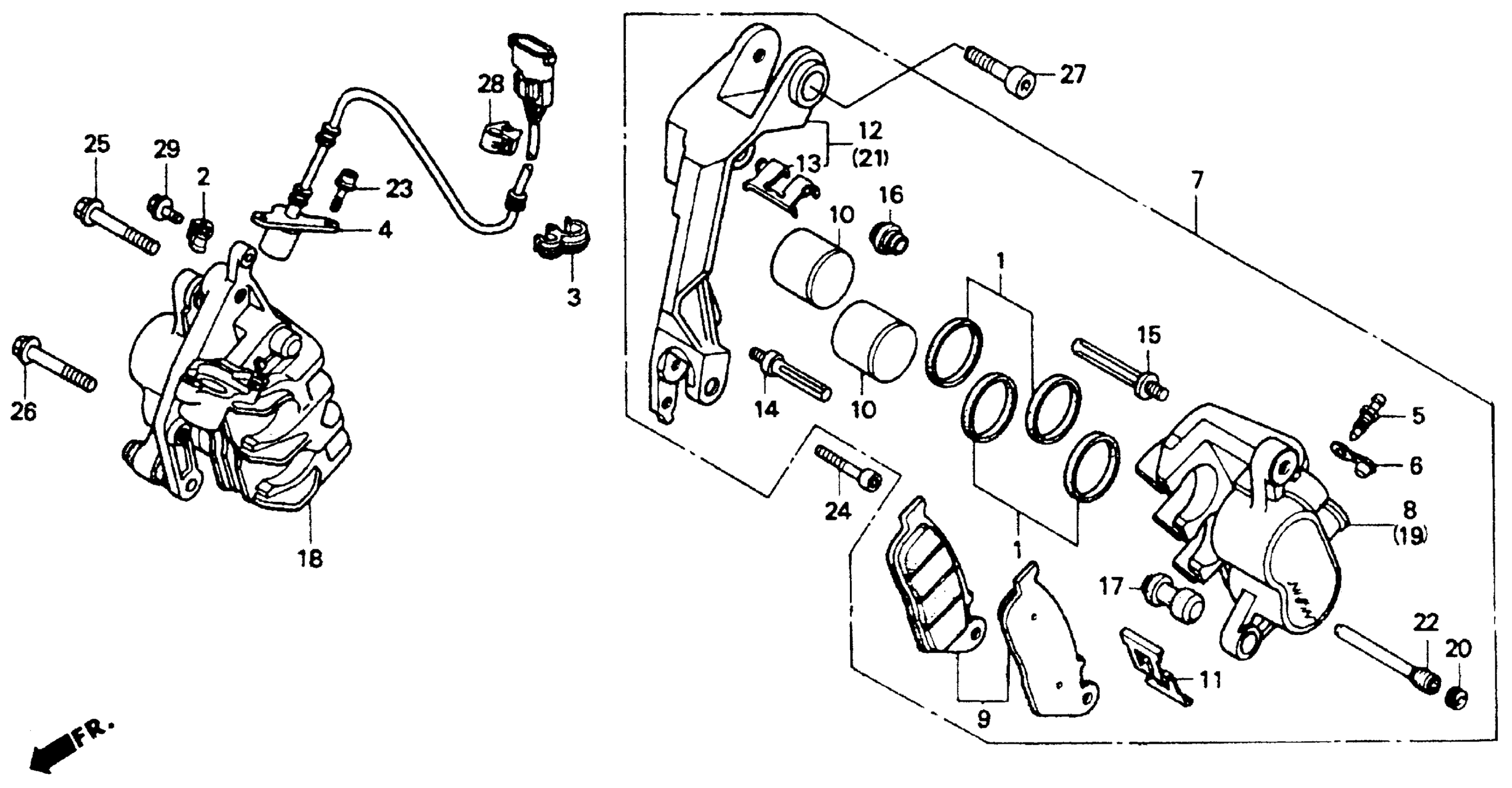

Honda ST1100AA (94) ABS-TCS, JPN, VIN# JH2SC263-RM400001 FRONT BRAKE CALIPER 1100A Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$6.82

2

CLIP B, TUBE

16106-KW7-900

$2.80

3

CLAMP, PIPE

17368-KV7-671

$2.12

4

SENSOR, FR. WHEEL SPEED This part replaces 38520-MAJ-780.

38520-MAJ-781

Unavailable

4

SENSOR, FR. WHEEL SPEED

38520-MAJ-781

Unavailable

5

SCREW, BLEEDER

43352-568-003

$7.39

6

CAP, BLEEDER

43353-461-771

$4.70

7

CALIPER ASSY., L. FR. (NISSIN)

45100-MY3-691

Unavailable

9

PAD SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK)

45105-ML7-405

$49.40

10

PISTON (NISSIN)

45107-ML4-006

$34.00

11

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

12

BRACKET, L. FR. (NISSIN)

45110-MY3-691

Unavailable

13

RETAINER

45112-ML7-921

$5.07

14

BOLT A, PIN (NISSIN)

45131-ML7-921

$13.86

15

PIN, BOLT

45131-166-016

$7.10

16

BOOT B

45133-MA3-006

$5.07

17

BUSH, PIN

45132-166-016

$5.07

18

CALIPER ASSY., R. FR. (NISSIN)

45200-MY3-691

Unavailable

20

PLUG, PIN

45203-MG3-016

$4.76

21

BRACKET, R. FR. (NISSIN)

45210-MY3-691

Unavailable

22

PIN, HANGER (NISSIN)

45215-ML7-922

$9.51

23

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.80

24

BOLT, SOCKET (6X25)

90105-MJ1-000

Unavailable

25

BOLT, FLANGE (8X32)

90107-MT3-003

$4.18

26

BOLT, FLANGE (8X35)

90107-MY3-780

$7.38

27

BOLT, SOCKET (8X36)

90131-ML7-000

$5.07

28

CLIP, CABLE STUD

91501-SH4-003

$4.81

29

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
