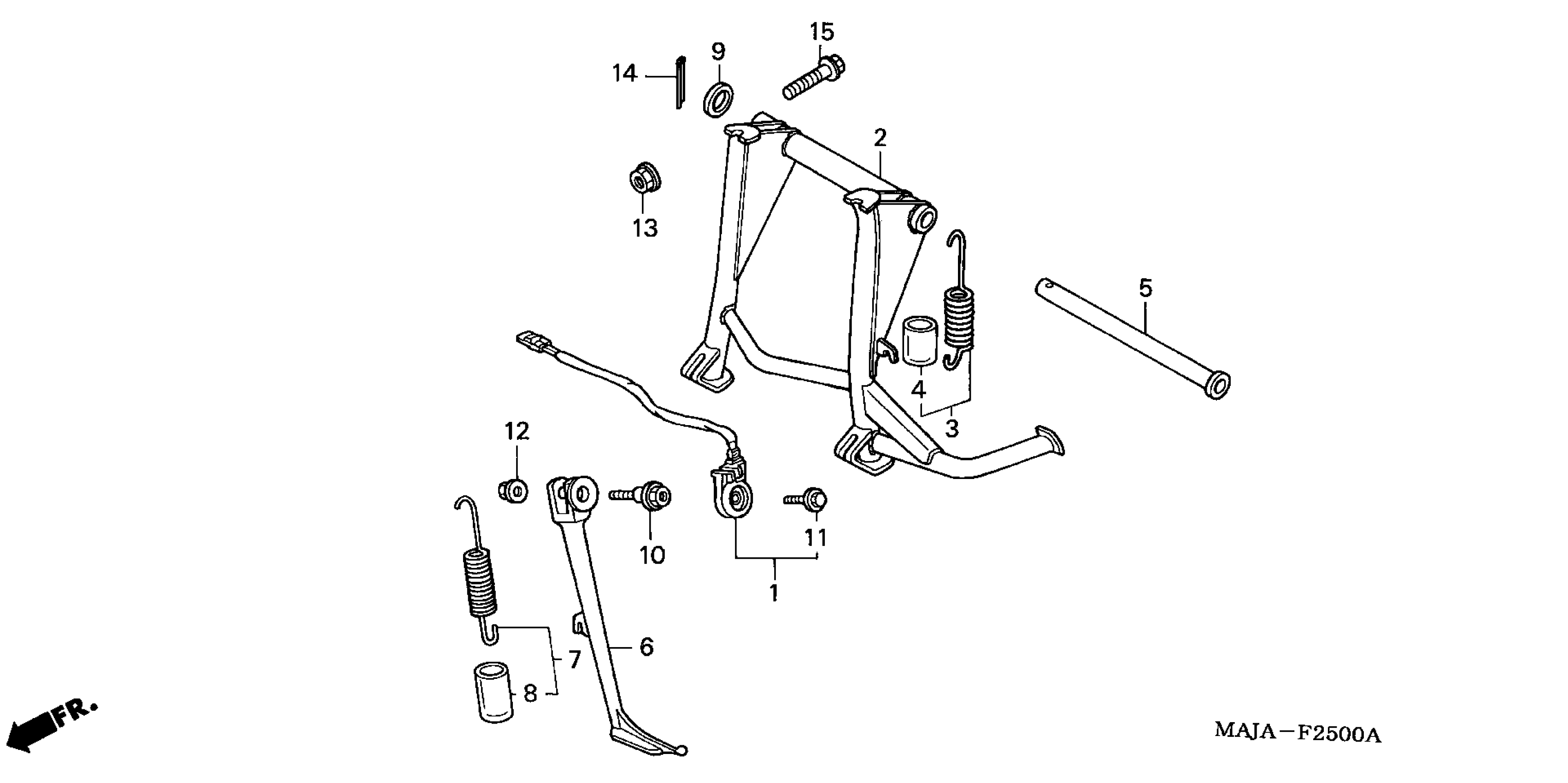

Honda ST1100AA (02) MOTORCYCLE, JPN, VIN# JH2SC263-2M300001 STAND Diagram

SWITCH SET, SIDE STAND

35700-MT3-305

Unavailable

STAND, MAIN

50500-MT3-010

Unavailable

SPRING ASSY., MAIN STAND

50520-MT3-601

$15.16

TUBE, MAIN STAND SPRING

50524-MT3-601

$4.54

PIPE, MAIN STAND PIVOT

50526-MT3-000

Unavailable

BAR, SIDE STAND

50530-MY3-000

Unavailable

SPRING ASSY., SIDE STAND

50540-MT3-611

Unavailable

TUBE, SIDE STAND SPRING

50543-MT3-611

$3.33

PLATE, PILLION FOOTPEG SIDE

50713-KC1-700

$3.04

BOLT, SIDE STAND PIVOT

90108-MR5-000

$8.00

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

NUT, SIDE STAND

90203-MF9-710

$3.67

NUT, FLANGE (8MM)

94050-08070

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
