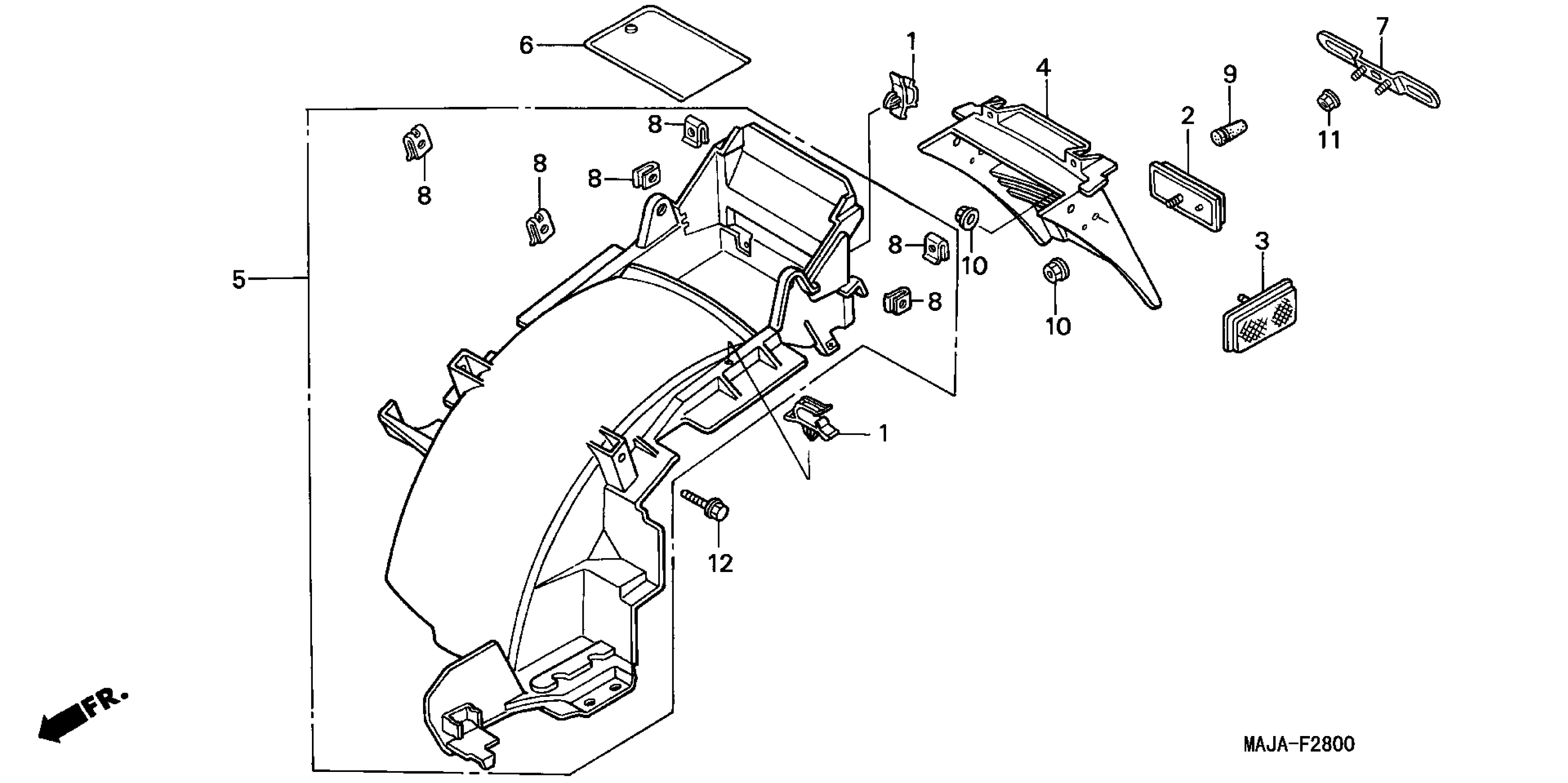

Honda ST1100AA (02) MOTORCYCLE, JPN, VIN# JH2SC263-2M300001 REAR FENDER Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32171-GJ1-003

$3.33

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

3

REFLECTOR, REFLEX

33742-KV0-760

$28.75

4

FENDER A, RR.

80100-MT3-670

Unavailable

5

FENDER B, RR.

80106-MY3-000

$167.10

6

BAG, OWNER'S MANUAL

83642-MN5-000

$15.15

7

BRACKET, NUMBER PLATE

84701-MT3-670

Unavailable

8

NUT, CLIP (6MM)

90305-KT7-000

$3.79

9

PLUG, CONE TYPE

90899-422-610

$1.84

10

NUT, FLANGE (5MM)

94050-05000

$1.21

11

NUT, FLANGE (6MM)

94050-06080

$0.60

12

BOLT, FLANGE (6X16)

95701-06016-08

$1.34
