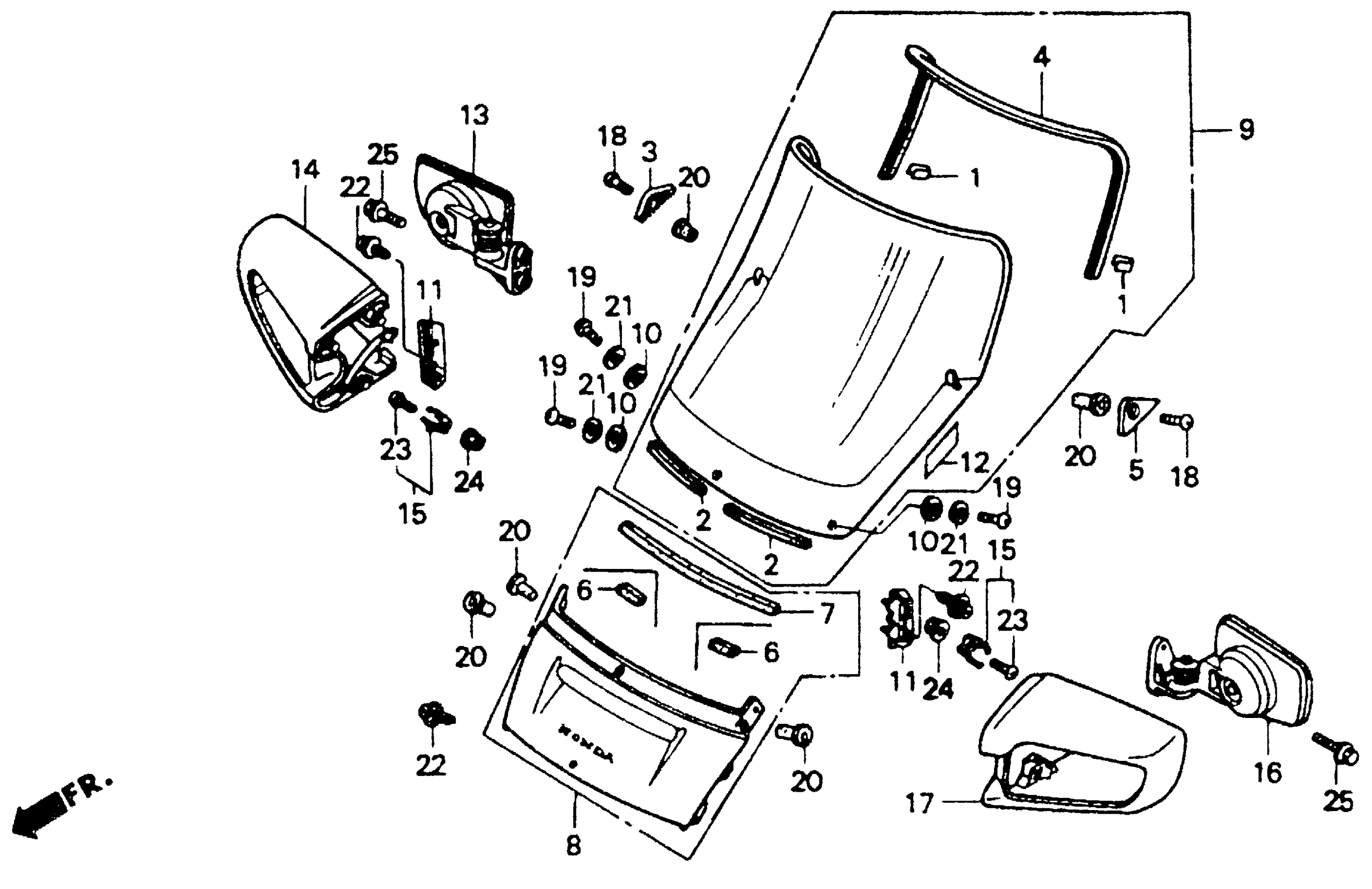

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 WINDSCREEN Diagram

#

Description
Price

1

CLIP, SCREEN MOLDING

64102-MJ0-000

$5.01

2

RUBBER, WINDSCREEN

64102-MT3-300

Unavailable

3

CAP, SCREEN SETTING SCREW

64105-MT3-000

Unavailable

4

MOLDING, WINDSCREEN

64106-MY3-000

Unavailable

5

CAP, SCREEN SETTING SCREW

64115-MT3-000

Unavailable

7

MAT, SCREEN GARNISH

64121-MY3-300

Unavailable

8

GARNISH SET, SCREEN *NH1* (WL) (BLACK)

64125-MY3-000ZB

Unavailable

9

WINDSCREEN SET (WL)

64150-MY3-671

Unavailable

10

WASHER, SCREEN SETTING

64205-166-610

$2.21

11

SPACER, MIRROR COVER INSIDE *NH1Z* (BLACK-Z)

64218-MT3-000ZM

Unavailable

13

MIRROR ASSY., R.

88110-MAJ-G01

$183.18

13

MIRROR ASSY., R. This part replaces 88110-MT3-003.

88110-MAJ-G01

$183.18

14

COVER, R. MIRROR *NH1Z* (BLACK-Z)

88111-MT3-003ZM

Unavailable

15

WASHER, MIRROR SETTING SPRING

88115-MT3-000

$6.82

16

MIRROR ASSY., L.

88120-MAJ-G01

$183.18

16

MIRROR ASSY., L. This part replaces 88120-MT3-003.

88120-MAJ-G01

$183.18

17

COVER, L. MIRROR *NH1Z* (BLACK-Z)

88121-MT3-003ZM

Unavailable

18

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

19

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

20

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

21

WASHER, THRUST (5MM)

90504-964-000

$1.90

22

CLIP

90651-MT3-000

$2.87

23

SCREW, PAN (5X12)

93500-05012-0A

$1.49

24

NUT, FLANGE (5MM)

94050-05000

$1.49

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
