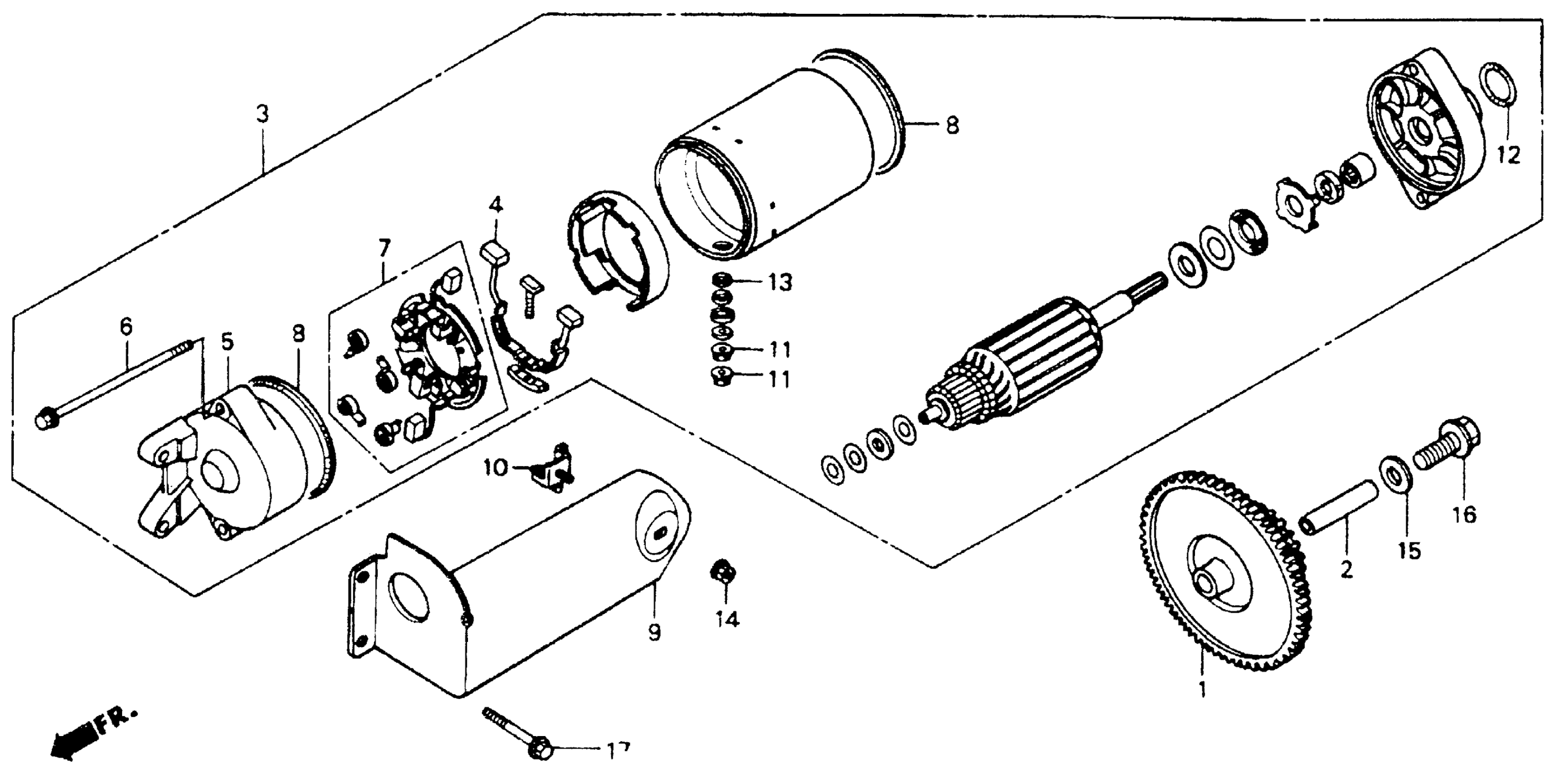

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 STARTING MOTOR Diagram

GEAR, STARTER REDUCTION (26T/93T)

28101-MT3-000

Unavailable

PIN (10X75)

28105-MT3-000

$12.36

MOTOR ASSY., STARTER (MITSUBA)

31200-MT3-003

$574.16

TERMINAL SET, BRUSH

31201-MR6-008

$21.00

BOLT, SETTING

31205-MR1-008

$3.64

HOLDER SET, BRUSH

31206-MR6-008

$22.08

RING

31207-KS5-901

$2.90

COVER, STARTER MOTOR

31207-MT3-000

Unavailable

STAY, HEAT GUARD

31209-MT3-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

BOLT, FLANGE (12X30)

95701-12030-00

Unavailable

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
