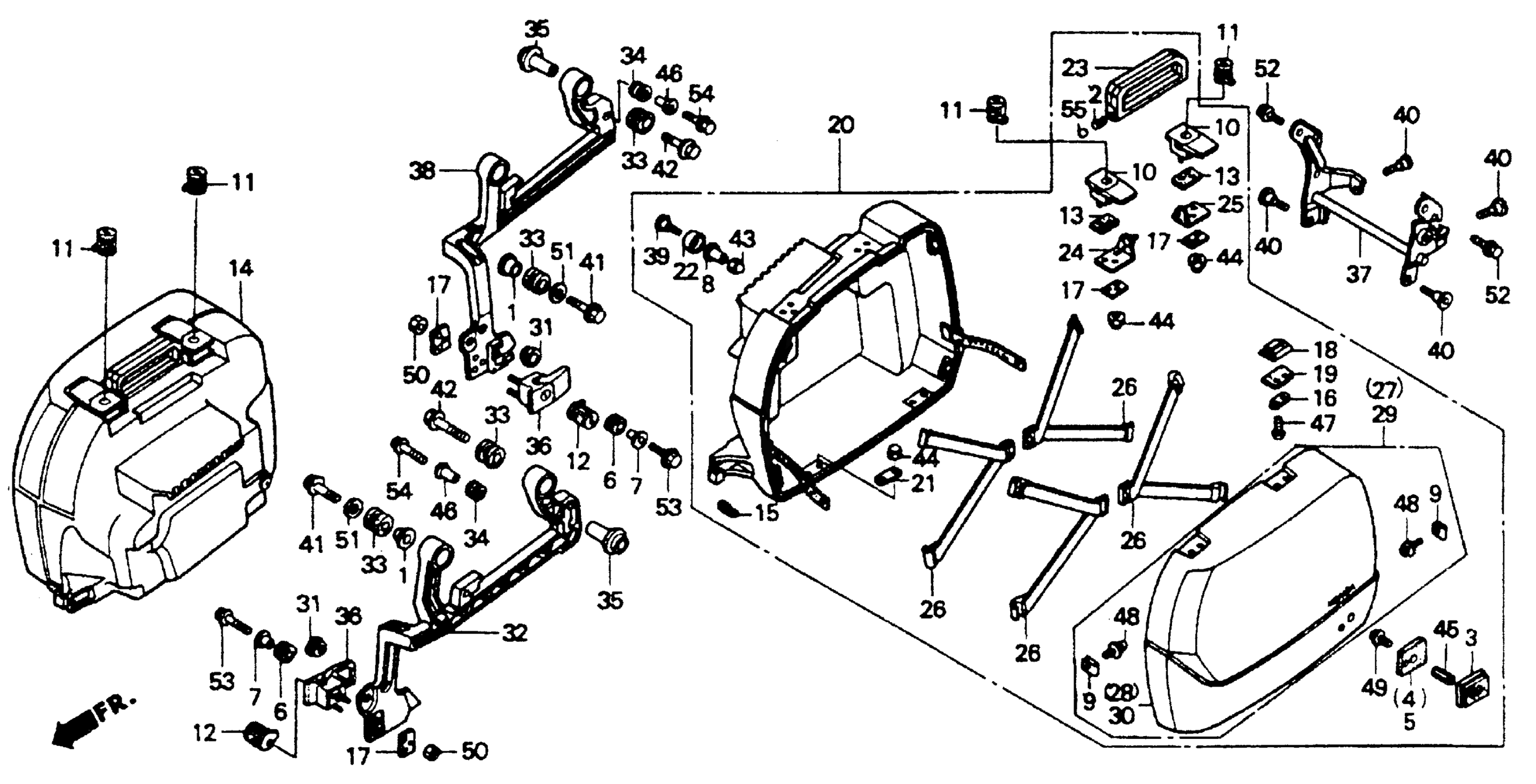

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 SADDLEBAG Diagram

#

Description
Price

1

COLLAR, MUFFLER SETTING

18422-MA6-000

$7.91

2

SPRING, CLUTCH SUB-FREE

22431-121-880

$1.49

3

REFLECTOR, RR. REFLEX

33742-MB2-672

$22.05

4

COVER, R. BAG REFLECTOR

33746-MT3-670

$27.59

5

COVER, L. BAG REFLECTOR

33747-MT3-670

$25.00

6

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

7

COLLAR (6.3X13)

50324-425-010

$5.05

8

COLLAR, FR. FENDER

61105-MA3-000

$3.80

9

NUT, CLIP (4MM)

64521-KY6-000

$2.92

10

LOCK ASSY. A, BAG

81170-MT3-003

$103.77

11

CYLINDER ASSY. A, BAG LOCK

81171-MT3-003

$36.23

12

CYLINDER ASSY. B, BAG LOCK

81172-MT3-003

$34.66

13

RUBBER, LOCK

81175-MT3-003

Unavailable

14

SADDLEBAG ASSY., R. (TYPE171) (WL)

81200-MAJ-670ZB

Unavailable

15

RUBBER, PROTECTOR

81214-MT3-300

$2.51

16

PLATE, HOOK SETTING

81222-MG9-770

Unavailable

17

PLATE, LOCK SETTING

81223-MG9-770

Unavailable

18

HOOK, LOCK

81223-MT3-000

$8.10

19

RUBBER, HOOK

81224-MT3-000

$4.75

20

SADDLEBAG ASSY., L. (TYPE17) (WL)

81300-MAJ-670ZB

Unavailable

21

PLATE, HINGE SETTING

81318-MT3-000

$3.80

22

CUSHION, SADDLEBAG

81327-MT3-000

$4.66

23

GRIP, SADDLEBAG *NH285* (GUSTO GRAY)

81335-MT3-000ZA

$26.15

24

HINGE, GRIP (A)

81336-MT3-000

$10.70

25

HINGE, GRIP (B)

81337-MT3-000

$10.70

26

BAND, SADDLEBAG

81343-MT3-000

$16.85

28

COVER, R. SADDLEBAG (TYPE17) (WL)

81450-MAJ-670ZB

Unavailable

30

COVER, L. SADDLEBAG (TYPE17) (WL)

81550-MAJ-670ZB

Unavailable

31

GROMMET, SIDE COVER

83551-MA6-000

$3.35

32

STAY, R. SADDLEBAG

84250-MT3-000

$155.77

33

RUBBER, BAG MOUNTING

84252-MT3-000

Unavailable

34

RUBBER

84253-MT3-000

$4.17

35

COLLAR

84254-MT3-000

$16.85

36

LOCK ASSY. B, BAG

84260-MT3-003

$92.11

37

STOPPER, SADDLEBAG STAY

84300-MT3-000

$83.34

38

STAY, L. SADDLEBAG

84350-MT3-000

$183.07

39

SCREW, PANEL (INNER)

90105-MN5-000

$5.30

40

SCREW, PAN (6X20)

90112-MT3-000

$3.76

41

BOLT, FLANGE (8X44)

90154-KZ3-000

$4.94

42

BOLT, FLANGE (8X50)

90155-KZ3-000

$7.10

43

NUT, CAP (6MM)

90201-428-900

$2.23

44

NUT, MOLDING SIDE

90305-SJ4-003

$3.58

45

NUT, SPECIAL

90337-MT3-670

$10.56

46

COLLAR (6.3X14.5)

90503-KAE-000

$4.57

47

SCREW, PAN (4X14)

93500-04014-0G

$1.49

48

SCREW-WASHER (4X12)

93894-04012-07

$1.49

49

SCREW-WASHER (5X12)

93894-05012-07

$1.49

50

NUT, HEX. (4MM)

94002-04080-0S

Unavailable

51

WASHER, PLAIN (8MM)

94103-08000

$1.49

52

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

53

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

54

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

55

BALL, STEEL (#7) (7/32)

96211-07000

$1.49
