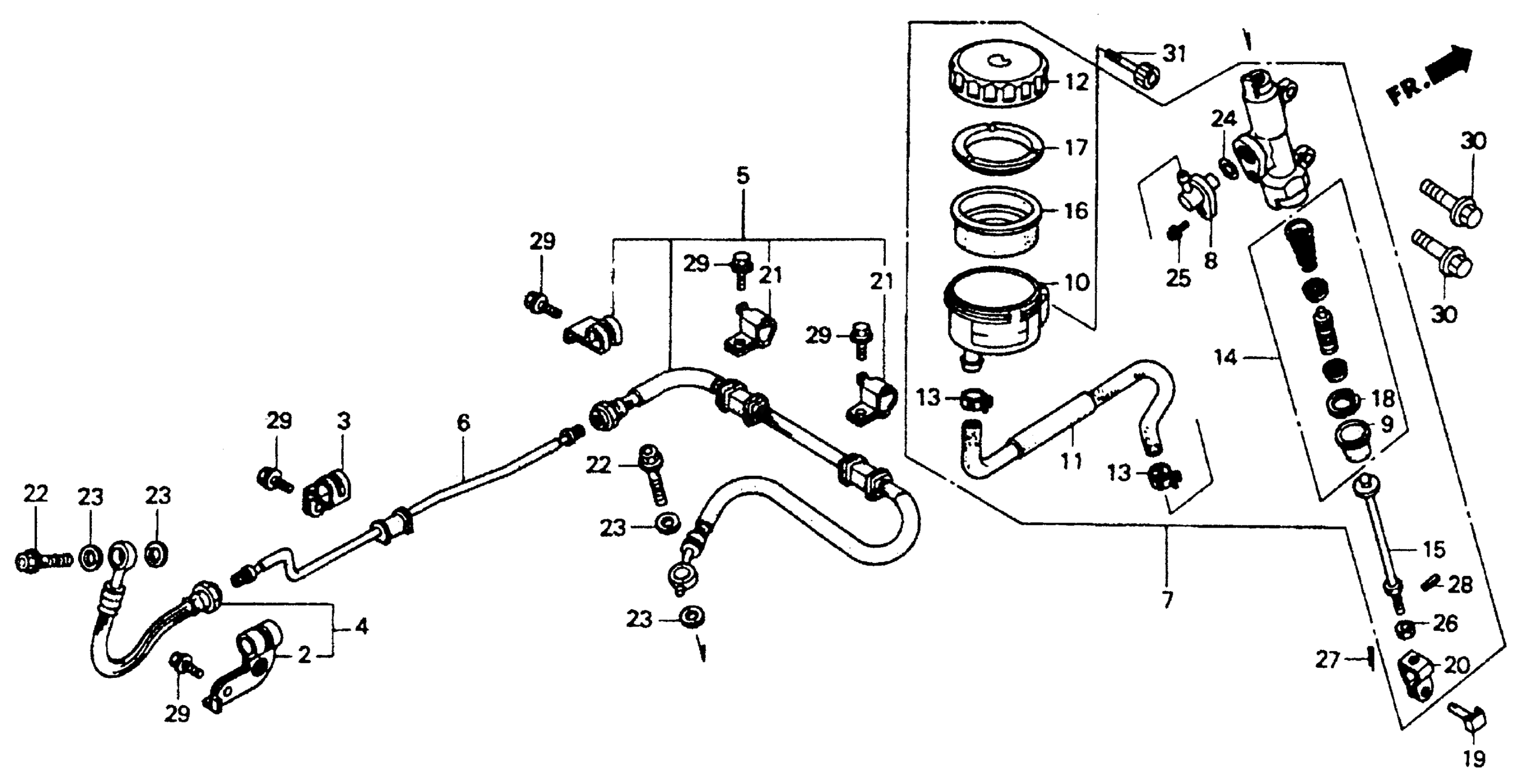

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 REAR BRAKE MASTER CYLINDER 1100 Diagram

CLAMP, RR. BRAKE HOSE (A)

43156-MN5-000

Unavailable

CLAMP, RR. BRAKE HOSE

43157-MT3-000

Unavailable

CLAMP, RR. BRAKE PIPE

43158-MT3-000

$6.97

HOSE, RR. BRAKE (A)

43310-MT3-003

Unavailable

HOSE, RR. BRAKE (B)

43313-MT3-003

Unavailable

PIPE, RR. BRAKE

43314-MT3-000

Unavailable

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-MT3-006

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

CUP, MASTER CYLINDER OIL

43511-MT3-006

$35.38

HOSE, MASTER CYLINDER

43512-MT3-006

Unavailable

CAP, OIL CUP

43513-MB4-672

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

ROD, PUSH This part replaces 43530-MT3-016.

43530-MT3-036

Unavailable

ROD, PUSH

43530-MT3-036

Unavailable

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.24

PIN D, JOINT

95015-54000

$4.24

JOINT, BRAKE ROD

46504-MT8-006

$9.05

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, SPRING (2X10)

94305-20102

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
