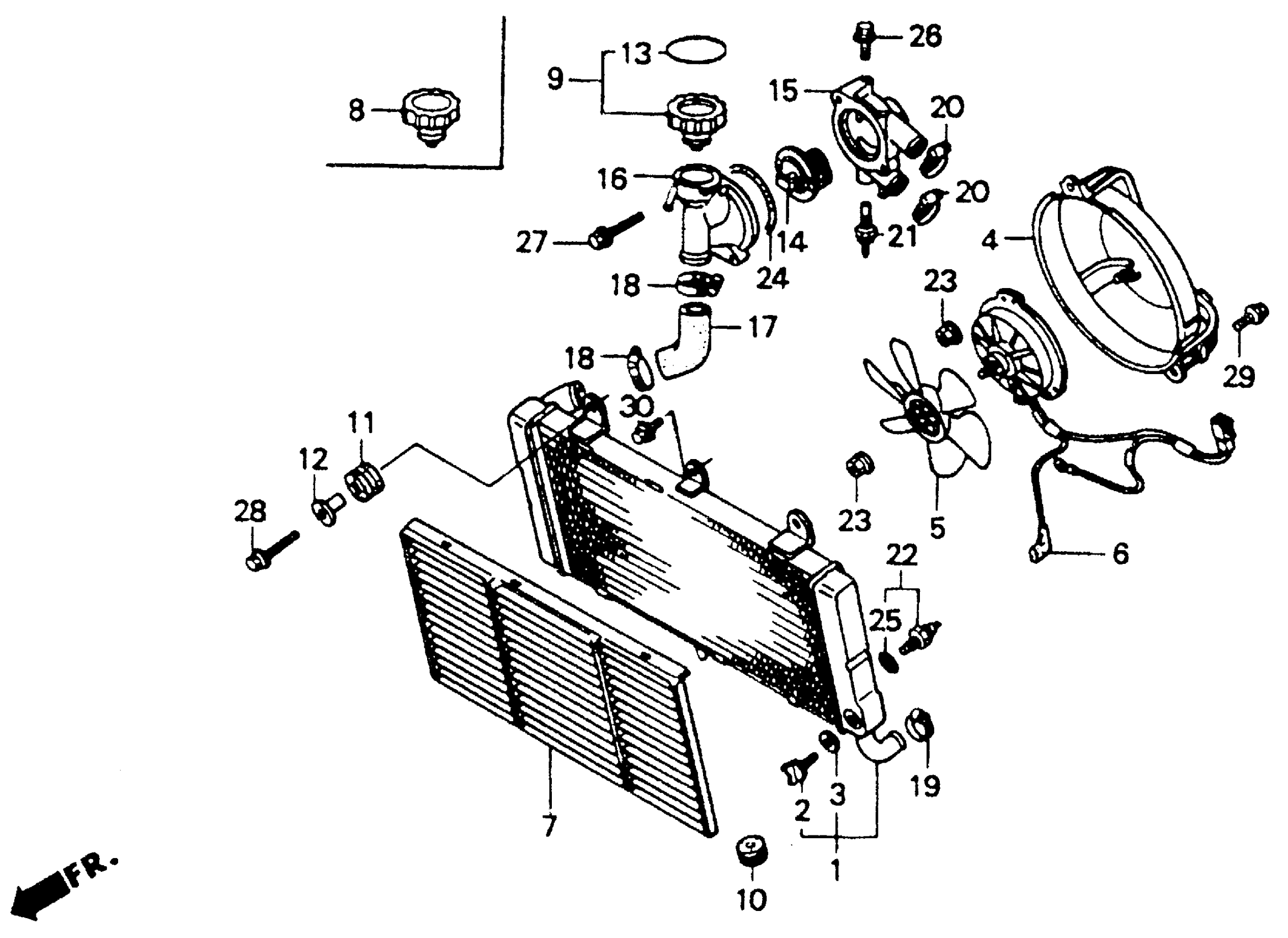

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 RADIATOR Diagram

#

Description
Price

1

RADIATOR This part replaces 19010-MAJ-G20.

19010-MAJ-G21

Unavailable

1

RADIATOR This part replaces 19010-MT3-003.

19010-MAJ-G21

Unavailable

2

VALVE, DRAIN (TOYO) This part replaces 19011-PH9-004.

19011-PH9-014

Unavailable

2

VALVE, DRAIN (TOYO)

19011-PH9-014

Unavailable

3

GASKET, DRAIN (TOYO)

19012-PA0-004

$4.12

4

SHROUD (TOYO)

19015-MT3-003

$93.26

5

FAN, COOLING (TOYO)

19020-MM5-003

Unavailable

6

MOTOR, FAN

19030-MT3-003

Unavailable

7

GRILLE, RADIATOR

19032-MAJ-G20

$66.91

7

GRILLE, RADIATOR This part replaces 19032-MT3-000.

19032-MAJ-G20

$66.91

9

CAP, RADIATOR This part replaces 19045-MY3-671.

19045-MY3-621

$36.33

10

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.64

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

12

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

13

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.28

14

THERMOSTAT

19300-MG9-000

$48.62

15

CASE, THERMOSTAT

19311-MT3-000

Unavailable

16

FILLER, NECK

19312-MS2-000

Unavailable

17

HOSE, RADIATOR (A)

19503-MT3-000

$19.56

18

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.19

19

CLAMP, WATER HOSE

19516-MB6-000

$13.12

20

CLAMP, HOSE (22-29)

19517-ML7-691

$10.44

21

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$73.04

22

SWITCH ASSY., THERMO

37760-MR1-003

$64.56

23

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

24

O-RING (54X2)

91307-MB0-003

$3.00

25

O-RING (13.5X1.4)

91307-PH7-660

$2.78

25

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

27

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

28

BOLT, FLANGE (6X22)

95701-06022-07

$0.86

29

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

30

BOLT, FLANGE (6X10)

96001-06010-07

$1.48
