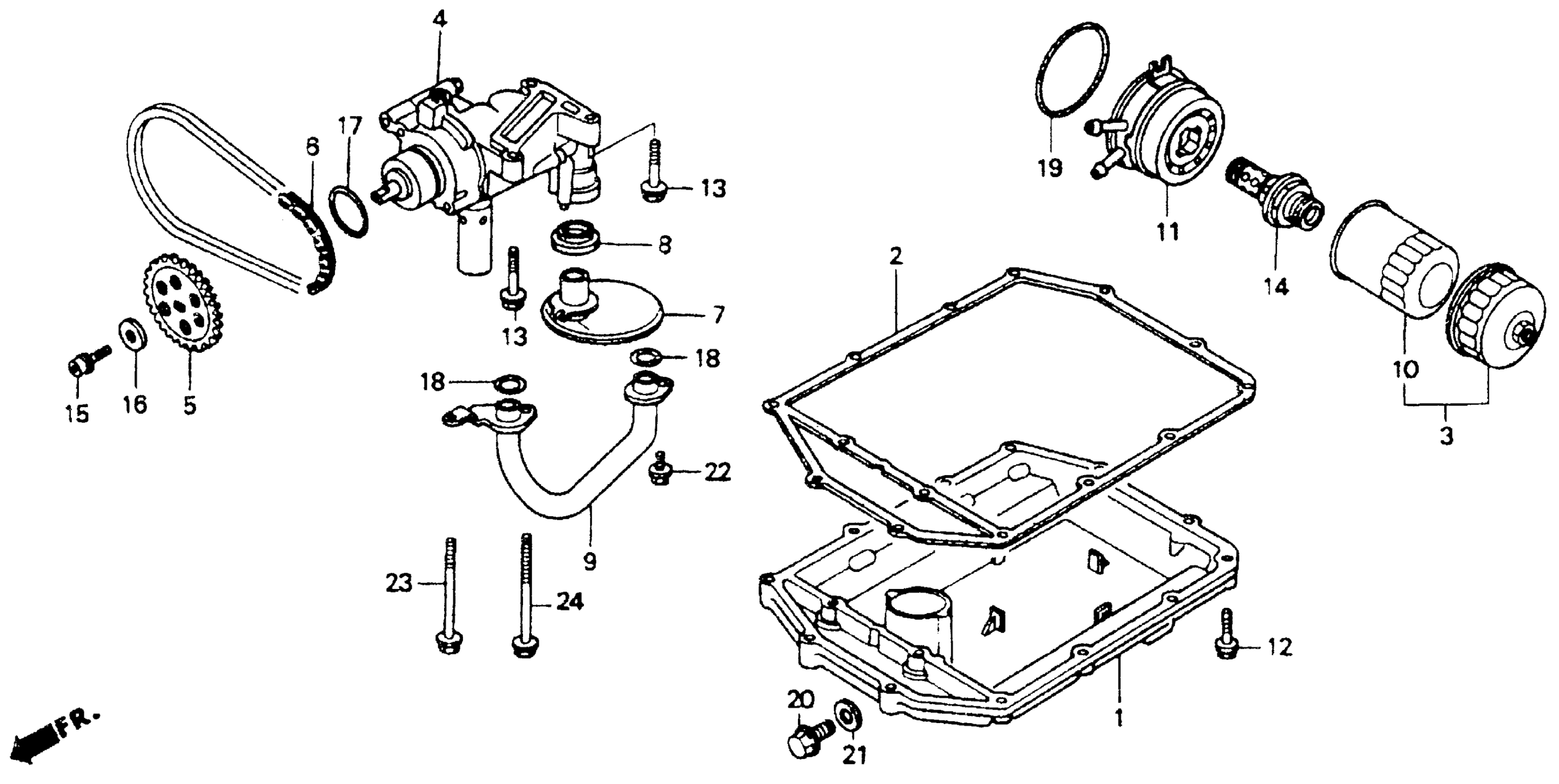

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 OIL PUMP Diagram

PAN, OIL

11211-MT3-000

$252.31

GASKET, OIL PAN

11214-MY3-000

$15.90

FILTER SET, OIL This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MT3-000

$260.84

SPROCKET, OIL PUMP DRIVEN (27T)

15134-MR1-000

$43.49

CHAIN, OIL PUMP DRIVE

15140-MT3-003

Unavailable

STRAINER, OIL

15153-MT3-000

$36.69

GASKET, OIL STRAINER

15154-MM5-000

$6.60

PIPE, OIL

15313-MT3-000

$55.52

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

COOLER, ENGINE OIL (DENSO)

15700-MT3-003

Unavailable

BOLT, FLANGE (6X28) (NSHF) This part replaces 90001-GHB-680.

90004-GHB-680

$3.33

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, KNOCK (6X30)

90014-ME5-000

$6.64

BOLT, OIL COOLER

90019-MR7-003

Unavailable

BOLT, FLANGE (6X14)

90091-KV3-700

$3.13

WASHER (6X2.3)

90488-MB0-000

$4.37

O-RING (31X2.5)

91301-PJ7-000

$4.16

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

O-RING (62.4X3.1)

91316-PE7-730

$5.69

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

BOLT, FLANGE (6X90)

95701-06090-00

$1.92
