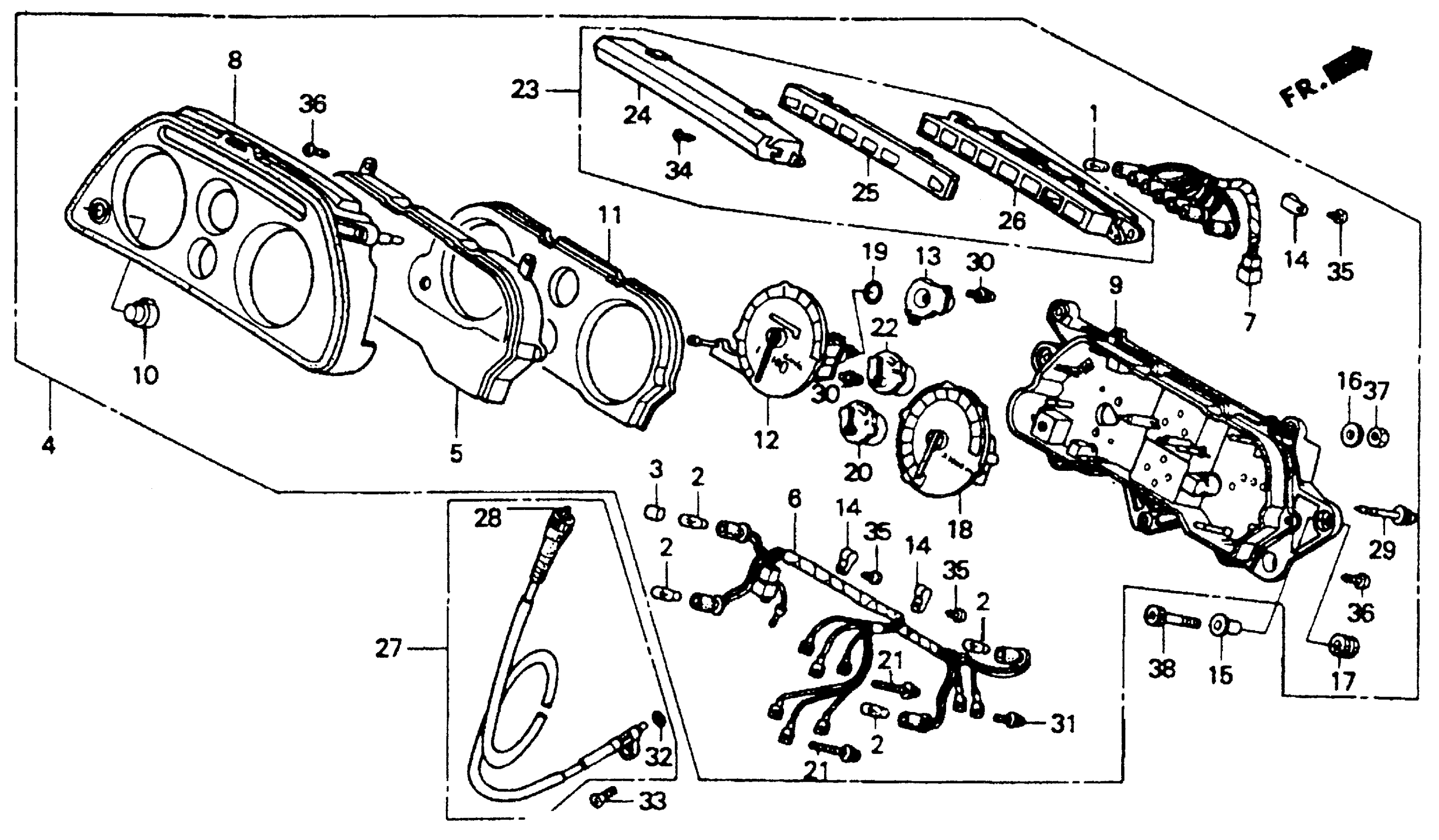

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 METER 1100 Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.78

4

METER ASSY., COMBINATION (MPH/KPH)

37100-MY3-671

Unavailable

5

LENS ASSY., METER

37102-MS2-601

Unavailable

6

SOCKET

37105-MT3-003

$61.00

7

SOCKET, PILOT BOX

37106-MT3-003

Unavailable

8

VISOR ASSY.

37110-MY3-601

Unavailable

9

CASE ASSY.

37111-MT3-003

$95.07

10

KNOB

37112-MT3-003

Unavailable

11

PLATE, REFLECTING

37130-MM5-008

Unavailable

12

SPEEDOMETER ASSY.

37200-MAJ-A31

Unavailable

12

SPEEDOMETER ASSY. This part replaces 37200-MT3-672.

37200-MAJ-A31

Unavailable

13

BOSS, ELBOW

37211-MR7-008

Unavailable

14

CLAMP

37215-MB6-831

$2.65

15

COLLAR, SPEEDOMETER MOUNTING This part replaces 37243-KB7-960.

37243-KV3-830

$6.15

16

WASHER, PLAIN

37244-MA6-008

$2.15

17

RUBBER, METER SETTING

37244-MB2-008

$6.87

18

TACHOMETER ASSY. (RPM)

37250-MT3-602

Unavailable

18

TACHOMETER ASSY. (RPM) This part replaces 37250-MT3-672.

37250-MT3-602

Unavailable

19

SEAL

37264-MR7-008

$3.49

20

METER ASSY., FUEL

37300-MY3-781

Unavailable

21

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

22

METER ASSY., TEMPERATURE

37400-MT3-013

Unavailable

23

BOX ASSY., PILOT This part replaces 37600-MT3-601.

37600-MT3-691

Unavailable

23

BOX ASSY., PILOT

37600-MT3-691

Unavailable

24

LENS, SMOKE

37601-MS2-601

Unavailable

25

PANEL

37602-MT3-003

Unavailable

26

CASE ASSY. (LOWER)

37603-MT3-003

Unavailable

27

CABLE ASSY., SPEEDOMETER

44830-MT3-000

$33.74

28

CABLE (INNER)

44831-MM5-000

Unavailable

28

CABLE (INNER) This part replaces 44831-443-720.

44831-MM5-000

Unavailable

29

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

29

SCREW, TAPPING (4X3)

90133-SG0-A01

Unavailable

30

SCREW-WASHER, SPECIAL

90035-166-008

$2.67

31

SCREW-WASHER (3X12)

90108-GN2-008

$2.41

32

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

32

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

32

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

33

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

34

SCREW, TAPPING (4X16)

93901-24410

$1.49

35

SCREW, TAPPING (4X12)

93903-24320

$1.49

36

SCREW, TAPPING (4X20)

93903-24520

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

38

BOLT, SOCKET (6X25)

96600-06025-00

$1.89
