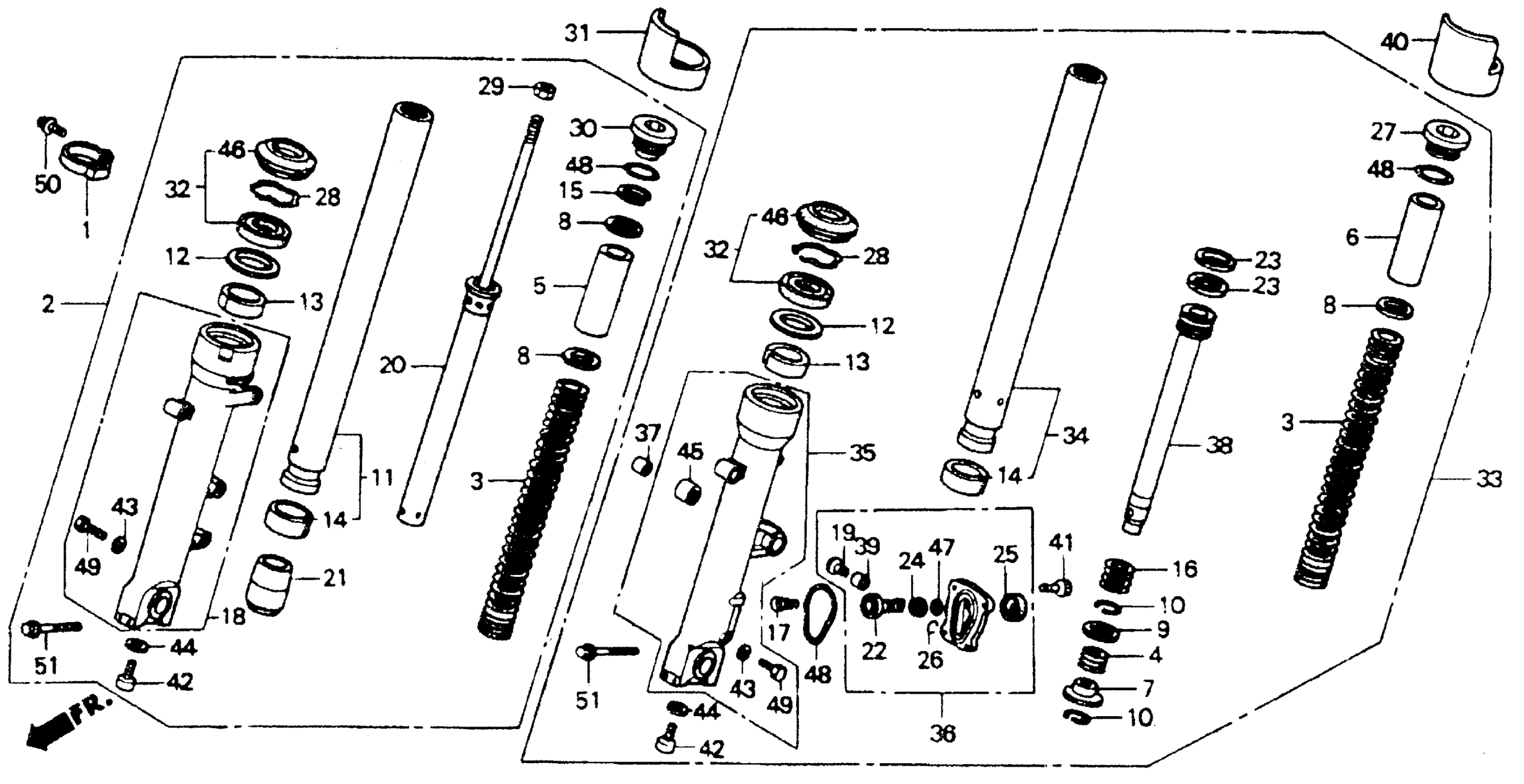

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 FRONT FORK Diagram

#

Description
Price

1

CLAMP B, FR. BRAKE HOSE

45156-KV3-700

$13.03

2

FORK ASSY., R. FR. *NH1* (SHOWA) (BLACK)

51400-MT3-612ZA

Unavailable

3

SPRING, FR. FORK

51401-MT3-003

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.54

5

COLLAR, SPRING (SHOWA)

51402-MS2-003

$17.80

6

COLLAR, SPRING (SHOWA)

51402-MT3-611

Unavailable

7

VALVE, OIL LOCK

51403-MB7-611

$10.85

8

PLATE, SPRING JOINT

51404-MB4-003

$4.94

9

SEAT, SPRING

51404-MB7-611

$5.26

10

RING, STOPPER

51405-MB7-611

$2.92

11

PIPE, R. FR. FORK (SHOWA)

51410-MT3-611

Unavailable

12

RING, BACK-UP

51412-MB4-003

$9.65

13

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

13

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

14

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

14

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

15

SEAT, SPRING (SHOWA)

51415-MS2-003

$13.07

16

SPRING, FR. REBOUND

51416-KF0-003

$7.28

17

SPRING, PISTON

51418-ML7-003

Unavailable

18

CASE, R. (LOWER) *NH1* (BLACK) This part replaces 51421-MT3-013ZA.

51421-MT3-023ZA

Unavailable

18

CASE, R. (LOWER) *NH1* (BLACK)

51421-MT3-023ZA

Unavailable

19

COLLAR, PISTON

51423-MJ0-003

$11.76

20

DAMPER, FR.

51430-MT3-003

Unavailable

21

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$30.07

22

PISTON

51436-MT3-003

Unavailable

23

RING, PISTON (SHOWA)

51437-MM5-003

$5.31

24

RUBBER, STOPPER

51441-ML7-013

Unavailable

25

BOOT, PISTON CASE

51442-MJ0-003

$9.72

26

RING, STOPPER

51445-MJ0-003

$2.59

27

BOLT, L. FR. FORK

51445-MT3-611

Unavailable

28

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

29

NUT, LOCK (SHOWA)

51451-KS7-003

Unavailable

30

BOLT, FR. FORK (SHOWA)

51455-MS2-003

$60.16

31

PROTECTOR, FORK PIPE This part replaces 51460-MT3-610.

51460-MT3-611

$11.80

32

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

33

FORK ASSY., L. FR. *NH1* (SHOWA) (BLACK)

51500-MT3-612ZA

Unavailable

34

PIPE, L. FR. FORK (SHOWA)

51510-MT3-611

$372.34

35

CASE, L. (LOWER) *NH1* (BLACK) This part replaces 51521-MT3-013ZA.

51521-MT3-023ZA

Unavailable

35

CASE, L. (LOWER) *NH1* (BLACK)

51521-MT3-023ZA

Unavailable

36

CASE, PISTON (SHOWA)

51530-MT3-611

Unavailable

37

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

$11.73

38

PIPE B, SEAT (SHOWA)

51540-MT3-611

Unavailable

39

BUSH, RUBBER

51545-MJ0-003

$9.38

40

PROTECTOR, FORK PIPE This part replaces 51460-MT3-610.

51460-MT3-611

$11.80

41

BOLT, SOCKET (5X13.5)

90116-ML7-003

$5.63

42

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

43

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

44

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

45

BEARING, NEEDLE (1422)

91071-ML7-003

$43.08

46

DUST SEAL

91254-MM8-003

$17.88

47

O-RING

91304-ML7-003

Unavailable

48

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

50

SCREW-WASHER (5X20)

93891-05020-07

$1.49

50

SCREW-WASHER (5X20) This part replaces 93891-05020-17.

93891-05020-07

$1.49

51

BOLT, FLANGE (8X45)

96300-08045-07

$3.55

51

BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.) This part replaces 96500-08045-07.

96300-08045-07

$3.55
