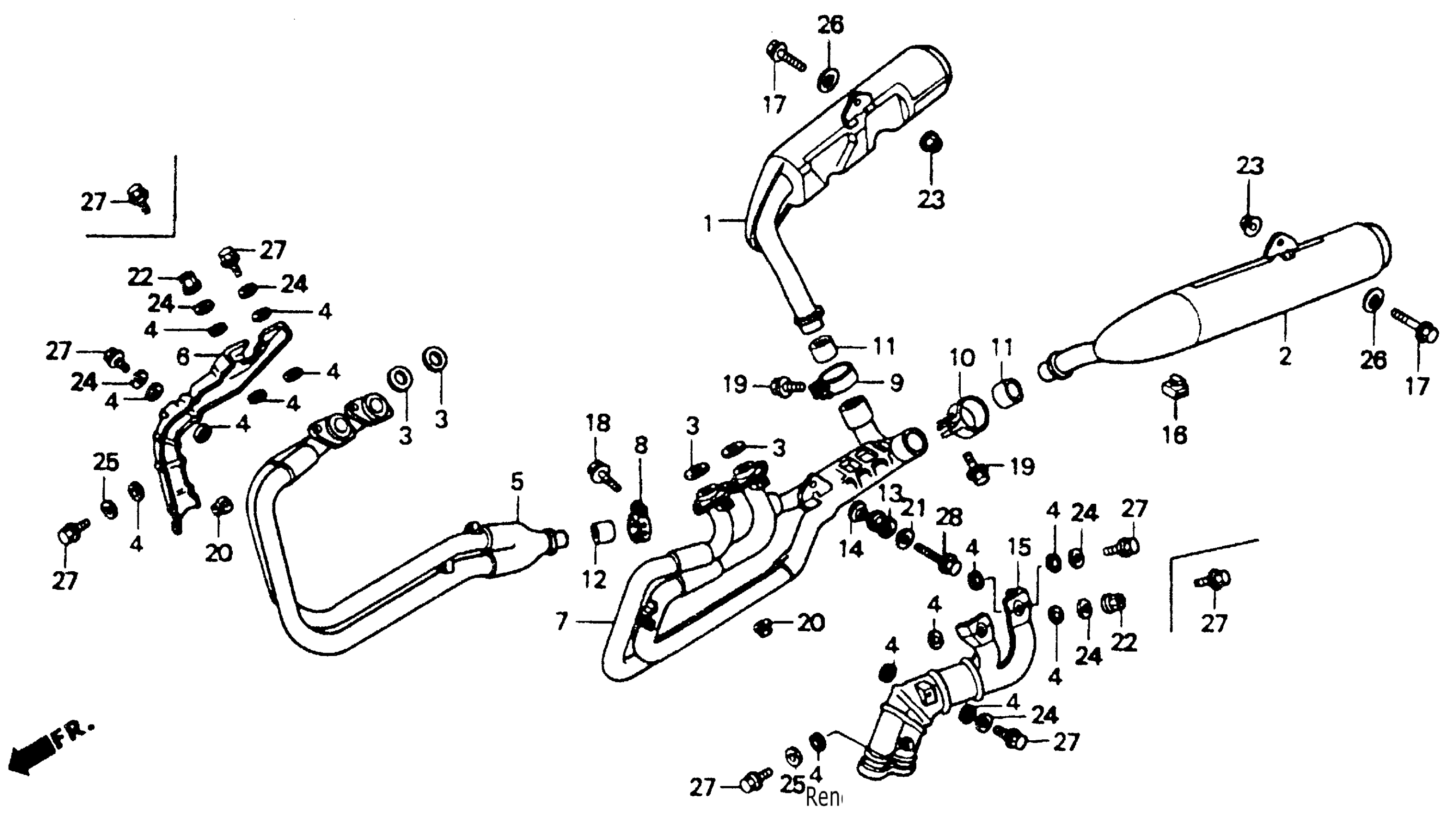

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 EXHAUST MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., R. This part replaces 18100-MT3-670.

18100-MT3-671

Unavailable

1

MUFFLER ASSY., R.

18100-MT3-671

Unavailable

2

MUFFLER ASSY., L. This part replaces 18200-MT3-670.

18200-MT3-671

Unavailable

2

MUFFLER ASSY., L.

18200-MT3-671

Unavailable

3

GASKET, EX. PIPE

18291-MN4-920

$5.07

3

GASKET, EX. PIPE This part replaces 18291-MT3-000.

18291-MN4-920

$5.07

5

PIPE, R. EX. This part replaces 18320-MY3-000.

18320-MY3-740

Unavailable

6

COVER, R. EX. PIPE

18325-MY3-000

$82.49

7

PIPE, L. EX. This part replaces 18370-MY3-000.

18370-MY3-740

Unavailable

8

BAND, L. MUFFLER This part replaces 18371-ML7-000.

18374-KE8-000

$26.87

8

BAND, R. MUFFLER

18373-KE8-000

$26.30

8

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$26.87

9

BAND, R. MUFFLER

18376-MT3-000

$28.26

10

BAND, L. MUFFLER

18377-MT3-000

$28.26

11

GASKET, RR. MUFFLER

18392-MJ4-670

$14.74

12

GASKET, MUFFLER

18392-MK4-000

$12.54

13

RUBBER, MUFFLER SETTING

18421-MA6-000

$6.72

14

COLLAR, MUFFLER SETTING

18422-MA6-000

$7.56

15

COVER, L. EX. PIPE

18425-MY3-000

$71.99

16

RUBBER A, STAND STOPPER

50524-KR0-000

Unavailable

17

BOLT, FLANGE (8X50)

90108-MB2-000

$4.84

18

BOLT, FLANGE (8X40)

90113-MT3-000

$7.82

19

BOLT, FLANGE (8X40)

90113-MT3-000

$7.82

20

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

21

WASHER (8.5X26)

90504-MM5-000

Unavailable

23

NUT, FLANGE (8MM)

94050-08070

$1.38

25

WASHER, PLAIN (6MM)

94103-06400

$0.91

26

WASHER, FLAT (8MM)

94103-08200

$0.62

27

BOLT, FLANGE (6X10)

95701-06010-00

$1.16

28

BOLT, FLANGE (8X45)

95801-08045-07

$2.71
