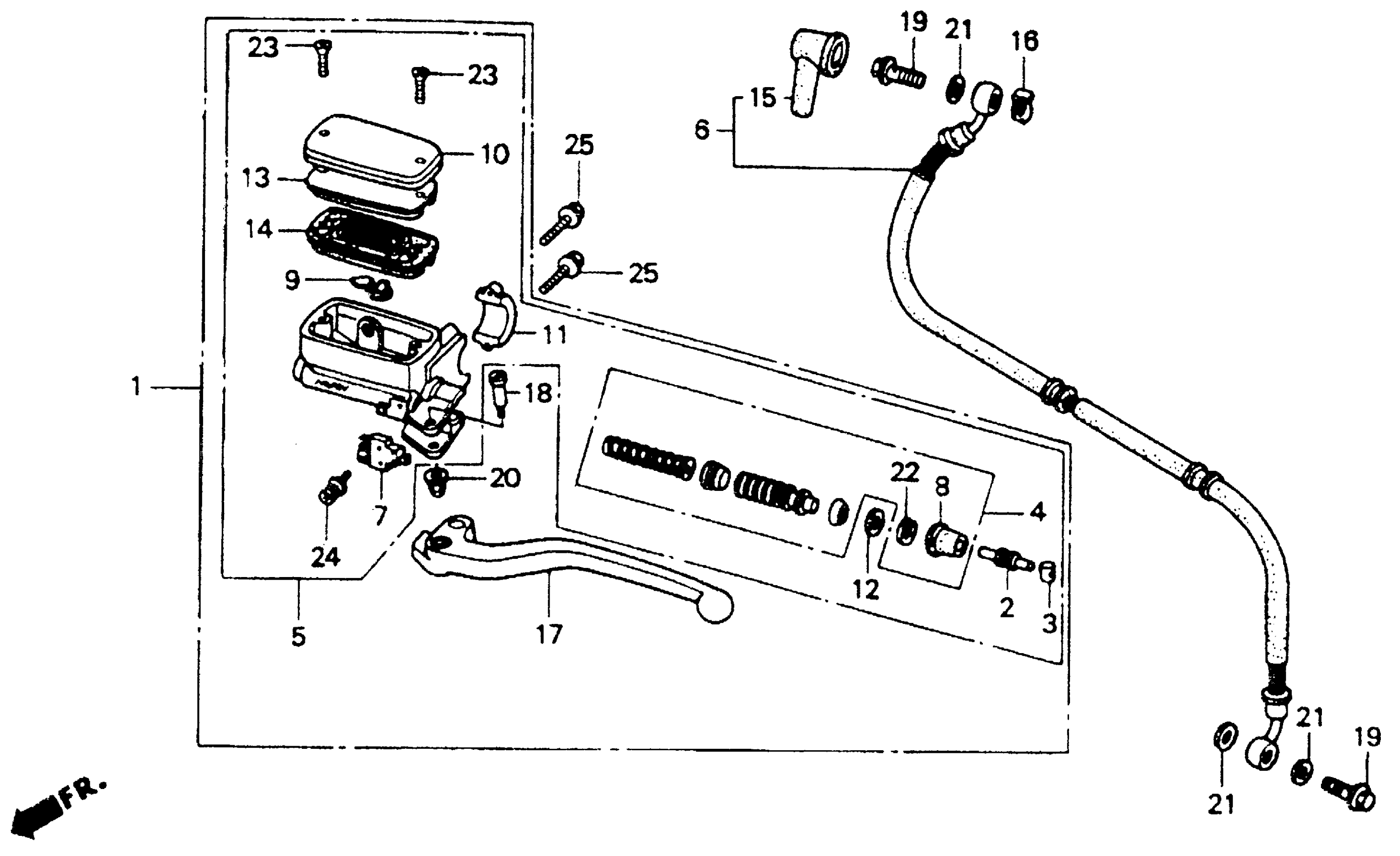

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MZ9-305

Unavailable

HOSE, CLUTCH (NOT AVAILABLE)

22900-MT3-000

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

WASHER, OIL BOLT

45535-MT3-010

Unavailable

LEVER, L. HANDLEBAR

53178-KE8-006

$24.77

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
