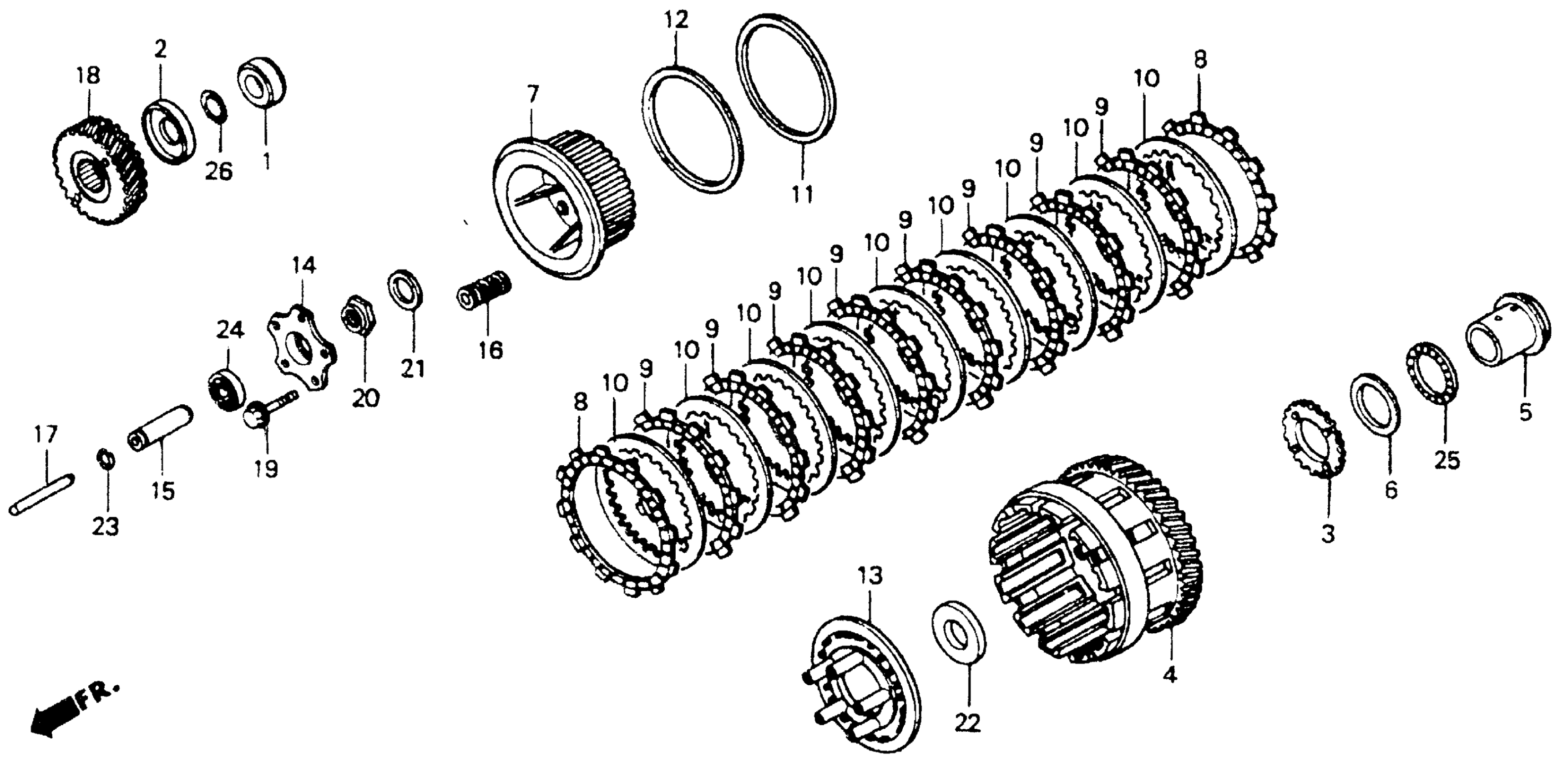

Honda ST1100A (94) MOTORCYCLE, JPN, VIN# JH2SC260-RM400001 CLUTCH Diagram

#

Description
Price

1

COLLAR (26X42X135)

13440-MT3-000

Unavailable

2

STOPPER, CIRCLIP

13445-MT3-000

Unavailable

3

SPROCKET, OIL PUMP DRIVE

15131-MT3-000

Unavailable

4

CLUTCH (OUTER)

22100-MY3-000

Unavailable

5

COLLAR, CLUTCH (OUTER)

22116-MT3-000

Unavailable

6

WASHER (35X52X2)

22118-MT3-000

$22.46

7

CENTER, CLUTCH

22120-MT3-000

Unavailable

8

DISK, CLUTCH FRICTION

22201-MA7-000

$15.90

9

DISK, CLUTCH FRICTION

22201-MY3-000

$24.98

10

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

13

PLATE, CLUTCH PRESSURE

22350-MT3-000

Unavailable

14

PLATE, CLUTCH LIFTER

22361-MT3-000

$20.05

15

PIECE, CLUTCH JOINT

22366-MT3-000

Unavailable

16

SPRING, CLUTCH

22401-MT3-000

$5.46

17

ROD, CLUTCH LIFTER

22851-MN5-010

Unavailable

18

GEAR ASSY., PRIMARY DRIVE

23100-MT3-000

$248.62

19

BOLT, FLANGE (6X32)

90038-MT3-000

Unavailable

20

NUT, LOCK (22MM)

90231-MM5-000

$10.45

21

WASHER, SPRING (22MM)

90432-MM5-000

$8.52

22

WASHER (25X54X6)

90459-MT3-000

$42.41

23

CLIP (10.6)

90602-KE1-000

Unavailable

24

BEARING, RADIAL BALL (6201) (NTN CORP.) This part replaces 91003-GE0-711.

91003-GE0-712

$24.48

24

BEARING, RADIAL BALL (6201) (NTN CORP.)

91003-GE0-712

$24.48

25

BEARING (35X52X2) This part replaces 91014-PA9-003.

91014-PTD-901

$30.95

26

O-RING (25.07X2.62) (ARAI)

91308-MT3-003

$4.13
