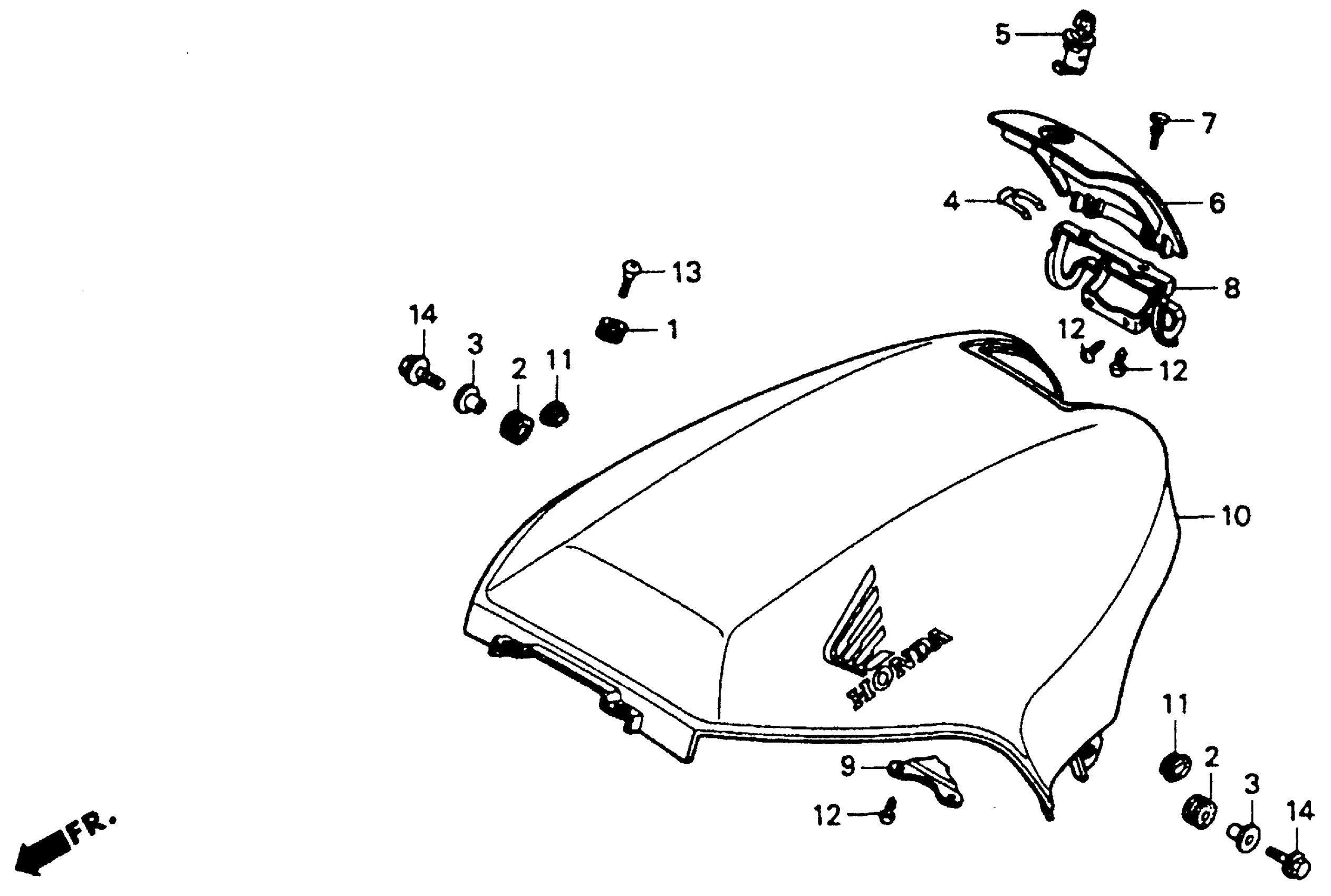

Honda ST1100A (93) MOTORCYCLE, JPN, VIN# JH2SC260-PM300001 SHELTER Diagram

RUBBER, AIR CLEANER MOUNTING

17227-GS3-000

$2.91

RUBBER, FR. FENDER SETTING

61103-357-000

$3.13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

SPRING, LOCK KEY SETTING

75581-673-000

$6.43

LOCK ASSY., FUEL LID This part replaces 77232-GW0-000.

77232-GBL-772

Unavailable

LID, SHELTER *R101CU* (CANDY GLORY RED-U)

83131-MT3-000ZM

Unavailable

RUBBER, SHELTER LID

83132-MN5-000

$2.21

HINGE, SHELTER

83140-MT3-000

Unavailable

PLATE, LOCK

83143-MT3-000

Unavailable

SHELTER SET, TOP (TYPE8) (WL)

83155-MY3-000ZC

Unavailable

GROMMET, SIDE COVER

83551-MA6-000

$3.19

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$0.90

SCREW, TAPPING (4X16)

93913-14280

$0.90

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.53

BOLT, FLANGE (6X25)

95701-06025-00

$1.79
