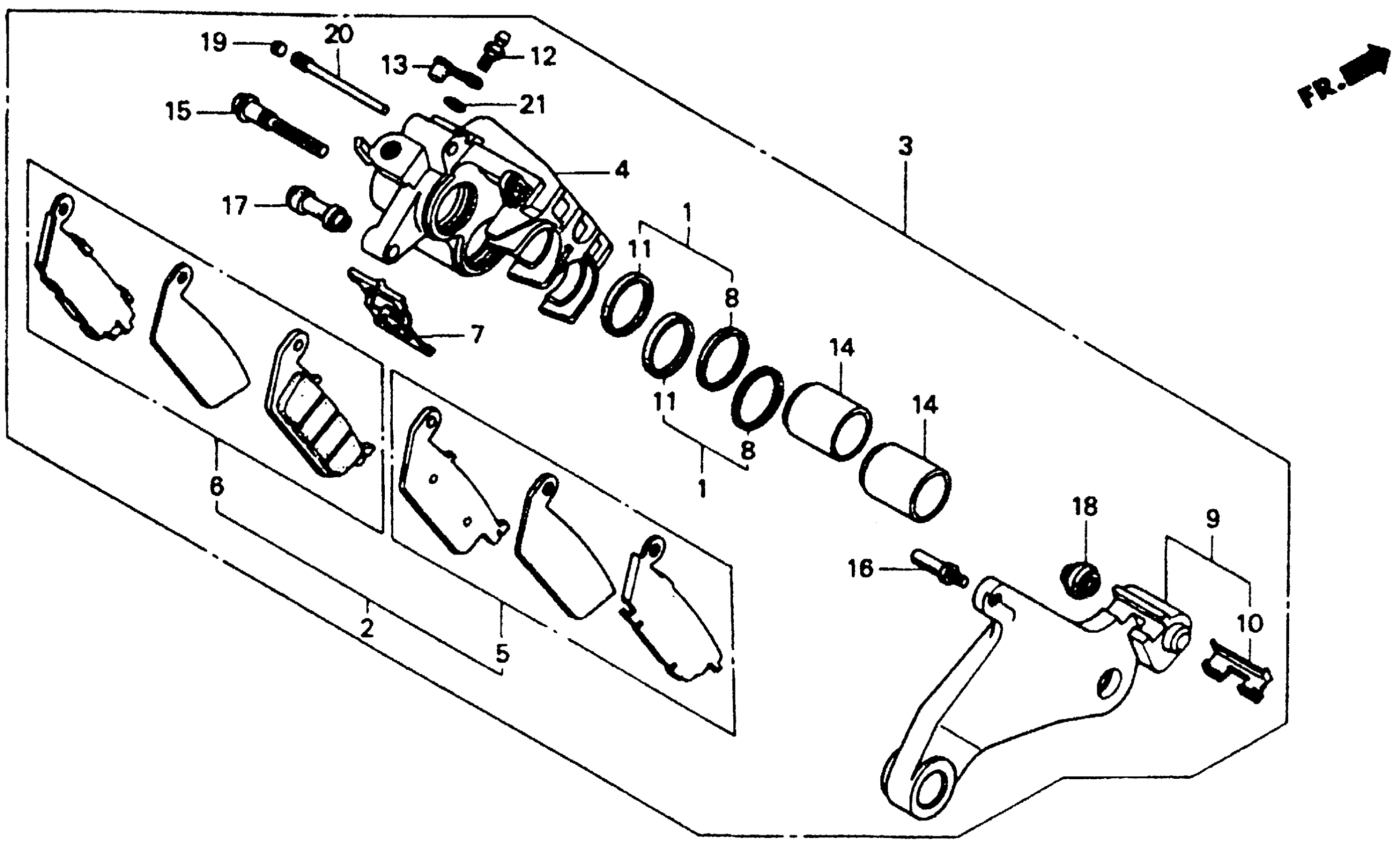

Honda ST1100A (93) MOTORCYCLE, JPN, VIN# JH2SC260-PM300001 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, RR. BRAKE

06435-MT3-405

$57.84

NI

PAD SET, RR. BRAKE This part replaces 431A0-MT3-670.

06435-MT3-405

$57.84

1

SEAL SET, PISTON

06431-MA3-405

$7.33

3

CALIPER ASSY., RR. BRAKE (NISSIN)

43100-MT3-016

Unavailable

3

CALIPER ASSY., RR. BRAKE (NISSIN) This part replaces 43100-MT3-006.

43100-MT3-016

Unavailable

4

BODY, RR. CALIPER

43101-MT3-006

Unavailable

5

PAD A (NOT AVAILABLE)

43105-MT3-007

Unavailable

6

PAD B (NOT AVAILABLE)

43106-MT3-007

Unavailable

7

SPRING, PAD

43108-MT3-006

$9.76

9

BRACKET, RR. CALIPER

43110-MT3-006

Unavailable

10

RETAINER

43112-MT3-006

$6.99

12

SCREW, BLEEDER

43352-MG9-006

$5.44

13

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

13

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

13

CAP, BLEEDER

43353-461-771

$5.05

14

PISTON (NISSIN)

45107-ML4-006

$37.87

15

PIN, BOLT

45131-MA3-006

$17.59

16

PIN, BOLT

45131-166-016

$7.63

17

BUSH, PIN

45132-166-016

$5.46

18

BOOT B

45133-MA3-006

$5.46

19

PLUG, PIN

45203-MG3-016

$5.12

20

PIN, HANGER

45215-HE0-016

$10.48

21

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15
