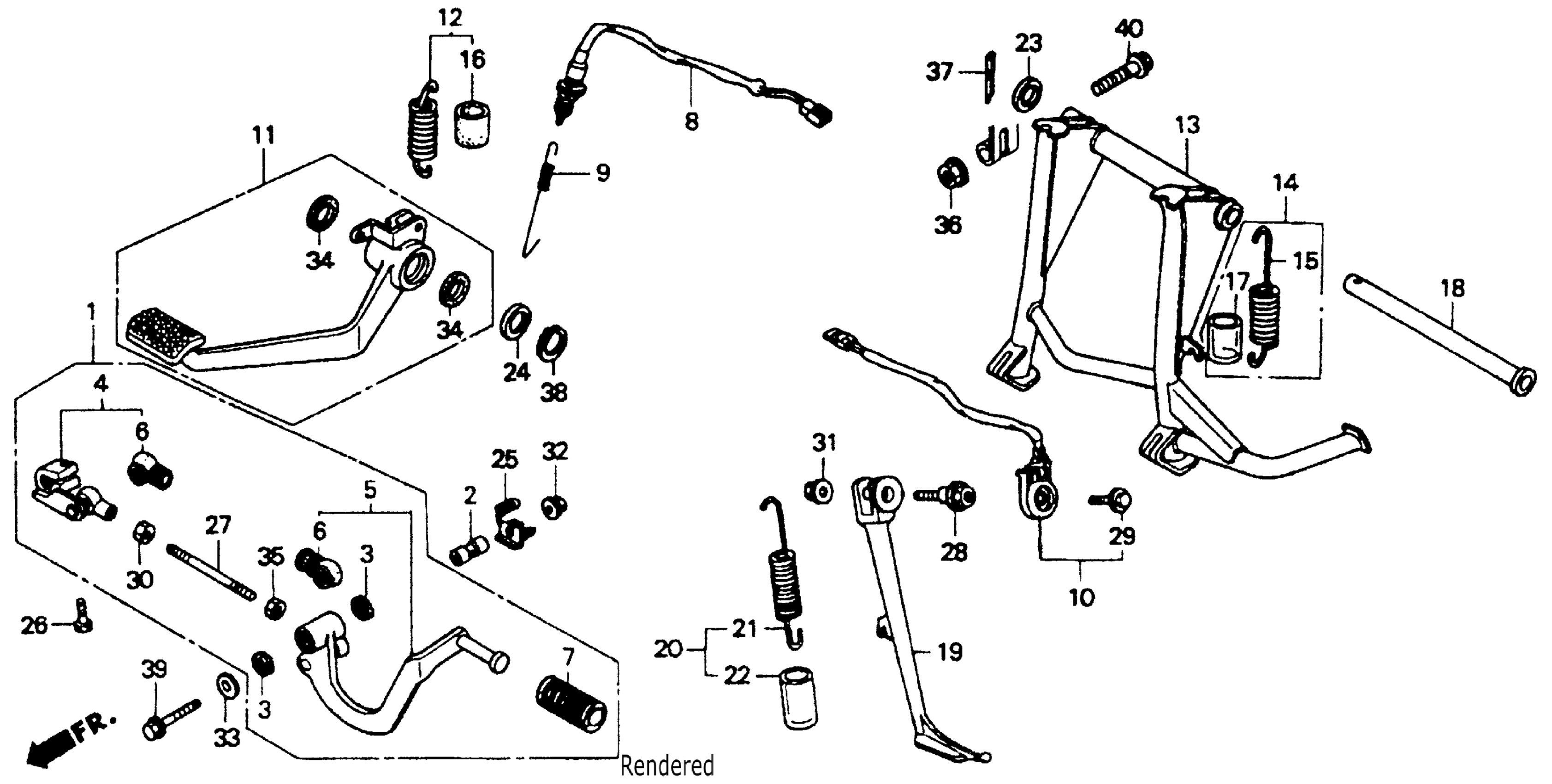

Honda ST1100A (93) MOTORCYCLE, JPN, VIN# JH2SC260-PM300001 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., GEARSHIFT

24700-MY3-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$10.67

3

RUBBER, DUST SEAL

24706-MK3-770

$4.48

4

ARM, GEARSHIFT

24710-MY3-000

$48.70

5

PEDAL, GEARSHIFT

24720-MT3-000

Unavailable

6

COVER, DUST

24724-422-000

$6.68

7

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

8

SWITCH ASSY., RR. STOP This part replaces 35350-MT3-000.

35350-GBG-505

Unavailable

9

SPRING, STOP SWITCH

35357-MT3-000

Unavailable

10

SWITCH SET, SIDE STAND

35700-MT3-305

Unavailable

11

PEDAL, RR. BRAKE This part replaces 46500-MT3-000.

46500-MT3-010

Unavailable

11

PEDAL, RR. BRAKE

46500-MT3-010

Unavailable

12

SPRING ASSY., BRAKE RETURN

46515-MT3-000

Unavailable

13

STAND, MAIN

50500-MT3-010

Unavailable

14

SPRING ASSY., MAIN STAND

50520-MT3-601

$15.16

16

RUBBER, MAIN STAND SPRING

50523-MT4-000

Unavailable

17

TUBE, MAIN STAND SPRING

50524-MT3-601

$4.54

18

PIPE, MAIN STAND PIVOT

50526-MT3-000

Unavailable

19

BAR, SIDE STAND

50530-MY3-000

Unavailable

20

SPRING ASSY., SIDE STAND

50540-MT3-611

Unavailable

22

TUBE, SIDE STAND SPRING

50543-MT3-611

$3.33

23

PLATE, PILLION FOOTPEG SIDE

50713-KC1-700

$3.04

24

BUSH, WASHER

53312-657-000

$6.70

25

GUIDE, BREATHER

64515-MT3-000

Unavailable

26

BOLT, SPECIAL (6X25)

90028-PL1-000

$5.13

27

BOLT, TIE ROD

90065-MT3-000

$5.56

28

BOLT, SIDE STAND PIVOT

90108-MR5-000

$8.00

29

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

29

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

30

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

31

NUT, SIDE STAND

90203-MF9-710

$3.67

32

NUT, FLANGE (8MM)

90309-428-731

$3.35

33

WASHER (8MM)

90514-921-000

$1.49

34

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

34

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

35

NUT, HEX. (6MM)

94002-06020-0S

$1.49

36

NUT, FLANGE (8MM)

94050-08070

$1.49

37

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

37

PIN, COTTER (2.5MM)

94201-25300

$1.49

38

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

39

BOLT, FLANGE (8X45)

95801-08045-07

$2.28

40

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
