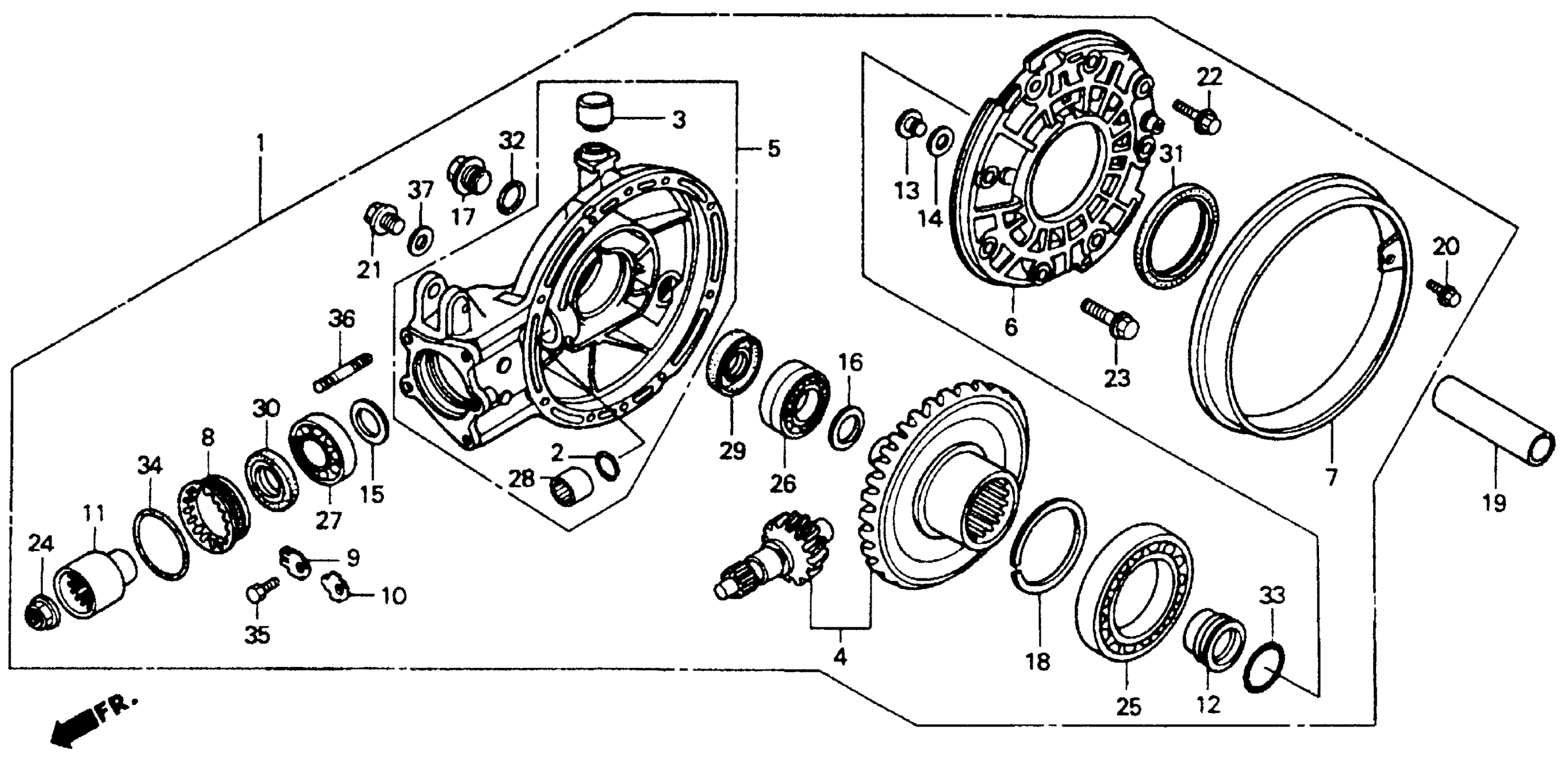

Honda ST1100A (93) MOTORCYCLE, JPN, VIN# JH2SC260-PM300001 FINAL DRIVEN GEAR 1100 Diagram

#

Description
Price

1

GEAR ASSY., FINAL

41300-MY3-000

Unavailable

2

RING, STOPPER

41305-MB4-770

$5.62

3

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$9.24

3

CAP, BREATHER

41306-MB0-020

$9.24

4

GEAR SET, FINAL

41310-MT3-305

Unavailable

5

CASE SET, FINAL This part replaces 41311-MT3-305.

41311-MT3-315

Unavailable

6

COVER, GEAR CASE

41321-MN5-000

$200.67

7

PLATE, DUST GUARD

41324-MT8-010

Unavailable

8

RETAINER, BEARING

41331-MN5-000

$115.31

9

LOCK B, BEARING ADJ.

41333-415-000

$2.51

10

LOCK A, BEARING ADJ.

41332-415-000

$2.51

11

JOINT, PINION

41410-MN5-000

$62.40

12

HOLDER, O-RING

41433-MG9-000

$13.45

13

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

14

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

14

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

15

SHIM A, PINION GEAR (1.32)

41450-MT3-610

$7.43

15

SHIM B, PINION GEAR (1.35)

41451-MT3-610

$7.43

15

SHIM C, PINION GEAR (1.38)

41452-MT3-610

$7.43

15

SHIM D, PINION GEAR (1.41)

41453-MT3-610

$7.43

15

SHIM E, PINION GEAR (1.44)

41454-MT3-610

$7.43

15

SHIM F, PINION GEAR (1.47)

41455-MT3-610

$7.43

15

SHIM G, PINION GEAR (1.50)

41456-MT3-610

$7.43

15

SHIM H, PINION GEAR (1.53)

41457-MT3-610

$7.43

15

SHIM I, PINION GEAR (1.56)

41458-MT3-610

$7.43

15

SHIM J, PINION GEAR (1.59)

41459-MT3-610

$7.43

15

SHIM K, PINION GEAR (1.62)

41460-MT3-610

$7.43

15

SHIM L, PINION GEAR (1.65)

41461-MT3-610

$7.43

15

SHIM M, PINION GEAR (1.68)

41462-MT3-610

$7.43

16

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

17

CAP, GEAR CASE OIL

41511-ME5-000

$10.61

18

SHIM A, RING GEAR (1.82)

41530-MT3-610

$22.69

18

SHIM B, RING GEAR (1.85)

41531-MT3-610

$23.72

18

SHIM C, RING GEAR (1.88)

41532-MT3-610

$22.69

18

SHIM D, RING GEAR (1.91)

41533-MT3-610

$22.69

18

SHIM E, RING GEAR (1.94)

41534-MT3-610

$23.72

18

SHIM F, RING GEAR (1.97)

41535-MT3-610

$22.69

18

SHIM G, RING GEAR (2.00)

41536-MT3-610

$23.72

18

SHIM H, RING GEAR (2.03)

41537-MT3-610

$22.69

18

SHIM I, RING GEAR (2.06)

41538-MT3-610

$23.72

18

SHIM J, RING GEAR (2.09)

41539-MT3-610

$22.69

18

SHIM K, RING GEAR (2.12)

41540-MT3-610

$23.72

18

SHIM L, RING GEAR (2.15)

41541-MT3-610

$22.69

18

SHIM M, RING GEAR (2.18)

41542-MT3-610

$22.69

18

SHIM N, RING GEAR (2.21)

41543-MT3-610

$22.69

18

SHIM O, RING GEAR (2.24)

41544-MT3-610

$22.69

18

SHIM P, RING GEAR (2.27)

41545-MT3-610

$22.69

18

SHIM Q, RING GEAR (2.30)

41546-MT3-610

$22.69

19

COLLAR, RR. DISTANCE (B)

42625-MT3-000

$23.82

20

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

21

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

22

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

23

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

24

NUT, HEX. (16MM)

90381-MT3-000

$7.95

25

BEARING, RADIAL BALL (65X100X11) (TOYO)

91051-MN5-003

$105.77

26

BEARING, RADIAL BALL (35X62X18) (TOYO)

91052-MN5-003

$59.26

27

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$67.87

28

BEARING, NEEDLE (20X35X18)

91062-MG9-013

Unavailable

29

OIL SEAL (35X54X8) (NOK)

91261-MY3-003

$14.30

30

OIL SEAL (39X56X7) (NOK)

91262-MY3-003

$13.47

31

OIL SEAL (65X85X7) (NOK)

91265-MY3-003

$16.85

32

O-RING (30.8MM)

91302-001-020

$3.75

33

O-RING (39.5X2.4) (ARAI) This part replaces 91356-MG9-004.

91356-MG9-003

$3.08

33

O-RING (39.5X2.4) (ARAI)

91356-MG9-003

$3.08

34

O-RING (64.5X3.5) (ARAI) This part replaces 91359-MG9-004.

91359-MG9-003

$4.53

34

O-RING (64.5X3.5)

91359-MG9-003

$4.53

35

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

36

BOLT, STUD (10X32)

92900-10032-0E

$3.67

37

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49
